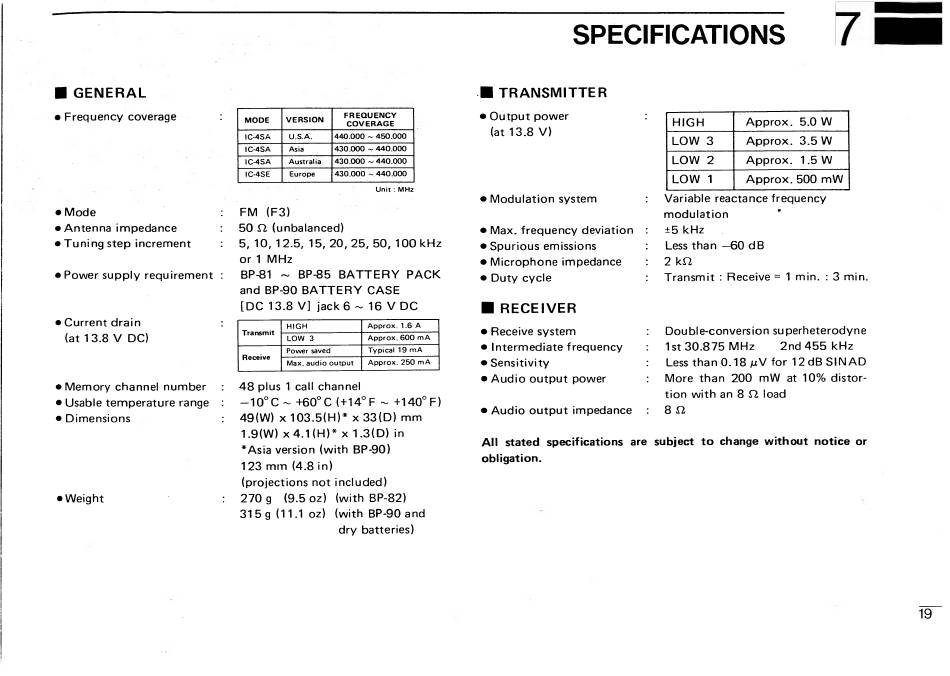

Specifications - Icom IC-4SA: IC-4SE: Instruction Manual

E GENERAL
e Frequency coverage
e Mode
e Antenna impedance
e Tuning step increment
e Power supply requirement :
e Current drain
(at 13.8 V DC)
e Memory channel number
e Usable temperature range
e Dimensions
e Weight
] ` i Unit : MHz
FREQUENCY
FM (F3).
50 Q (unbalanced)
5, 10, 12.5, 15, 20, 25, 50, 100 kHz
or 1 MHz
BP-81 ~ BP-85 BATTERY PACK
and BP-90 BATTERY CASE
[DC 13.8 V] jack 6 ~ 16 V DC
T . HIGH Approx. 1.6 A
t
rans LOW 3 Approx. 600 mA
| Typical 19 mA
Receive
48 plus 1 call channel
—10°C ~ 460^ C (414? F ~ +140°F)
49(W) x 103.5(H)* x 33(D) mm
1.9(W) x 4.1(H)* x 1.3(D) in
* Asia version (with BP-90)
123 mm (4.8 in)
(projections not included)
270g (9.50z) (with BP-82)
315 g (11.1 oz) (with BP-90 and
dry batteries)
SPECIFICATIONS
MI TRANSMITTER
e Output power
(at 13.8 V)
e Modulation system
e Max. frequency deviation
e Spurious emissions
e Microphone impedance
e Duty cycle
E RECEIVER
e Receive system
e Intermediate frequency
e Sensitivity
e Audio output power
e Audio output impedance
Variable reactance frequency
modulation °
+5 kHz
Less than —60 dB
2 kQ
Transmit : Receive = 1 min. : 3 min.
Double-conversion superheterodyne
1st 30.875 MHz 2nd 455 kHz
Less than 0.18 uV for 12 dB SINAD
More than 200 mW at 10% distor-
tion with an 8 $2 load
8 Q
All stated specifications are subject to change without notice or
obligation.
