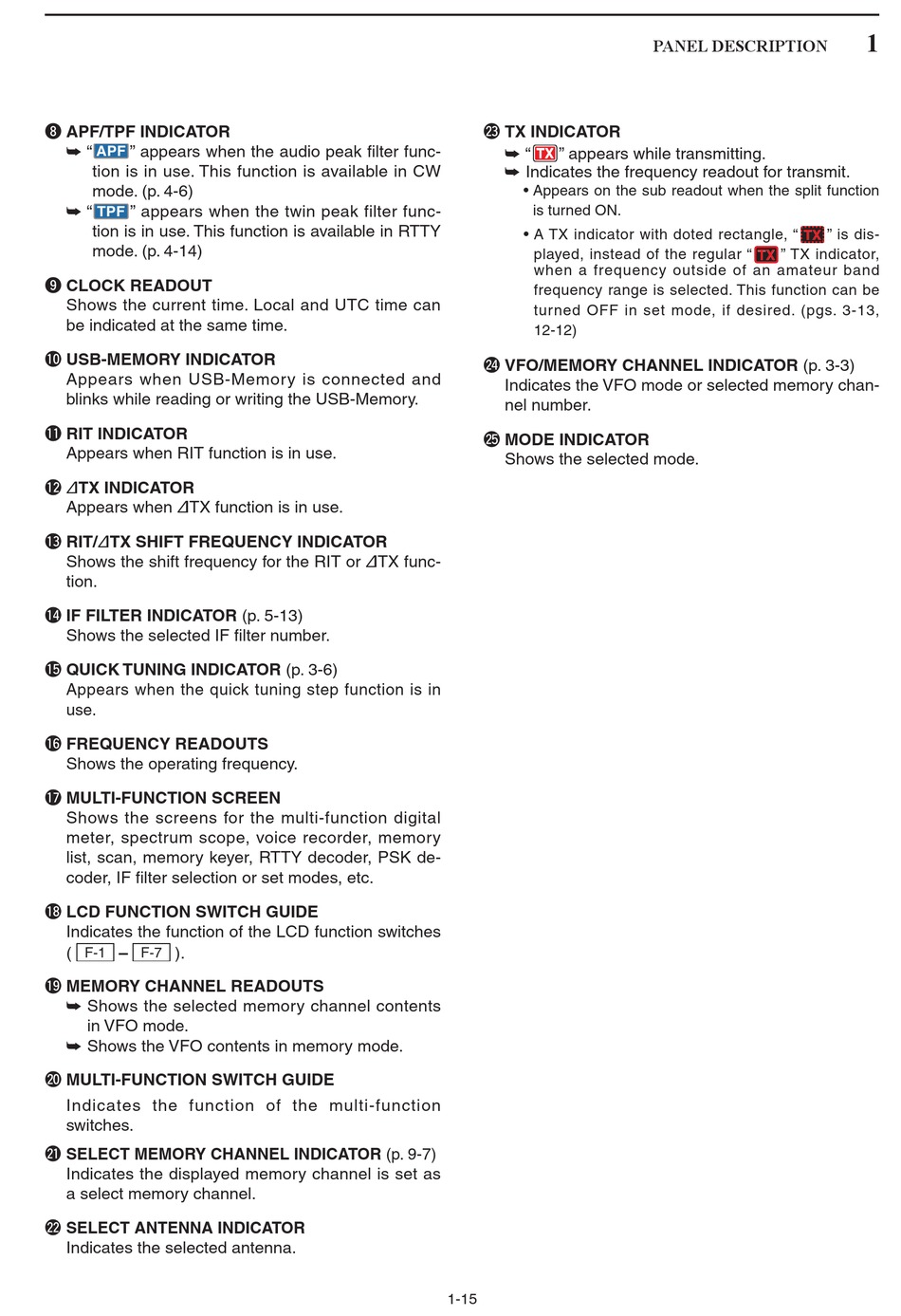

Icom IC-7700 Instruction Manual page 25

i APF/TPF INDICATOR
➥ " APF " appears when the audio peak filter func-
tion is in use. This function is available in CW
mode. (p. 4-6)
➥ " " appears when the twin peak filter func-
TPF
tion is in use. This function is available in RTTY
mode. (p. 4-14)
o CLOCK READOUT
Shows the current time. Local and UTC time can
be indicated at the same time.
!0 USB-MEMORY INDICATOR
Appears when USB-Memory is connected and
blinks while reading or writing the USB-Memory.
!1 RIT INDICATOR
Appears when RIT function is in use.
!2 ∂TX INDICATOR
Appears when ∂TX function is in use.
!3 RIT/∂TX SHIFT FREQUENCY INDICATOR
Shows the shift frequency for the RIT or ∂TX func-
tion.
!4 IF FILTER INDICATOR (p. 5-13)
Shows the selected IF filter number.
!5 QUICK TUNING INDICATOR (p. 3-6)
Appears when the quick tuning step function is in
use.
!6 FREQUENCY READOUTS
Shows the operating frequency.
!7 MULTI-FUNCTION SCREEN
Shows the screens for the multi-function digital
meter, spectrum scope, voice recorder, memory
list, scan, memory keyer, RTTY decoder, PSK de-
coder, IF filter selection or set modes, etc.
!8 LCD FUNCTION SWITCH GUIDE
Indicates the function of the LCD function switches
–
( ).
F-1 F-7
!9 MEMORY CHANNEL READOUTS
➥ Shows the selected memory channel contents
in VFO mode.
➥ Shows the VFO contents in memory mode.
@0 MULTI-FUNCTION SWITCH GUIDE
Indicates the function of the multi-function
switches.
@1 SELECT MEMORY CHANNEL INDICATOR (p. 9-7)
Indicates the displayed memory channel is set as
a select memory channel.
@2 SELECT ANTENNA INDICATOR
Indicates the selected antenna.
@3 TX INDICATOR
➥ " " appears while transmitting.
TX
➥ Indicates the frequency readout for transmit.
• Appears on the sub readout when the split function
is turned ON.
• A TX indicator with doted rectangle, "
played, instead of the regular "
when a frequency outside of an amateur band
frequency range is selected. This function can be
turned OFF in set mode, if desired. (pgs. 3-13,
12-12)
@4 VFO/MEMORY CHANNEL INDICATOR (p. 3-3)
Indicates the VFO mode or selected memory chan-
nel number.
@5 MODE INDICATOR
Shows the selected mode.
1-15
PANEL DESCRIPTION
TX
" TX indicator,
TX
1
" is dis-
