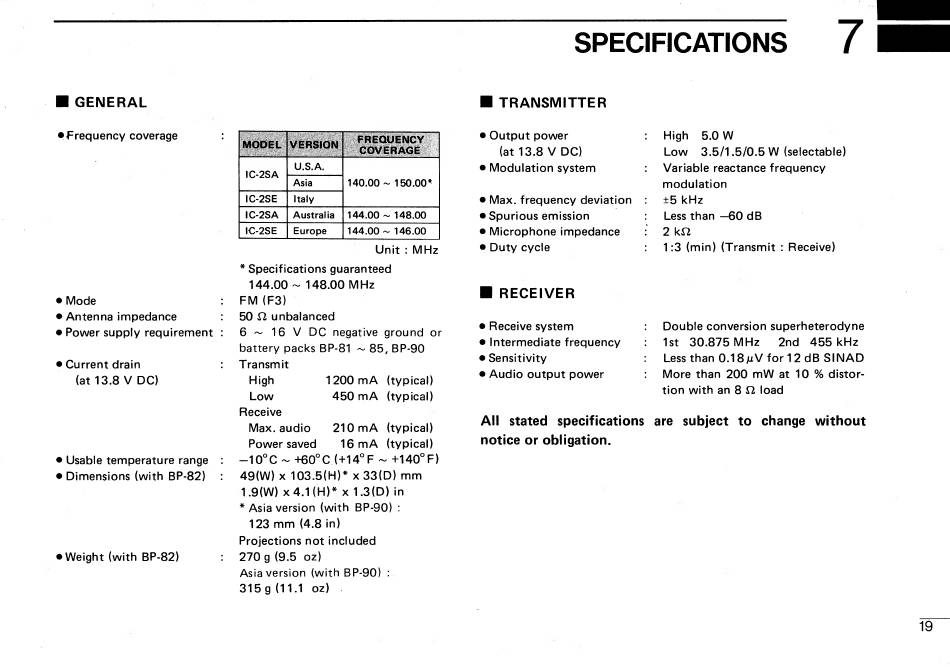

SPECIFICATIONS /
WEE GENERAL M@ TRANSMITTER
e@ Frequency coverage
@ Mode
@ Antenna impedance
@ Power supply requirement :
© Current drain
(at 13.8 V DC)
@ Usable temperature range
® Dimensions (with BP-82)
® Weight (with BP-82)
U.S.A.
Ic-28A
140.00 ~ 150.00*
IC-2SA 144.00 ~ 148.00
IC-2SE | Europe | 144.00 ~ 146.00
Unit : MHz
* Specifications guaranteed
144.00 ~ 148.00 MHz
FM (F3)
50 2 unbalanced
6 ~ 16 V DC negative ground or
battery packs BP-81 ~ 85, BP-90
Transmit
High 1200 mA (typical)
Low 450 mA (typical)
Receive
Max.audio 210mA (typical)
Power saved 16 mA (typical)
—10°C ~ +60°C (+14°F ~ +140°F)
49(W) x 103.5(H)* x 33(D) mm
1.9(W) x 4.1(H)* x 1.3(D) in
* Asia version (with BP-90) :
123 mm (4.8 in)
Projections not included
270 g (9.5 oz)
Asia version (with BP-90) :.
315g (11.1 02)
e Output power
(at 13.8 V DC)
@ Modulation system
@ Max. frequency deviation
® Spurious emission .
@ Microphone tmpedance
® Duty cycle
M@ RECEIVER
e Receive system
@ Intermediate frequency
@ Sensitivity
® Audio output power
High 5.0W
Low 3.5/1.5/0.5 W (selectable)
Variable reactance frequency
modulation
+5 kHz
Less than —60 dB
2 kQ
1:3 (min) (Transmit : Receive)
Double conversion superheterodyne
Ist 30.875 MHz 2nd 455 kHz
Less than 0.18 uV for 12 dB SINAD
More than 200 mW at 10 % distor-
tion with an 8 Q load
All stated specifications are subject to change without
notice or obligation.
