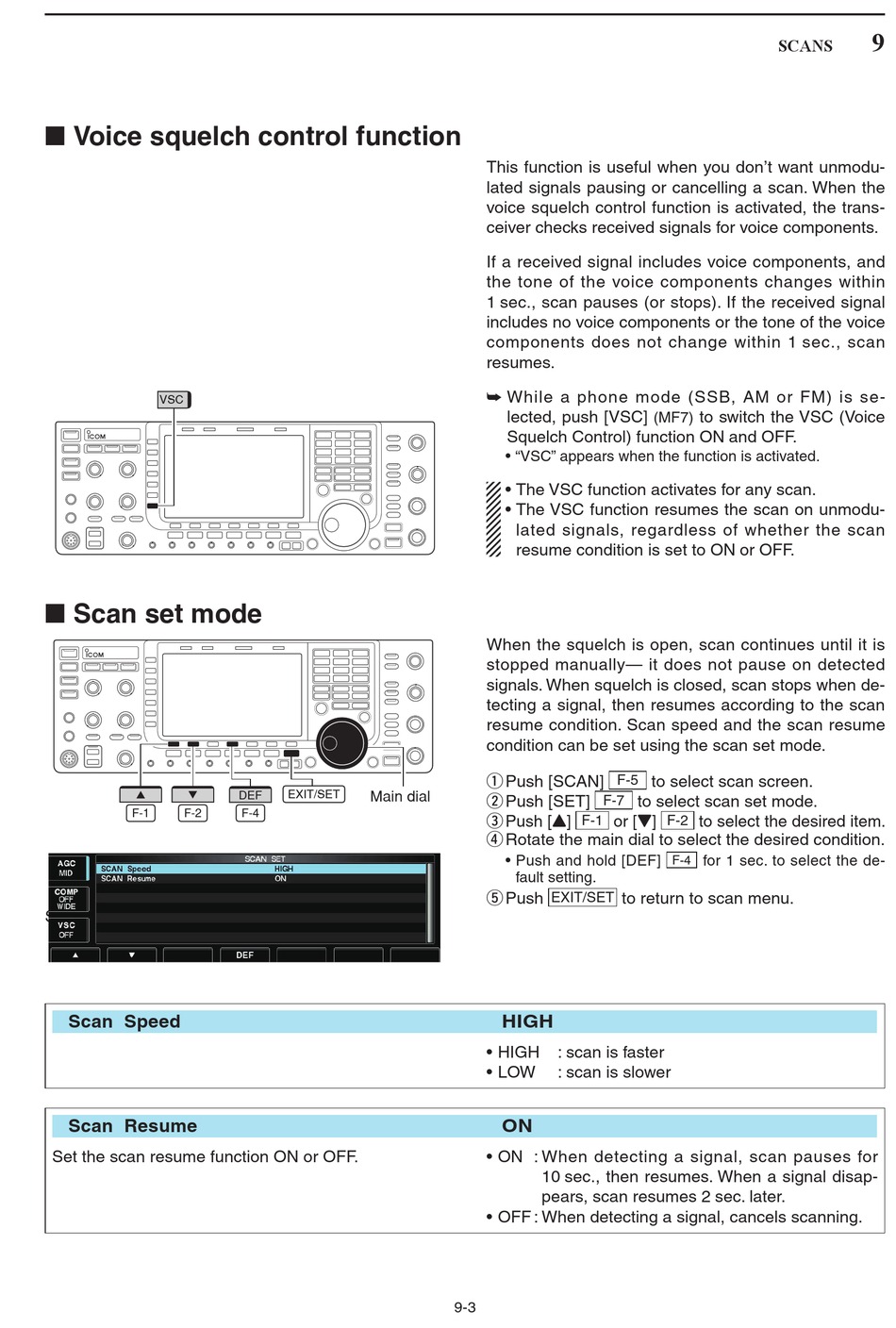

■ Voice squelch control function

VSC

■ Scan set mode

∫ √
F-1 F-2
Select the desired scan speed from high and low.
Scan Speed
Scan Resume
Set the scan resume function ON or OFF.
EXIT/SET Main dial
DEF
F-4
This function is useful when you don't want unmodu-
lated signals pausing or cancelling a scan. When the
voice squelch control function is activated, the trans-
ceiver checks received signals for voice components.
If a received signal includes voice components, and
the tone of the voice components changes within
1 sec., scan pauses (or stops). If the received signal
includes no voice components or the tone of the voice
components does not change within 1 sec., scan
resumes.
➥ While a phone mode (SSB, AM or FM) is se-
lected, push [VSC]
Squelch Control) function ON and OFF.
• "VSC" appears when the function is activated.
• The VSC function activates for any scan.
• The VSC function resumes the scan on unmodu-
lated signals, regardless of whether the scan
resume condition is set to ON or OFF.
When the squelch is open, scan continues until it is
stopped manually— it does not pause on detected
signals. When squelch is closed, scan stops when de-
tecting a signal, then resumes according to the scan
resume condition. Scan speed and the scan resume
condition can be set using the scan set mode.
q Push [SCAN]
F-5
w Push [SET]
F-7
e Push [Y] F-1 or [Z]
r Rotate the main dial to select the desired condition.
• Push and hold [DEF]
fault setting.
t Push to return to scan menu.
EXIT/SET
HIGH
• HIGH : scan is faster
• LOW : scan is slower
ON
• ON : When detecting a signal, scan pauses for
10 sec., then resumes. When a signal disap-
pears, scan resumes 2 sec. later.
• OFF : When detecting a signal, cancels scanning.
9-3
SCANS
to switch the VSC (Voice
(MF7)
to select scan screen.
to select scan set mode.
F-2 to select the desired item.
for 1 sec. to select the de-
F-4
9
