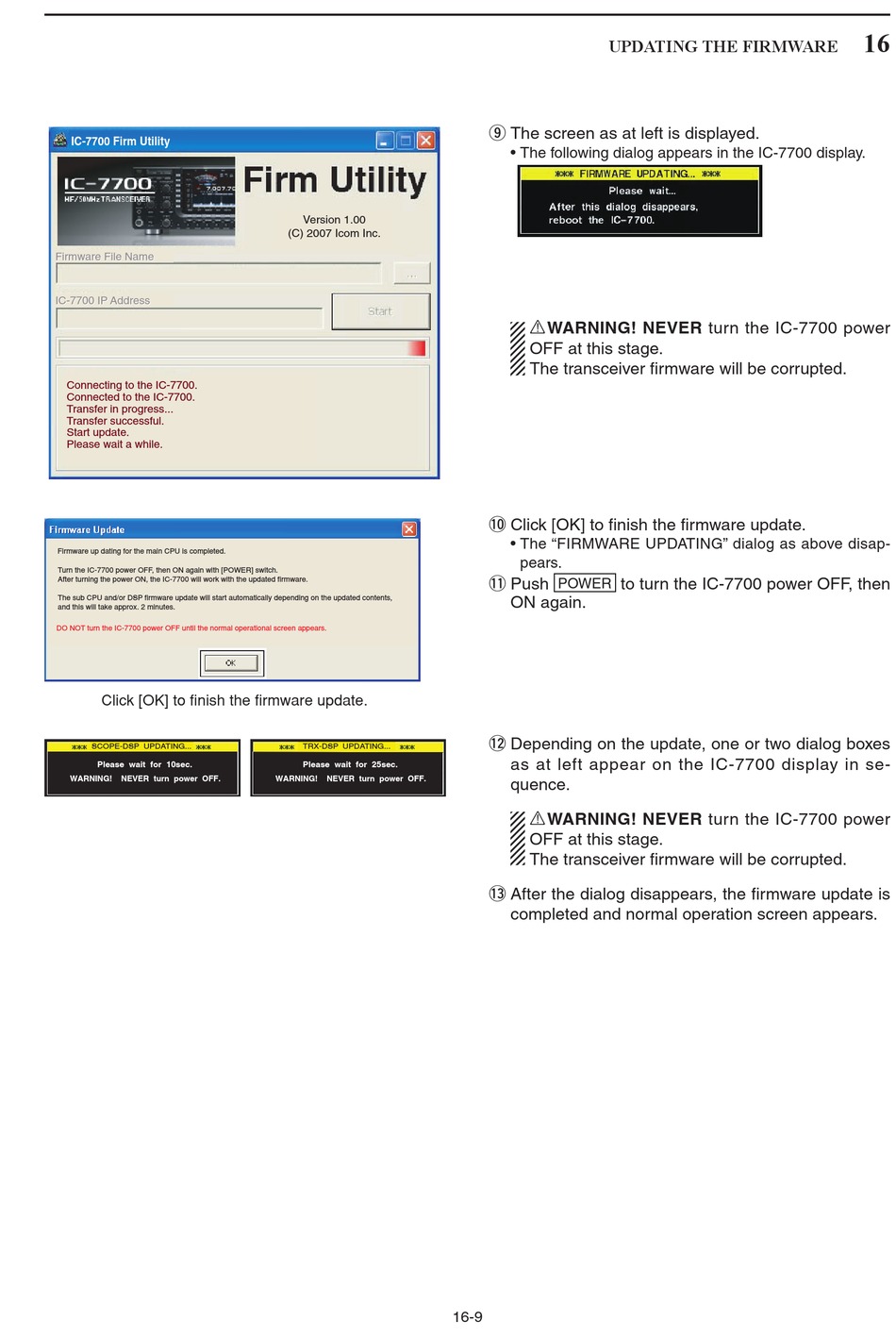

Icom IC-7700 Instruction Manual page 213

IC-7700 Firm Utility
Firmware File Name
Firmware File Name
IC-7700 IP Address
IC-7700 IP Address
Connecting to the IC-7700.
Connected to the IC-7700.
Transfer in progress...
Transfer successful.
Start update.
Please wait a while.
Firmware up dating for the main CPU is completed.
Turn the IC-7700 power OFF, then ON again with [POWER] switch.
After turning the power ON, the IC-7700 will work with the updated firmware.
The sub CPU and/or DSP firmware update will start automatically depending on the updated contents,
and this will take approx. 2 minutes.
DO NOT turn the IC-7700 power OFF until the normal operational screen appears.
Click [OK] to finish the firmware update.
SCOPE-DSP UPDATING...
Please wait for 10sec.
WARNING! NEVER turn power OFF.
Version 1.00
(C) 2007 Icom Inc.
TRX-DSP UPDATING...
Please wait for 25sec.
WARNING! NEVER turn power OFF.
UPDATING THE FIRMWARE
o The screen as at left is displayed.
• The following dialog appears in the IC-7700 display.
RWARNING! NEVER turn the IC-7700 power
OFF at this stage.
The transceiver firmware will be corrupted.
!0 Click [OK] to finish the firmware update.
• The "FIRMWARE UPDATING" dialog as above disap-
pears.
!1 Push to turn the IC-7700 power OFF, then
POWER
ON again.
!2 Depending on the update, one or two dialog boxes
as at left appear on the IC-7700 display in se-
quence.
RWARNING! NEVER turn the IC-7700 power
OFF at this stage.
The transceiver firmware will be corrupted.
!3 After the dialog disappears, the firmware update is
completed and normal operation screen appears.
16-9
16
