Power Switch/LED Assembly

1. Prepare the computer for disassembly
2. Remove the access panel
3. Lay the computer on its side with the front facing toward you.
4.
Remove the front bezel
5.
Remove the optical drive
6.
Remove the hard drive
7.
Disconnect the cable from the black system board connector.
8. Remove the cable from the clips under the hard drive cage.
Figure 6-33
(Preparation for Disassembly on page
(Access Panel on page
(Front Bezel on page
(Removing an Optical Drive on page
(Removing the Hard Drive on page

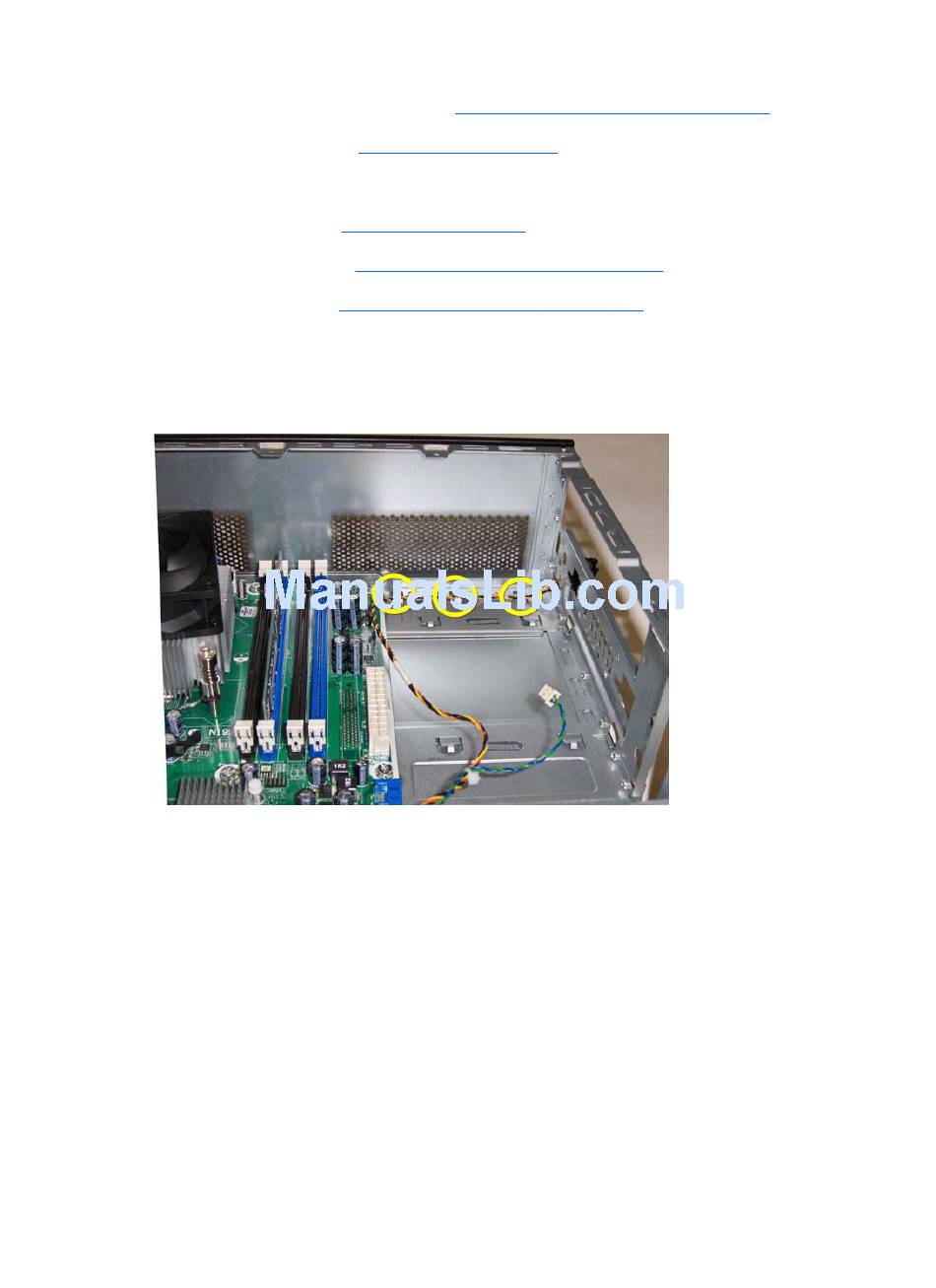

Removing the power switch cable
43).
44).
68).
114).
Power Switch/LED Assembly
42).
