6.
Press the tab (1) on the left side of the button assembly, rotate the assembly from left to right (2),
and then pull the assembly from the chassis while threading the wire through the hole in the
chassis.

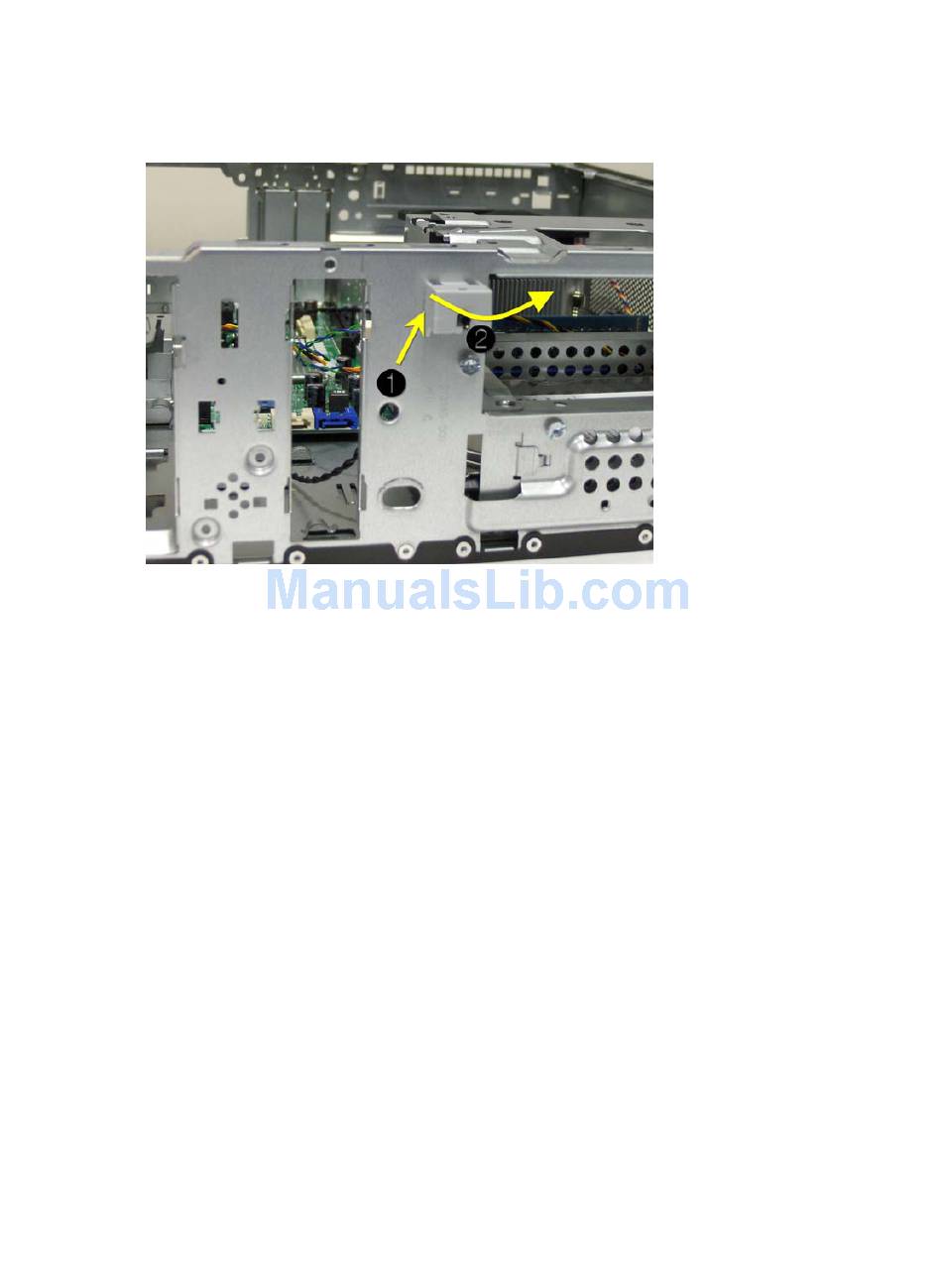

Figure 6-18
To install the optical drive eject button, reverse the removal procedures.
108
Chapter 6 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
Removing the optical drive eject button
