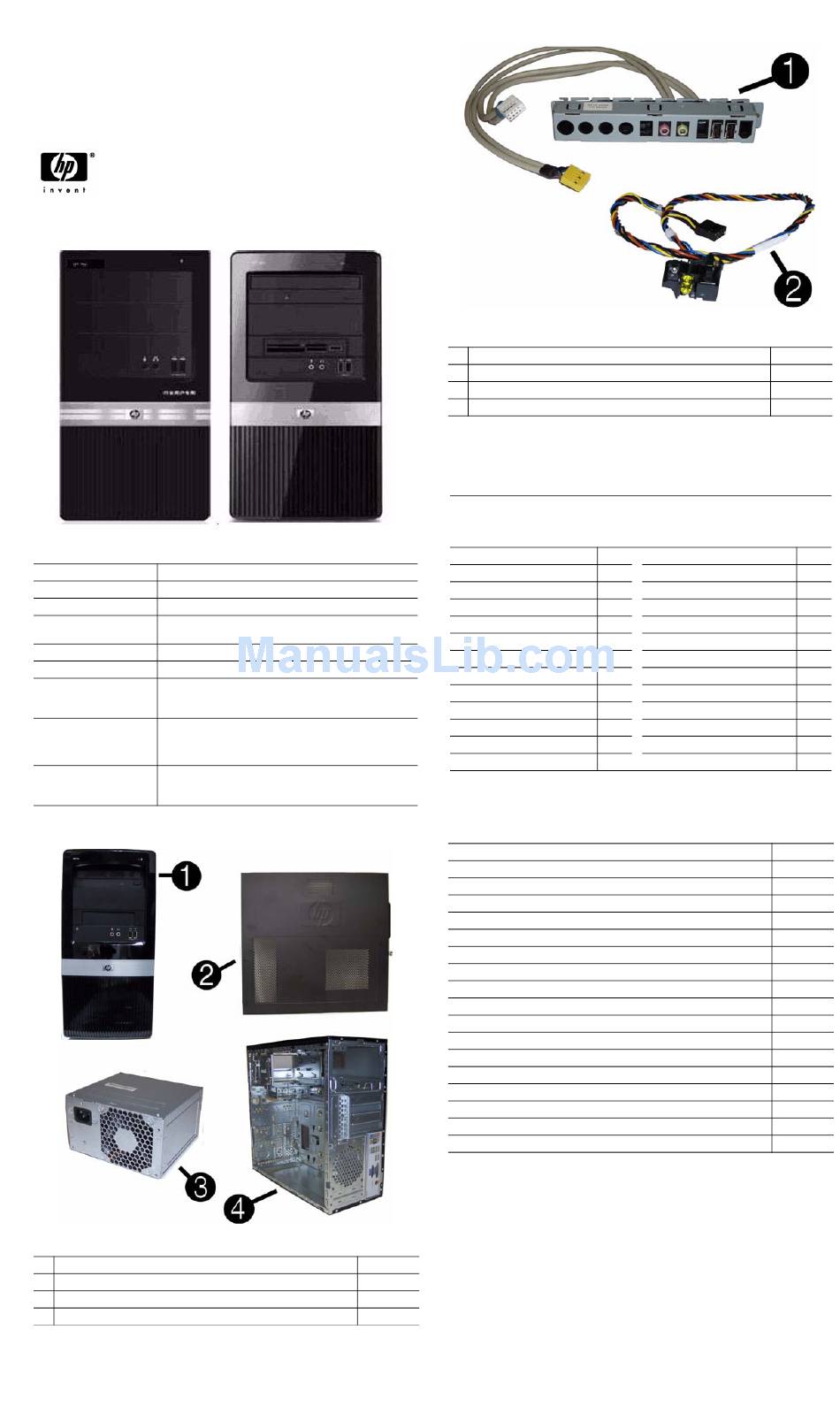

Illustrated Parts & Service Map
HP Pro 3120 Business PC

Minitower Chassis

©
2010 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Pentium,
Intel Inside, and the Intel logo are trademarks or registered trademarks of the
Intel Corporation and its subsidiaries in the U. S. and other countries.
Document Number 621938-001.
Key Specifications
Processor Type
Intel® Celeron, Pentium, Core™ 2 Duo, Core 2 Quad
RAM Type
DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz) non-ECC
Maximum RAM Supported
8 GB
Expansion Slots
Graphics Adapter
Integrated Intel Graphics Media Accelerator X4500HD
Chipset
Intel G43 Express
Drive Support
I/O Interfaces
Front: (2) USB 2.0 ports, microphone, headphone
Rear: (4) USB, (1) VGA, (1) DVI, (1) RJ-45 Ethernet, (1)
SPDIF Out, (1) audio in, (1) audio out, (1) microphone, (1) sur-
round rear, (1) surround side, (1) surround center/sub
Operating Systems

Spare Parts

System Unit
1
Front bezel
2
Access panel
3
Power supply, 300W, PFC
4
Chassis
HP Pro 3120 Illustrated Parts & Service Map, MT chassis
1st Edition May 2010.
(3) PCIe x1
(1) PCIe x16
(2) external 5.25-inch
(1) external 3.5-inch
(2) internal 3.5-inch
Windows 7
Windows XP Professional
FreeDOS
Cables
1
Front I/O assembly
2
Power switch/LED with holder
*
SATA optical drive cable with latch, 9.5 inch (240 mm)
*
SATA hard drive cable with latch, 6.5 inch (165 mm)
*Not shown
Keyboards (not illustrated)
PS/2
USB, Standard
USB SmartCard
USB, low cost
Arabic[c]
Belgian
BHCSY[a]
BHCSY[b]
Bulgaria[b]
Czech[b]
Danish[b]
Finnish
French
French Arabic
German
Greek
Hebrew
[a] 537747-xxx only
[b] not for 537747-xxx
Mass Storage Devices (not illustrated)
Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
DVD-ROM drive
2 TB hard drive, 7200 rpm
1.5 TB hard drive, 7200 rpm
1.5 TB hard drive, 5400 rpm
1 TB hard drive, 7200 rpm
750 GB hard drive, 7200 rpm
640 GB hard drive, 7200 rpm
500 GB hard drive, 7200 rpm
320 GB hard drive, 7200 rpm
320 GB hard drive, 5400 rpm
250 GB hard drive, 7200 rpm
250 GB hard drive, 5400 rpm
250 GB USB hard drive
160 GB hard drive, 7200 rpm
160 GB hard drive, 5400 rpm
Hard drive conversion bracket
614499-001
586372-001
592502-001
not spared
621938-001
537745-xxx
537746-xxx
537747-xxx
537924-xxx
-171
Hungarian
-181
International English
-BL1
Italian
-B41
Norwegian
-261
Portuguese
-221
Romanian[b]
-081
Russian[d]
-351
Slovakian
-051
Spanish
-DE1
Swedish
-041
Swiss
-151
Turkish
-BB1
U.K.
[c] 537924-xxx only
[d] not for 537746-xxx
508463-001
614496-001
614498-001
448670-001
-211
-L31
-061
-091
-131
-271
-251
-231
-071
-101
-111
-141
-031
581601-001
581600-001
581599-001
616608-001
613209-001
613203-001
613202-001
613205-001
613204-001
613208-001
613207-001
586969-001
613206-001
586719-001
586383-001
613201-001
419102-001
397117-001
