Configuring the UDS Using Telnet or the Serial Port

Using the Serial Port

For local configuration, you can connect a terminal or a PC running a terminal
emulation program to the unit's serial port (channel 1). Configure the terminal (or
emulation) for 9600 baud, 8-bit, no parity, 1 stop bit, and no flow control.
1. Cycle the unit's power (power off and back on). After power-up, the self-test
begins and the diagnostic and status LEDs start blinking.
2. Type three lowercase x characters (xxx) within one second after powering up
in order to start the configuration mode. The Setup Mode window displays. (See
the example in
Note:
your keyboard while powering up the unit.
3. Select an option on the menu by entering the number of the option at the Your
choice ? prompt and pressing Enter.
4. To enter a value for a parameter, type the value and press Enter, or to confirm a
default value, just press Enter.
5. When you are finished, save the new configuration (option 9). The unit reboots.

Server Configuration (Network Configuration)

Type 0 at the Your choice ? prompt and press Enter. Current values display in
parentheses. The rest of this section describes the configurable settings within the
Server configuration menu.

IP Address

The IP address must be set to a unique value in your network. If the IP address has
not been assigned by DHCP, enter it manually. Enter each octet, pressing Enter after
each.
Using a Telnet
The easiest way to enter Setup Mode is to hold down the x key on

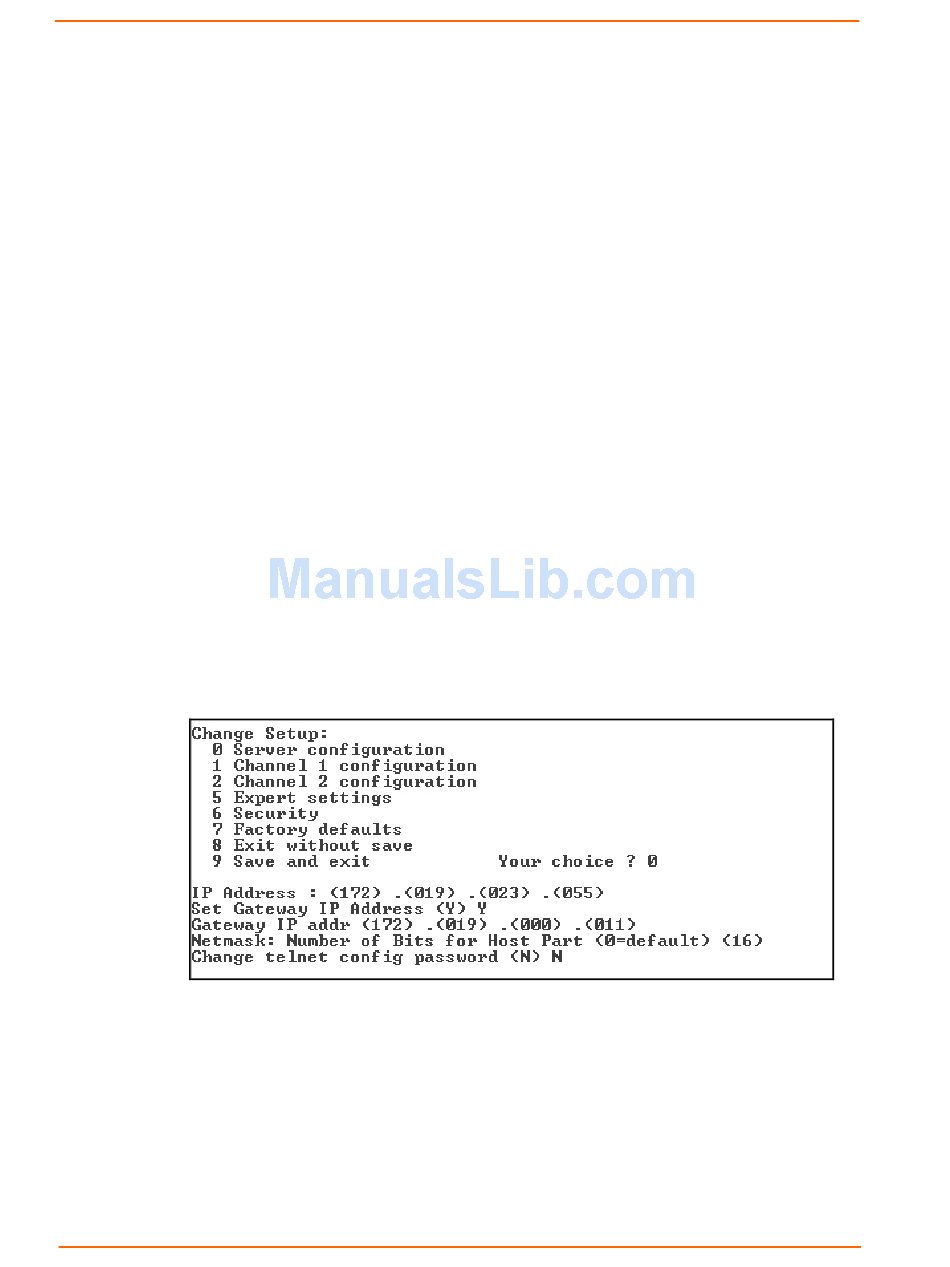

Figure 5-3. Network Configuration

22
Connection.)
