Connecting the Cables to the MCU

>> Connect the RealPresence Collaboration Server 800s system server to the network:
Modifying the Factory Default Management Network Settings on the USB
Memory Stick
The USB memory stick contains a text file, lan.cfg, which holds the factory default IP address
parameters. These parameters must be modified to your local network settings using the
LAN Configuration Utility, also available on the USB memory stick.
To modify the USB memory stick settings:
1
Polycom, Inc.

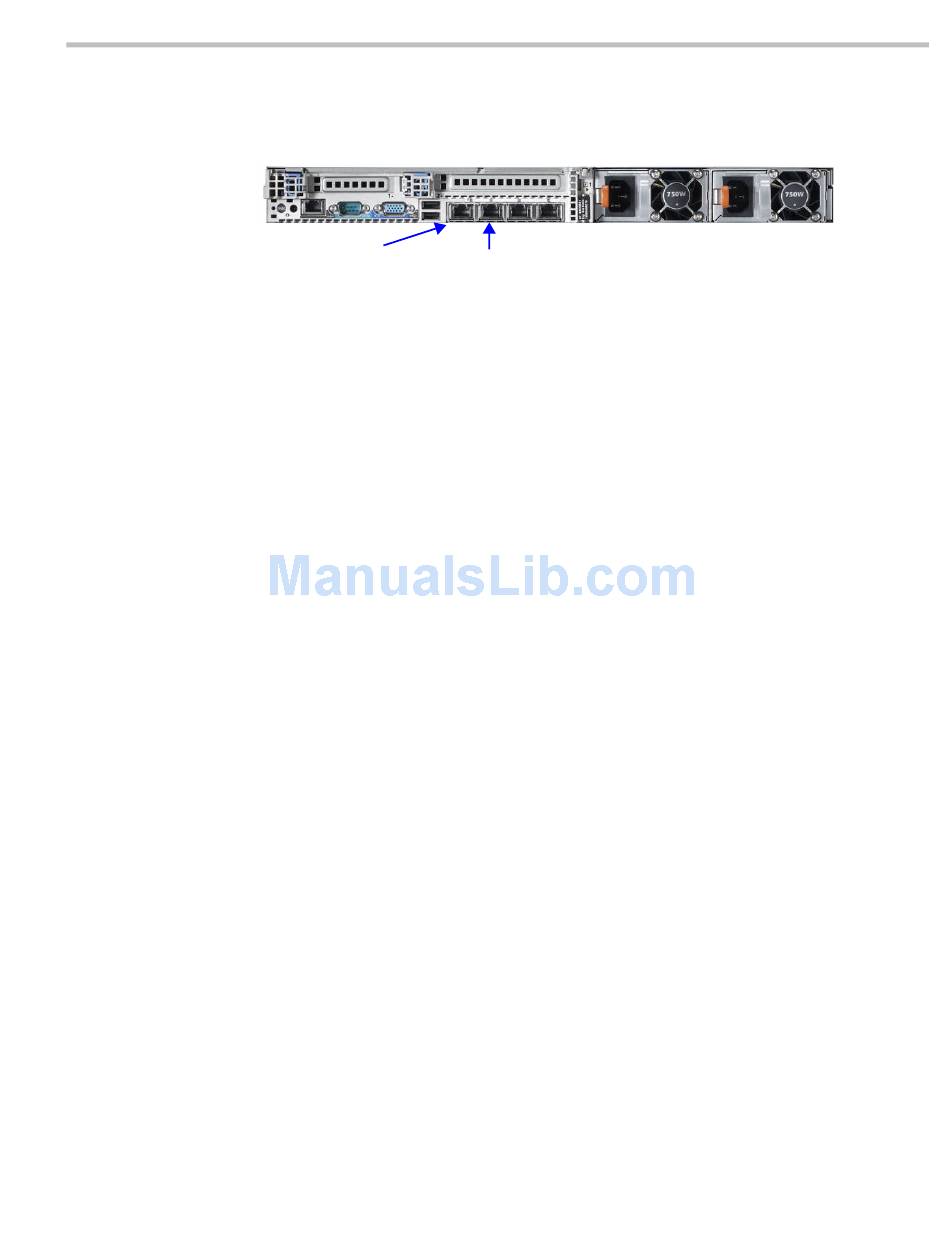

LAN port for
Management eth0
(
Connect a LAN cable between the leftmost Ethernet port and the enterprise
a
network. This is the eth0 Management Network interface, which must be used for
this purpose.
Connect the second LAN cable between the second Ethernet port to the network to
b
be used for signaling and media traffic. This is the eth1 network interface, which
must be used for this purpose.
When LAN redundancy is enabled, LAN 1 is used for both management, media and
signaling network connection.Connect the media and signaling cable to LAN 2 port.
By default this port is used for signaling, but when LAN redundancy is enabled, LAN 2
is the backup of LAN 1 port.
Take the USB memory stick from the Installation Accessories kit and insert it into the PC
workstation.
The Polycom RealPresence Collaboration Server Documentation Library
window opens.
— Select Open Folder to view files using Windows Explorer.
LAN port for Signaling
and Media (eth1)
)
Chapter 2-First Time Installation and Configuration
& Initial Setup Tools
2-5
