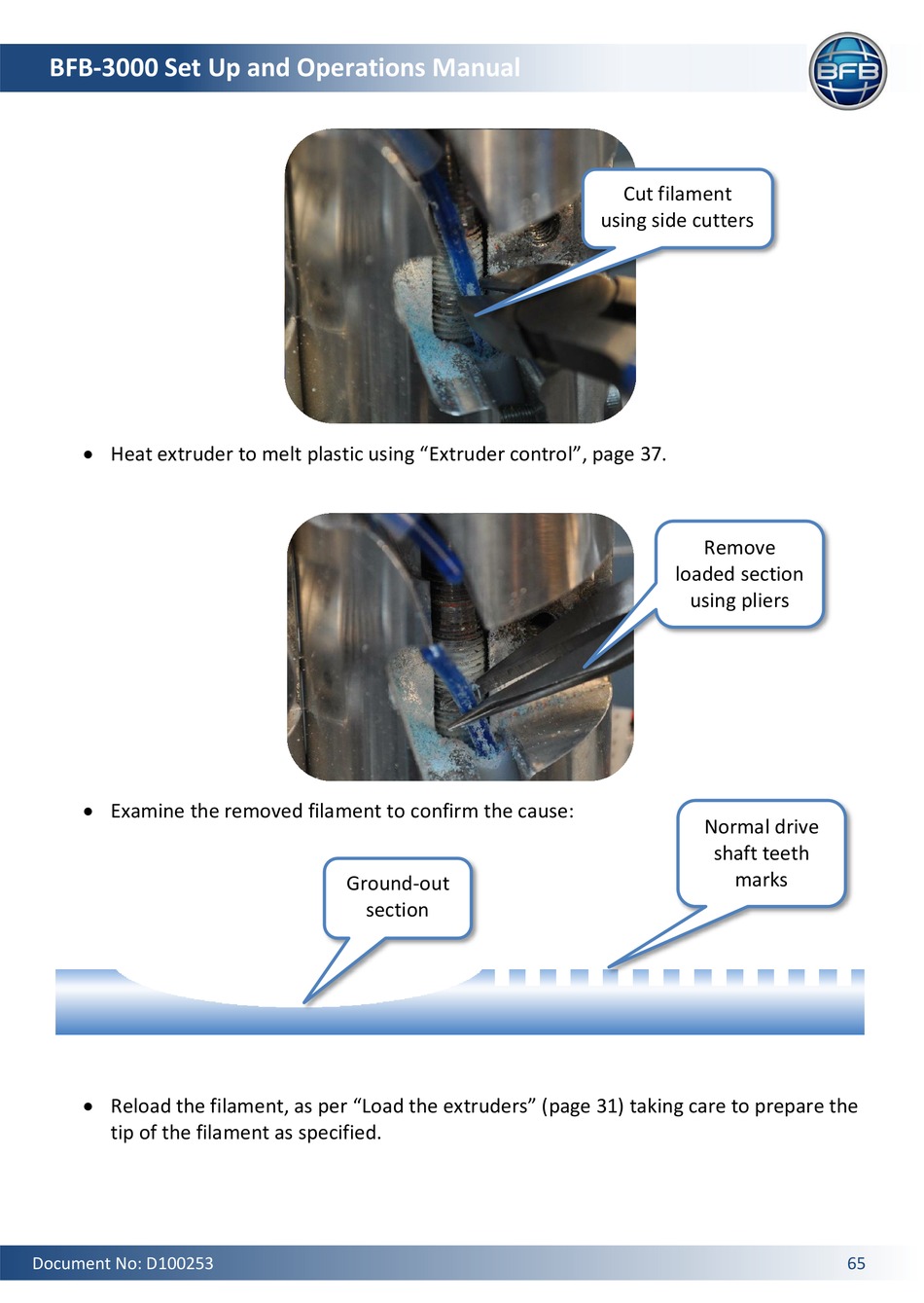

3D Systems BFB-3000 Manual page 65

BFB-3000 Set Up and Operations Manual
 Heat extruder to melt plastic using "Extruder control", page 37.
 Examine the removed filament to confirm the cause:
 Reload the filament, as per "Load the extruders" (page 31) taking care to prepare the
tip of the filament as specified.
Document No: D100253
Ground-out
section
Cut filament
using side cutters
Remove
loaded section
using pliers
Normal drive
shaft teeth
marks
65
