BFB-3000 Set Up and Operations Manual
 Press the X+ and X- buttons to automatically move the carriage around the corners of
the print bed (view on-screen instructions for more movement options).
 During each movement along the side of the bed, observe from the side of the
machine any change in distance between the bed and extruder's hot-end as it moves
along.
Document No: D100253

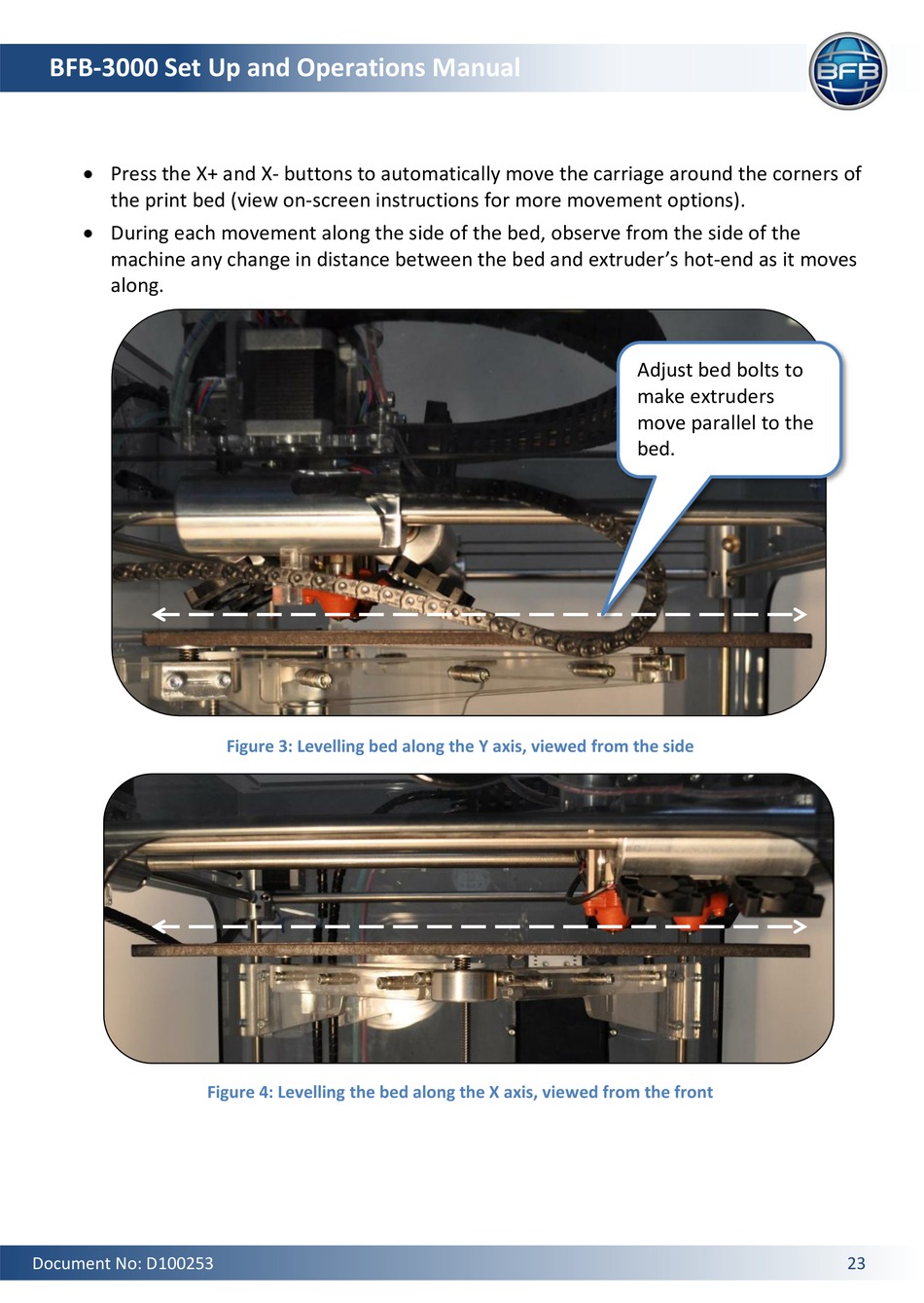

Figure 3: Levelling bed along the Y axis, viewed from the side
Figure 4: Levelling the bed along the X axis, viewed from the front
Adjust bed bolts to
make extruders
move parallel to the
bed.
23
