BFB-3000 Set Up and Operations Manual

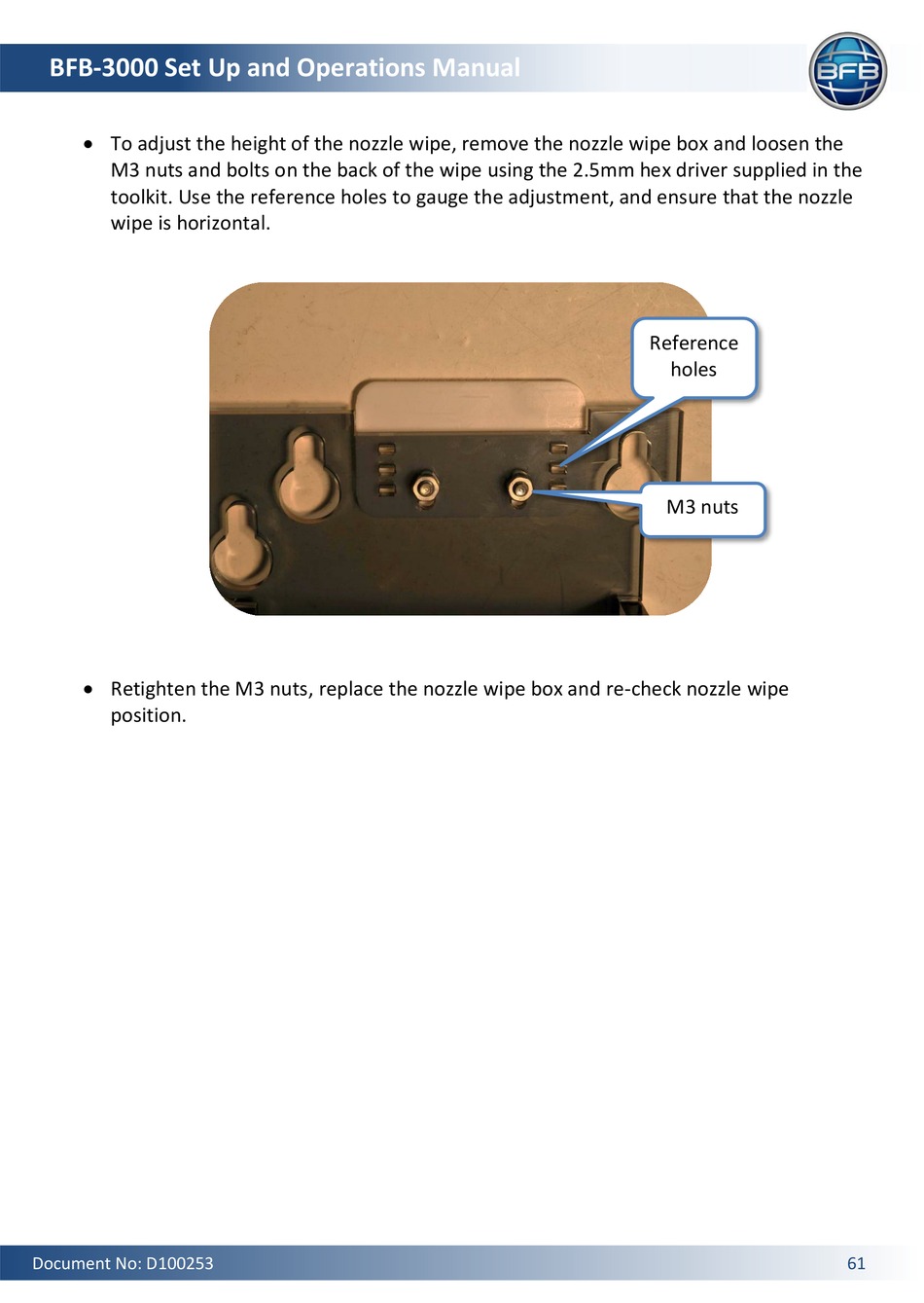

 To adjust the height of the nozzle wipe, remove the nozzle wipe box and loosen the
M3 nuts and bolts on the back of the wipe using the 2.5mm hex driver supplied in the
toolkit. Use the reference holes to gauge the adjustment, and ensure that the nozzle
wipe is horizontal.
 Retighten the M3 nuts, replace the nozzle wipe box and re-check nozzle wipe
position.
Document No: D100253
Reference
holes
M3 nuts
