BFB-3000 Set Up and Operations Manual
6.4

Power up

 Connect the power supply from the control panel into the power socket shown in
Figure 1. Turn the supply on. Turn the control box on using the power switch shown
in Figure 1.
+Z, -Z, Escape buttons
Power
socket
Button Screen Navigation
+Y
-Y
+X
Esc
+Z
-Z
Document No: D100253
Screen

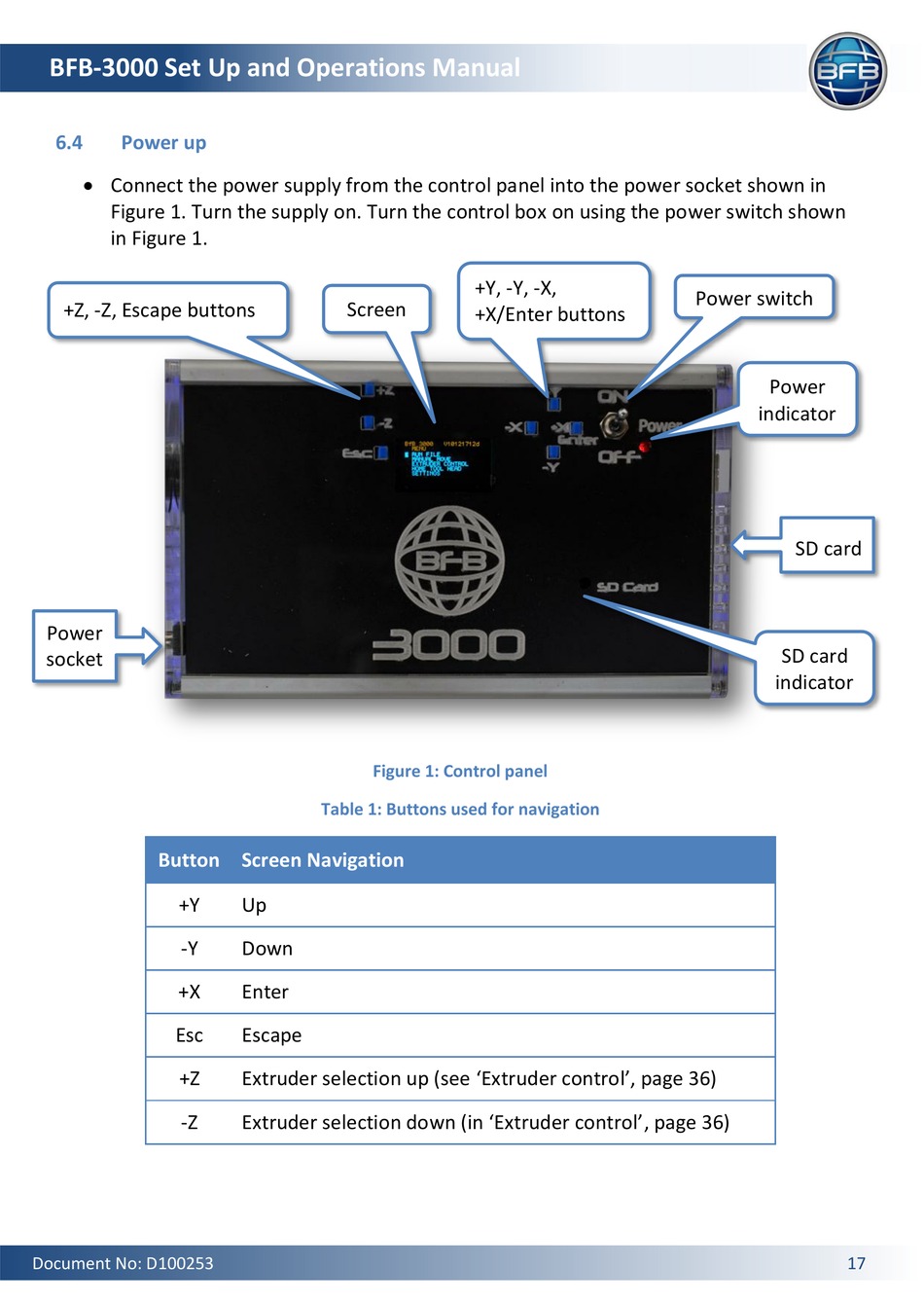

Figure 1: Control panel
Table 1: Buttons used for navigation
Up
Down
Enter
Escape
Extruder selection up (see 'Extruder control', page 36)
Extruder selection down (in 'Extruder control', page 36)
+Y, -Y, -X,
+X/Enter buttons
buttons
Power switch
Power
indicator
SD card
SD card
indicator
17
