3D Systems BFB-3000 Manual page 24

BFB-3000 Set Up and Operations Manual

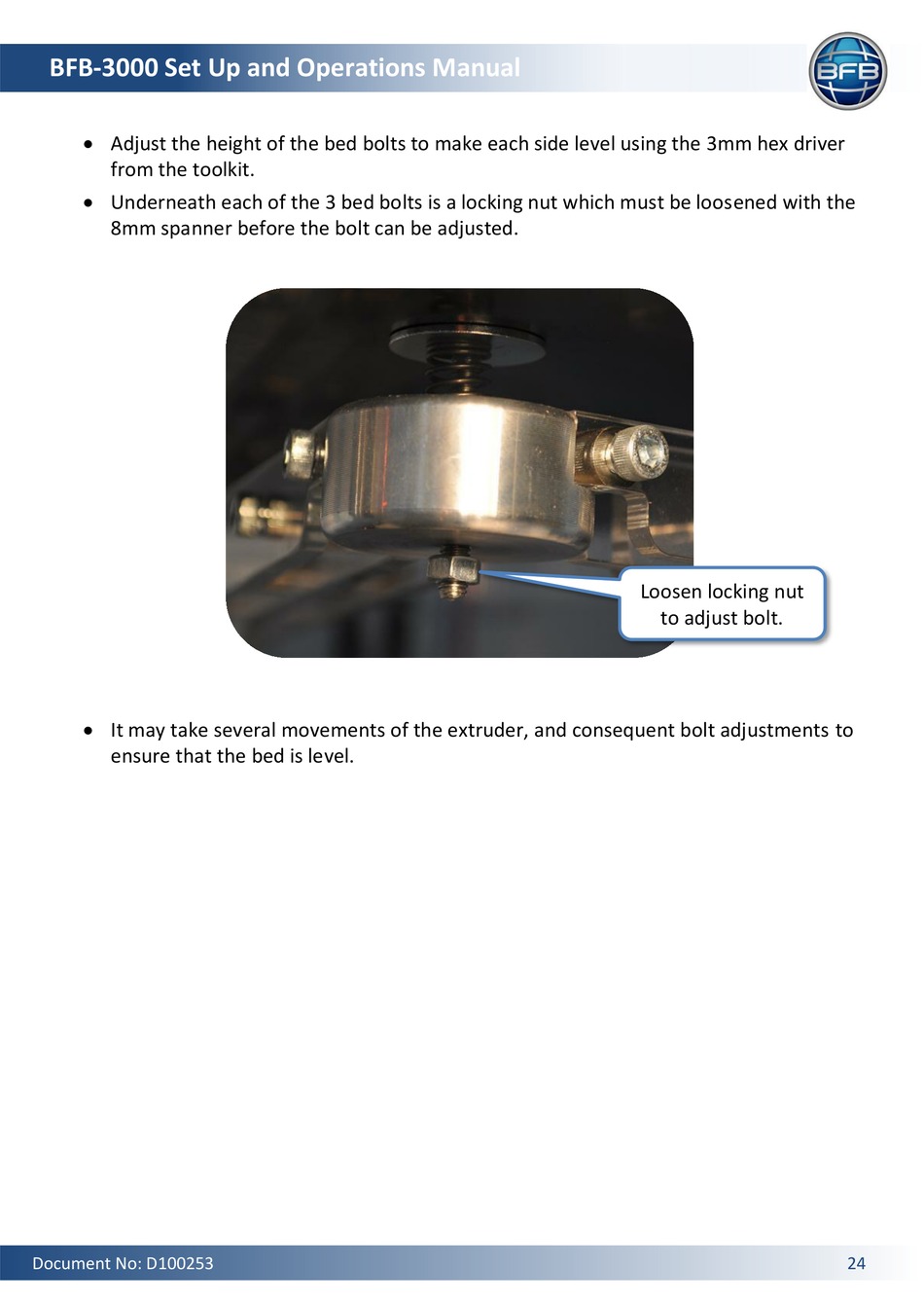

 Adjust the height of the bed bolts to make each side level using the 3mm hex driver
from the toolkit.
 Underneath each of the 3 bed bolts is a locking nut which must be loosened with the
8mm spanner before the bolt can be adjusted.
 It may take several movements of the extruder, and consequent bolt adjustments to
ensure that the bed is level.
Document No: D100253
Loosen locking nut
to adjust bolt.
24
