BFB-3000 Set Up and Operations Manual

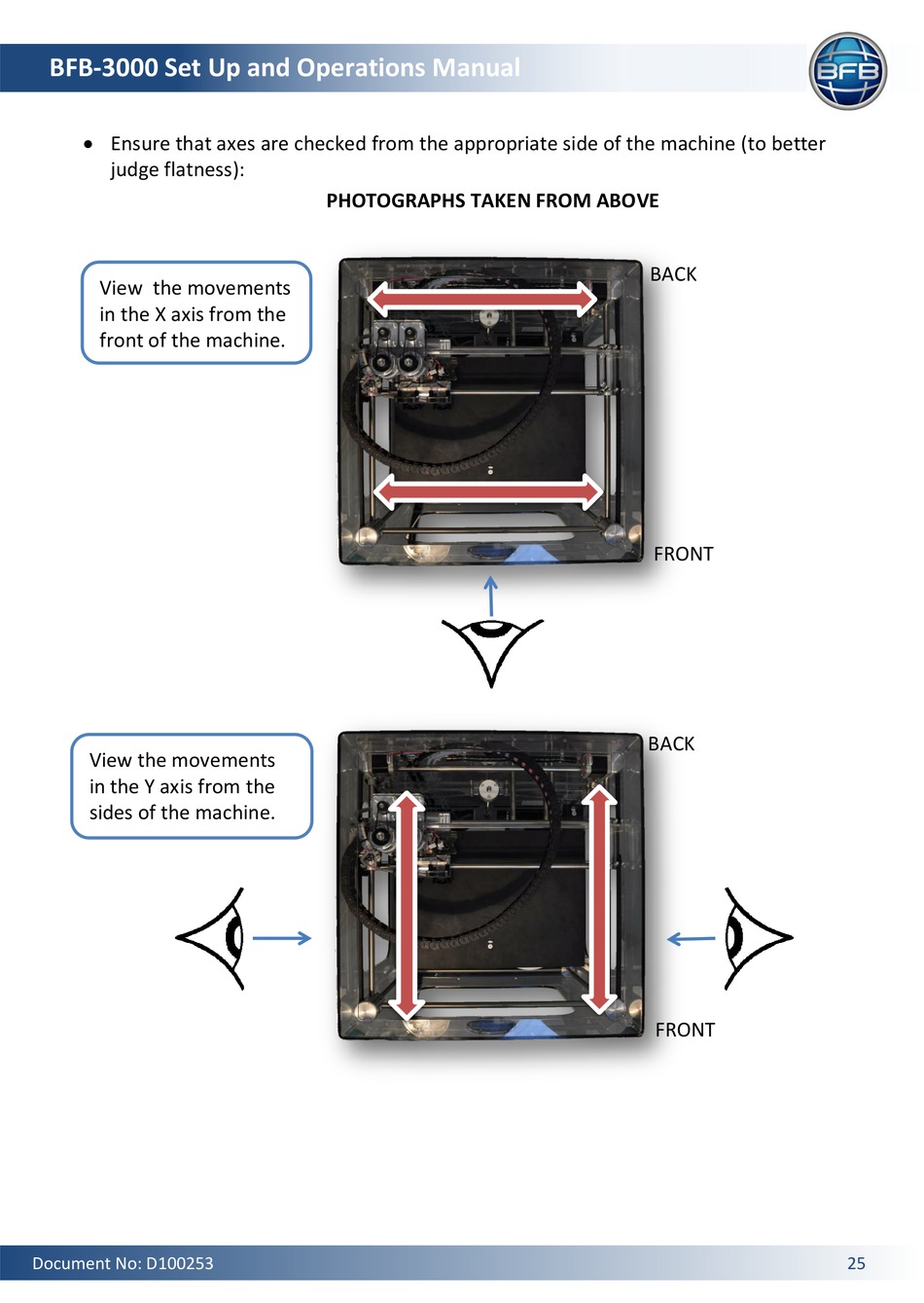

Ensure that axes are checked from the appropriate side of the machine (to better
judge flatness):
View the movements
in the X axis from the
front of the machine.
View the movements
in the Y axis from the
sides of the machine.
Document No: D100253
PHOTOGRAPHS TAKEN FROM ABOVE
BACK
FRONT
BACK
FRONT
25
