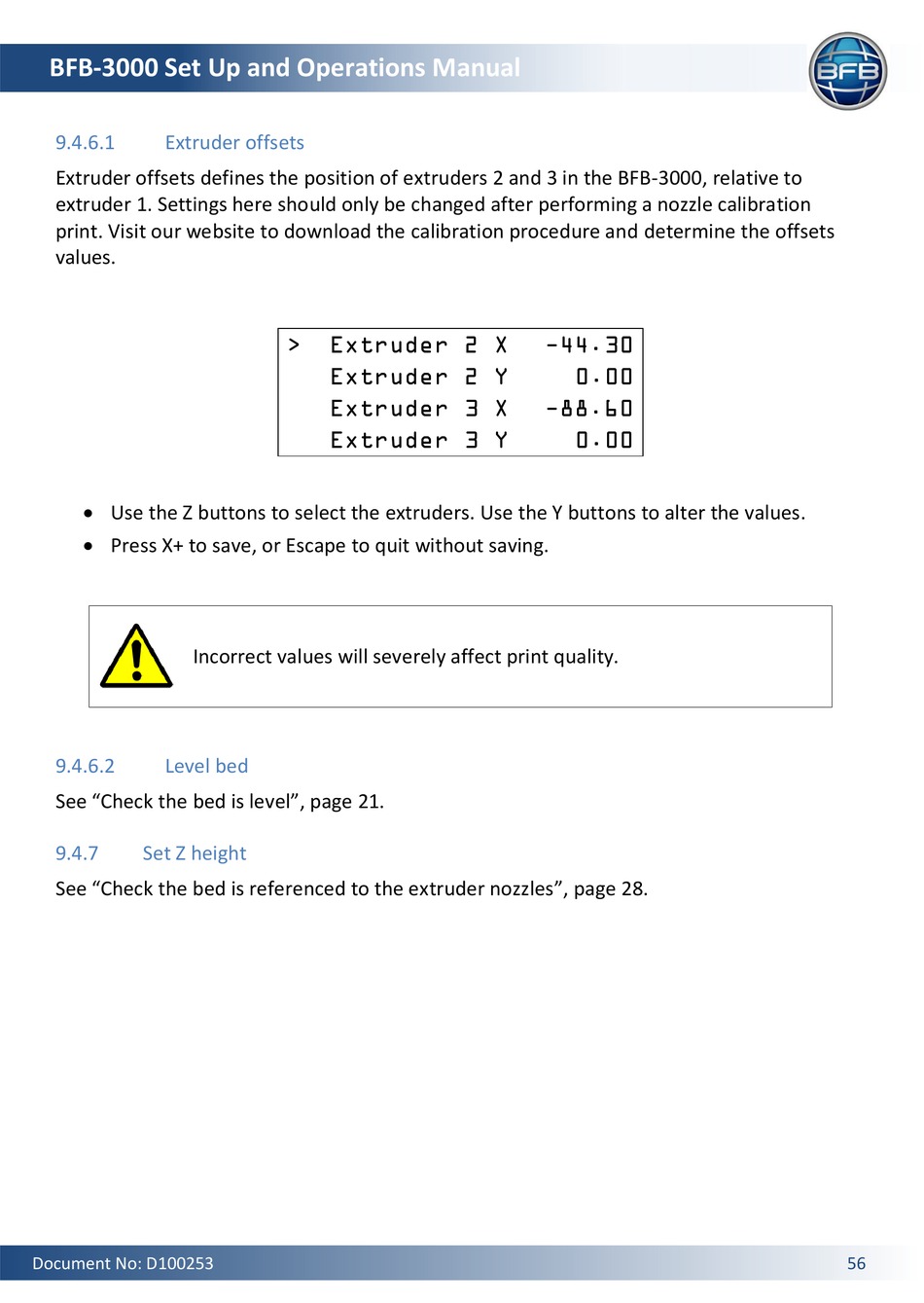

BFB-3000 Set Up and Operations Manual
9.4.6.1 Extruder offsets
Extruder offsets defines the position of extruders 2 and 3 in the BFB-3000, relative to
extruder 1. Settings here should only be changed after performing a nozzle calibration
print. Visit our website to download the calibration procedure and determine the offsets
values.
 Use the Z buttons to select the extruders. Use the Y buttons to alter the values.
 Press X+ to save, or Escape to quit without saving.
Incorrect values will severely affect print quality.
9.4.6.2 Level bed
See "Check the bed is level", page 21.
9.4.7

Set Z height

See "Check the bed is referenced to the extruder nozzles", page 28.
Document No: D100253
> Extruder 2 X
Extruder 2 Y
Extruder 3 X
Extruder 3 Y
-44.30
0.00
-88.60
0.00
56
