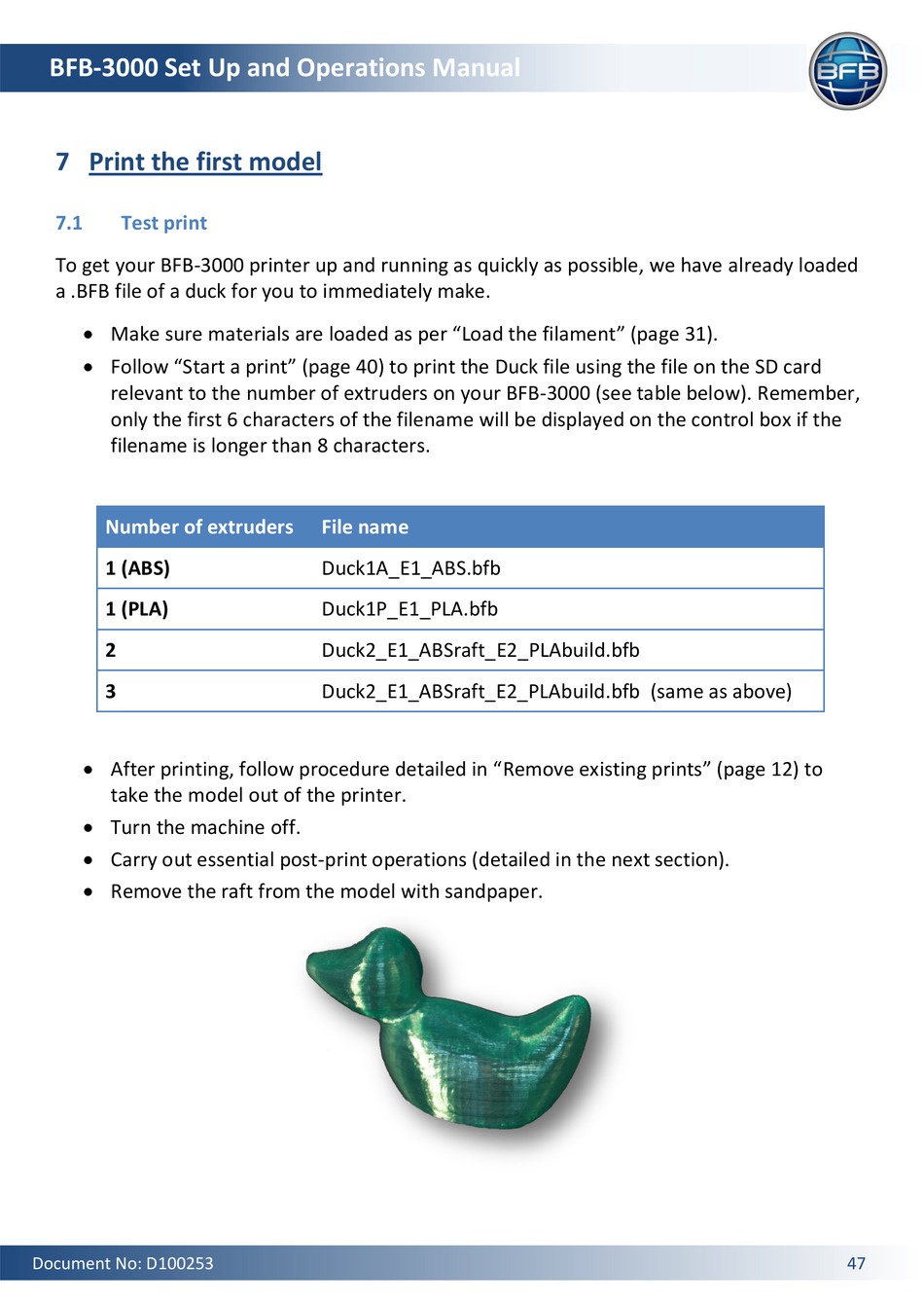

Print The First Model; Test Print - 3D Systems BFB-3000 Manual

BFB-3000 Set Up and Operations Manual

7 Print the first model

7.1

Test print

To get your BFB-3000 printer up and running as quickly as possible, we have already loaded
a .BFB file of a duck for you to immediately make.
 Make sure materials are loaded as per "Load the filament" (page 31).
 Follow "Start a print" (page 40) to print the Duck file using the file on the SD card
relevant to the number of extruders on your BFB-3000 (see table below). Remember,
only the first 6 characters of the filename will be displayed on the control box if the
filename is longer than 8 characters.
Number of extruders
1 (ABS)
1 (PLA)
2
3
 After printing, follow procedure detailed in "Remove existing prints" (page 12) to
take the model out of the printer.
 Turn the machine off.
 Carry out essential post-print operations (detailed in the next section).
 Remove the raft from the model with sandpaper.
Document No: D100253
File name
Duck1A_E1_ABS.bfb
Duck1P_E1_PLA.bfb
Duck2_E1_ABSraft_E2_PLAbuild.bfb
Duck2_E1_ABSraft_E2_PLAbuild.bfb (same as above)
47
