8/11/22, 2:38 PM

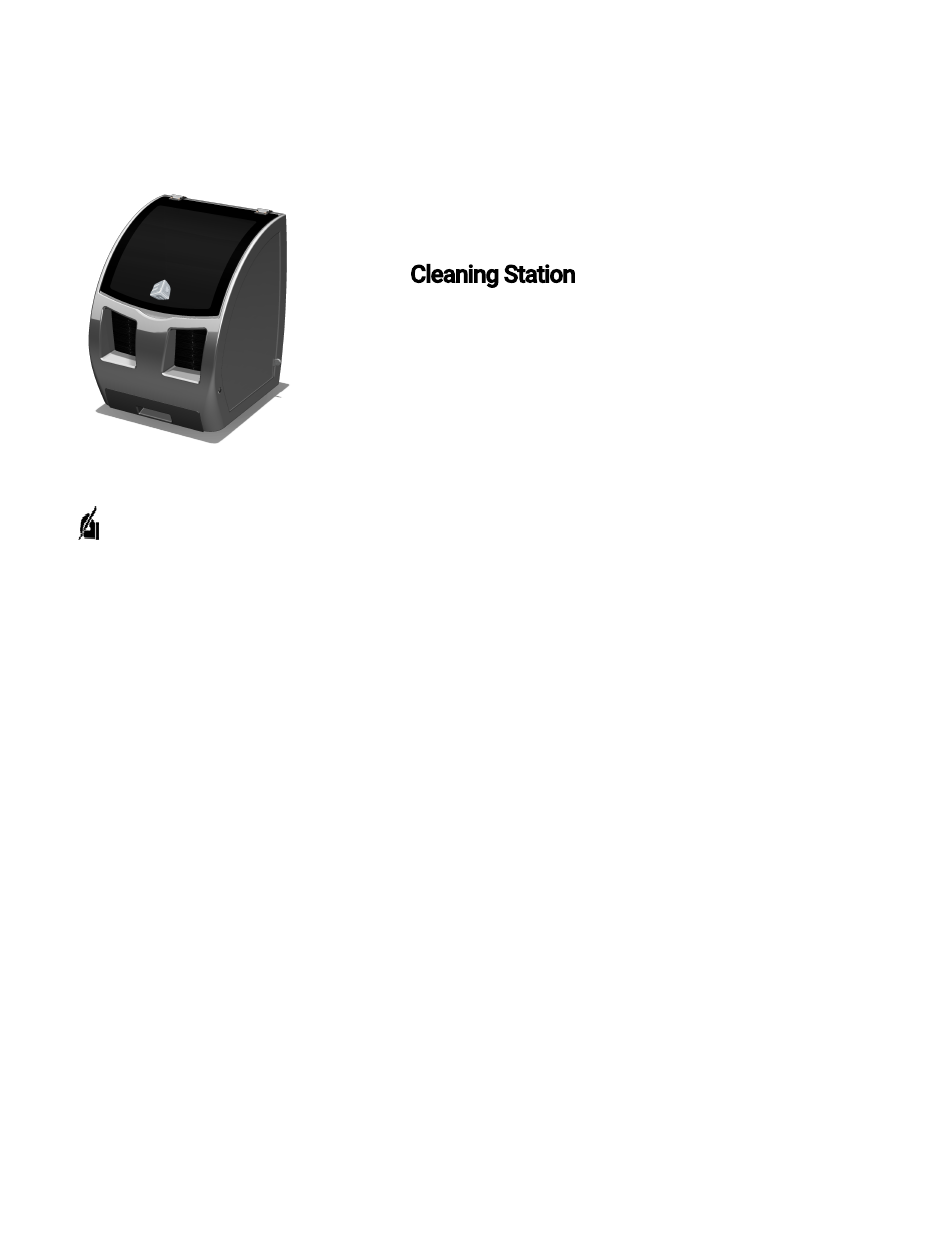

Cleaning Station User Guide

Cleaning Station User Guide (Prior to s/n 70011300801)

Note: Please refer back to

At A Glance

The Cleaning Station provides a convenient way to depowder your parts. It provides compressed air for blowing powder

off the part, and two vacuum ports where you will connect a vacuum for recovering the powder.

infocenter.3dsystems.com/projetcjpx60/print/book/export/html/2431

Cleaning Station

User Guide

Rev A

http://infocenter.3dsystems.com/projetcjpx60/

Cleaning Station User Guide

for the most up-to-date User Guide

1/17

Need help?

Do you have a question about the Cleaning Station and is the answer not in the manual?

Questions and answers

Summary of Contents for 3D Systems Cleaning Station

Page 1 User Guide At A Glance The Cleaning Station provides a convenient way to depowder your parts. It provides compressed air for blowing powder off the part, and two vacuum ports where you will connect a vacuum for recovering the powder.
Page 2 8/11/22, 2:38 PM Cleaning Station User Guide Led Light Air Wand Arm Holes Waste Tray Front Cover F Purge Lever On/Off Switch infocenter.3dsystems.com/projetcjpx60/print/book/export/html/2431 2/17...
Page 3 Installation The Cleaning Station is shipped completely assembled. Follow these steps to prepare the unit for use: 1. Open the carton carefully and remove the Cleaning Station. 2. Place the Cleaning Station on a table. 3. Remove any packing material around or inside the station.
Page 4 Plug the Power Supply into AC power. Connect the vacuum source to the intake at the rear of the cabinet. To provide dust control and powder recovery function, the Cleaning Station must be connected to a customer supplied external Vacuum Cleaner with the following speci cations:...
Page 5 8/11/22, 2:38 PM Cleaning Station User Guide 2. Open the front door of the Cleaning Station. 3. Place your part on the metal grate and close front door. 4. Turn on the Cleaning Station Power Switch. infocenter.3dsystems.com/projetcjpx60/print/book/export/html/2431 5/17...
Page 6 . Use Air Wand to blow off part(s). The loosened powder will be collected by your vacuum though holes in the metal grate on the bed of the Cleaning Station. Use caution with delicate parts. NOTE: Refer to the User Guide for your ProJet CJP x60 printer for full depowdering instructions.
Page 7 NOTE: Without post-processing, your part is delicate. Please familiarize yourself with the post-processing guide to protect your part. 9. Lift up the metal grate and lean it against the back wall of the cleaning station. Use a brush to sweep remaining powder into the port.
Page 8 Your Cleaning Station requires no regular mechanical maintenance other than cleaning. Cleaning As needed, vacuum your Cleaning Station inside and out. Remove the metal grate and vacuum any residual powder. Wipe the station as needed with a slightly dampened cloth (use distilled water) to remove dust and other debris. ...
Page 9 Power Requirements Included supply Input: 100-230 VAC, 50-60 Hz, 1.5A Output: 24 VDC, 5 A Support If you have any questions about using your Cleaning Station, contact your 3D Systems Dealer or check the Support section https://support.3dsystems.com infocenter.3dsystems.com/projetcjpx60/print/book/export/html/2431 9/17...
Page 10 At A Glance The Cleaning Station provides a convenient way to depowder your parts. It provides compressed air for blowing powder off the part, and two vacuum ports where you will connect a vacuum for recovering the powder. Version 2 provides a port to connect to your ProJet® CJP x60 printers.
Page 11 Rear View Installation The Cleaning Station is shipped completely assembled. Follow these steps to prepare the unit for use: 1. Open the carton carefully and remove the Cleaning Station. 2. Place the Cleaning Station on a table.
Page 12 Operation Preparation Preparation Before you use your Cleaning Station for depowdering parts, do the following: Plug the Power Supply into AC power. Connect the vacuum hose to the intake at the rear of the cabinet. Connect the opposite end of hose to the rear of your ProJet® x60 printer.
Page 13 Cleaning Station User Guide Depowdering Depowdering Before you use your Cleaning Station for depowdering parts, do the following: 1. Activate the 'External CRU' function on the main menu of your ProJet® CJP x60. 2. Open the front door of the Cleaning Station.
Page 14 8/11/22, 2:38 PM Cleaning Station User Guide 4. Turn on the power switch on the right side of Cleaning Station. 5. Reach in through armholes. . Use Air Wand to blow off part(s). The loosened powder will be collected by your vacuum though holes in the metal grate on the bed of the Cleaning Station.
Page 15 NOTE: Refer to the User Guide for your ProJet CJP x60 printer for full depowdering instructions. 7. Turn off the cleaning station. Leave your vacuum source on. . Open the door and remove the cleaned part. It may be necessary to allow moments for powder in the chamber to settle.
Page 16 8/11/22, 2:38 PM Cleaning Station User Guide 9. Lift up the metal grate and lean it against the back wall of the cleaning station. Use a brush to sweep remaining powder into the port. 10. Replace the grate and close the door.
Page 17 Power Requirements Included supply Input: 100-230 VAC, 50-60 Hz, 1.5A Output: 24 VDC, 5 A Support If you have any questions about using your Cleaning Station, contact your 3D Systems Dealer or check the Support section https://support.3dsystems.com infocenter.3dsystems.com/projetcjpx60/print/book/export/html/2431 17/17...
