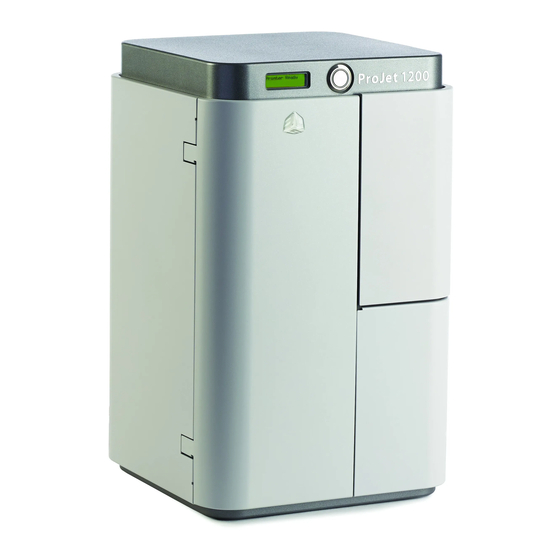

3D Systems ProJet 1200 User Manual

Projet 1200 professional 3d printer
Hide thumbs Also See for ProJet 1200:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
ProJet™ 1200
Professional 3D Printer
User Guide
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProJet 1200 and is the answer not in the manual?

Questions and answers

Related Manuals for 3D Systems ProJet 1200

Summary of Contents for 3D Systems ProJet 1200

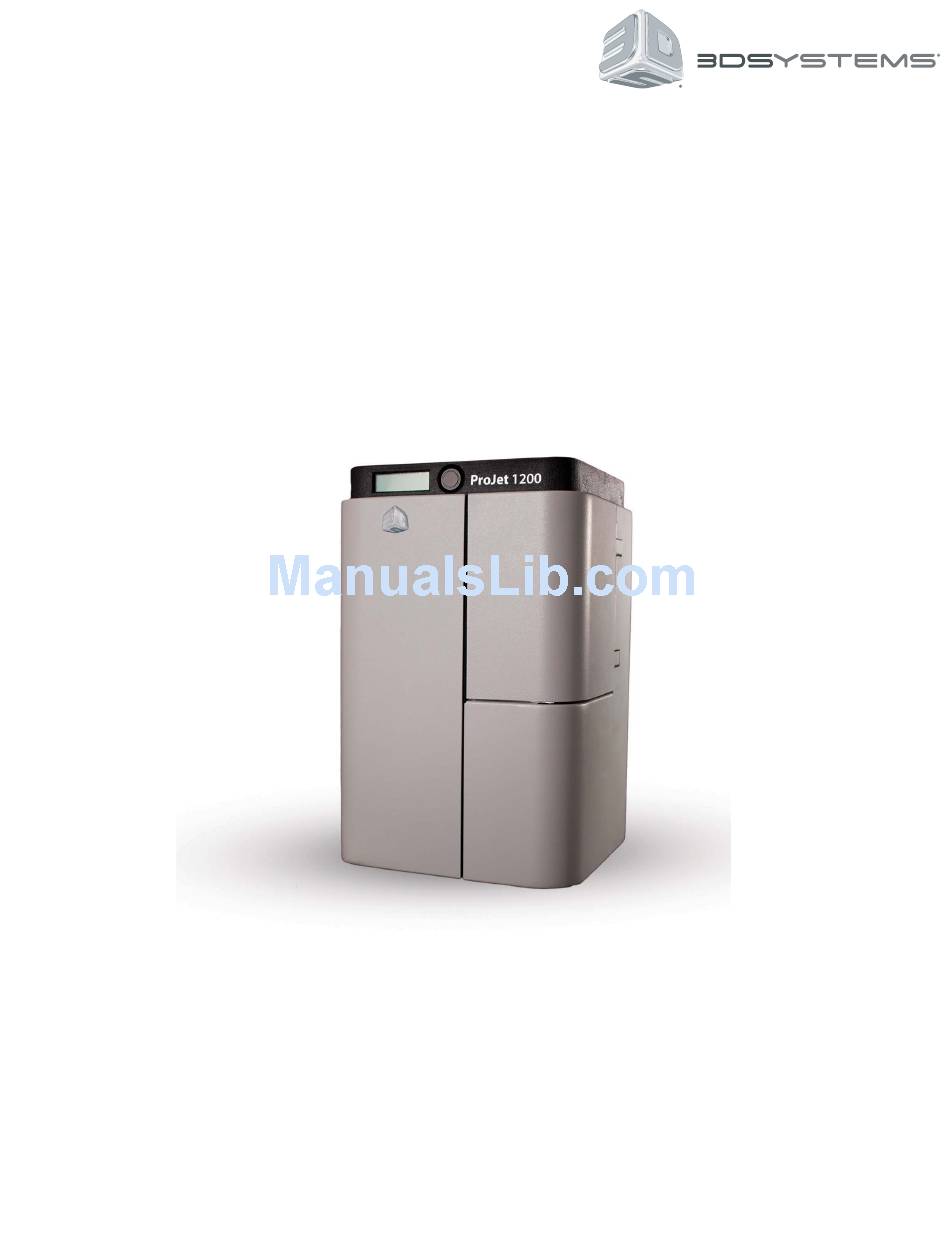

  • Page 1 ProJet™ 1200 Professional 3D Printer User Guide Original Instructions...

  • Page 2: Table Of Contents

    Tools Toolbar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 3D Systems, Inc.
  • Page 3 SERVICE AND SUPPORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 3D Systems, Inc.

  • Page 4: Introduction

    Under the copyright laws, this user guide may not be copied, in whole or in part, without the written consent of 3D Systems . The ProJet logo is a trademark of 3D Systems and is registered in the U .S . Use of this logo without the prior written consent of 3D Systems may constitute trademark infringement and unfair competition in violation of federal and state laws .

  • Page 5: Warranty

    ProJet 1200 3D Printer . The warranty period for the ProJet 1200 3D printer is for one (1) year and starts at the earliest of (i) the date your ProJet 1200 3D printer is activated or (ii) “ninety (90) days after the ProJet 1200 3D Printer is shipped from 3D Systems to the end customer or to the reseller or retailer that sold the ProJet 1200 3D Printer to the end customer .”...

  • Page 6: Important Safety Information

    Pinch Point: Indicates hands and/or fingers potentially could be pinched when interacting with the equipment. Wear Gloves: Wear gloves when handling uncured VisiJet® build material . Ultraviolet Radiation Inside: Exposure may cause eye damage. Do not operate without covers. Wear UV eye protection . 3D Systems, Inc.

  • Page 7: High Voltage Potential & Electrical Safety

    Do not modify any safety features or make modifications to the printing system. Doing so is prohibited and voids warranty and contractual agreements . • Use of part materials, print pads or parts other than genuine 3D Systems® ProJet® 1200 components may void warranty and other contractual agreements . •...

  • Page 8: Consumable Safety Guidelines

    Keep materials away from direct sunlight, heat, flames and other direct light or UV energy sources. For optimal results, keep stored cartons closed and sealed until the cartridge is ready for use . Authorized 3D Systems VisiJet FTX Green Material should only be used in the printer .

  • Page 9: Visijet ® Ftx Green Material Usage

    If the door is opened during operation, use the recommended protective eye wear which blocks the UV light . • Hazardous voltage exists inside the electrical module. Injury or death from electrical shock can result if system’s electrical box covers are removed . When installing replacement modules, ensure power is off before removing panels . 3D Systems, Inc.

  • Page 10: At-A-Glance

    Print Cartridge Support Print Door Material Cartridge Clamp Lever Elevator Guide Rods UV Curing Bulb Socket Elevator Curing Chamber Carousel Print Platform Clamp Lever UV Curing Bulb Print Platform Curing Chamber Door Material Cartridge Clamp Curing Chamber 3D Systems, Inc.

  • Page 11: Connections

    CONNECTIONS Ethernet Power Input 3D Systems, Inc.

  • Page 12: Specifications And Requirements

    Dark Green Cartridge Quantity 30 g Tensile Strength ASTM D638 30 MPa Tensile Modulus ASTM D638 1700 MPa Elongation at Break ASTM D638 Flexural Strength ASTM D638 40 MPa Ash Content 0 .01 % Description Wax-up Castable 3D Systems, Inc.

  • Page 13: Unpacking And Setting Up Your Projet 1200

    UNPACKING AND SETTING UP YOUR PROJET 1200 CONTENTS ProJet 1200 Plastic Insert VisiJet® FTX Green Consumable Tray Power Supply Build Platform UV Lamp USB Cable 3D Systems, Inc.

  • Page 14: Unpacking The Projet 1200

    UNPACKING THE PROJET 1200 CAUTION: This procedure may require two persons . Ensure there are enough people to comfortably move the printer to its final location. Dropping the printer and parts may damage them. CAUTION: Ensure that you save all foam and packing material for the future repacking of your ProJet 1200 .
  • Page 15 NOTE: There should be a minimum of 6”/152 mm air space between the back of the printer and any other object . NOTE: There should be at least 10”/254 mm air space on either side of the printer . Remove the protective film (A) covering the display. 3D Systems, Inc.
  • Page 16 . NOTE: When installing the UV curing bulb, ensure the plastic insert is reinserted in the material cartridge clamp . The plastic insert is designed to protect the glass pane in the material cartridge support . 3D Systems, Inc.

  • Page 17: Printer Setup

    2 . Remove the bulb (included) from its box but do not remove the cardboard protective sleeve from the bulb . 3 . Insert the bulb end with the metal prongs through the channel in the bottom of the printer . 3D Systems, Inc.
  • Page 18 4 . Carefully press the bulb base into the socket and ensure the connection is secure . 5 . Remove the cardboard sleeve from the bottom . 6 . Reinstall the bulb access panel on the bottom of the printer using the original screw . 3D Systems, Inc.

  • Page 19: Installing The Material Cartridge

    NOTE: The material cartridge will set into a pocket on top of the glass pane . CAUTION: It is very important that the cartridge be seated correctly in the pocket or else a leak can be created in the cartridge which may damage the system . 3D Systems, Inc.

  • Page 20: Installing The Print Platform

    Carefully pull the label cover off the cartridge . Installing the Print Platform Always wear protective gloves when handling the print platform . Rotate the print platform clamp lever upward . Insert the print platform under the clamp lever until it is seated . 3D Systems, Inc.
  • Page 21 Rotate the print platform clamp lever down to lock the print platform . 3D Systems, Inc.

  • Page 22: Installing The Projet 1200 Software

    Installing the ProJet 1200 Software 3DS Central is the location where you can access user manuals, installation guides, service procedures, software and firmware information . You must create an account to gain access to these resources . https://3dscentral .3dsystems .com...
  • Page 23 Select ProJet 1200 from the dropdown menu . Download the application software by selecting the filename under the software header . NOTE: A window may open asking if you want to open or save the zipped file. Select your preferred option.

  • Page 24: Connecting The Printer

    CONNECTING PRINTER USING A USB CONNECTION Follow Step 1 above, when LCD display shows ProJet 1200 Ready connect machine via USB cable and wait while machine installs all the necessary drivers for that particular printer on your computer . (This will take a couple of minutes) .
  • Page 25 Open the ProJet 1200 application . Double-click the ProJet 1200 icon that was placed on your desktop during the software installation . Select File > Connect to Printer . Select the name of the printer next to the IP address of your printer. Select OK .

  • Page 26: Operating The Printer

    OPERATING THE PRINTER The printer works in conjunction with the ProJet 1200 software (desktop client). SOFTWARE OVERVIEW File Menu Tools Toolbar Main Toolbar Stage View Toolbar Orientation Compass Edit Toolbar Status Bar 3D Systems, Inc.

  • Page 27: File Dropdown Menu

    Tools for starting or stopping the curing process Save the part as a specific file type Save the platform as a compressed STL file Save the model view Save the platform as a compressed STL file Closes PrintPreview Not used for this printer 3D Systems, Inc.

  • Page 28: Edit Dropdown Menu

    View the part on the Y-Z plane Change the units of measurement type Select and move the part Select all parts De-select all parts Select the triangle supports to modify De-select all triangle supports Enable/disable the editing of supports 3D Systems, Inc.

  • Page 29: View Dropdown Menu

    View or hide the Edit Toolbar View or hide the View Toolbar View or hide the Tools Toolbar View or hide the Status Toolbar Tools Dropdown Menu Verifies the part is complete Automatically places the part in a predetermined position . 3D Systems, Inc.

  • Page 30: Options Dropdown Menu

    Help Dropdown Menu Links to help documentatin on 3dscentral Revision information for PJP3P Main Toolbar Add a part to the stage Select a part Select all parts De-select all parts Undo the last action Delete the selection 3D Systems, Inc.

  • Page 31: View Toolbar

    Translate - Move the part along the X and Y Align down-facing plane axis Rotate - Rotate the part Align up-facing plane Scale - Scale the part Align facing X-Z plane Scale millimeter to inch Align facing Y-Z plane 3D Systems, Inc.

  • Page 32: Tools Toolbar

    Verify PRINTING A PART The ProJet 1200 software can open .stl files. Files must be converted to .vbf using the Print Preview software application. Double-click PrintPreview icon on the desktop . Ensure the material cartridge and the print platform have been installed .
  • Page 33 . Do you wish to continue?” Automatic Part Placement is recommended, Select Yes . NOTE: If the part has already been converted to a .vbf file type, select File > Submit Job from Existing File > 3D Systems, Inc.

  • Page 34: Remove The Part From The Printer

    Place a towel under the part . Rotate the print platform clamp lever up enough to unlock the print platform . NOTE: Resin may drip from the part . The towel is used to collect dripping resin so that printer parts are not exposed to resin . 3D Systems, Inc.

  • Page 35: Cleaning Parts

    Pull the print platform handle (A) out from under the clamp . NOTE: The part will hang down under the print platform . CLEANING PARTS The following equipment is needed for cleaning parts produced by the ProJet 1200 . Glass containers with lids •...

  • Page 36: Cleaning Parts By Manually Dipping

    . If you are unsure if liquid resin remains, it is best to repeat steps 10 through 17 . Make certain you replace the lids on Containers 1 and 2 when they are not in use . Containers 1 and 2 can be used to clean 12 platforms before discarding and replacing the IPA . 3D Systems, Inc.

  • Page 37: Special Consideration When Cleaning Parts

    The isopropyl alcohol in Container 1 and Container 2 must be replaced after cleaning 6 platforms . The discarded alcohol is contaminated with uncured resin and is considered hazardous waste . The discarded alcohol must be stored and disposed of in accordance with all local, state and federal regulations . 3D Systems, Inc.

  • Page 38: Cure And Post Process The Part

    Use your fingers, remove the base from the part. Use fine grit sandpaper to sand down the unwanted protrusions from the bottom of the part . Apply Isopropyl alcohol to a soft cloth and gently clean the part . 10 . 3D Systems, Inc.

  • Page 39: User Maintenance

    Pull down on the bulb and carefully rock the bulb left-right to dislodge the buld from the socket . To replace the bulb, following the procedure, Installing the Curing Bulb on page 14 . 3D Systems, Inc.

  • Page 40: Cleaning The Unit

    (such as a microfiber). Make certain you inspect the glass that is a part of the print cartridge support. Remove the glass and clean any resin, fingerprints or any other debris which may have accumulated. Glass Print Cartridge Support 3D Systems, Inc.

  • Page 41: Service And Support

    SERVICE AND SUPPORT Should additional questions arise, contact 3D Systems: Service Contact Hotline Every workday: 8:00 - 17:00 EST/EDT 1 .800 .793 .3669 E-Mail moreinfo@3dsystems .com Service Address 3D Systems Inc . U .S .A 333 Three D Systems Circle...
  • Page 42 3D Systems, Inc . 333 Three D Systems Circle | Rock Hill, SC | 29730 www .3dsystems .com ©2014 3D Systems, Inc . All rights reserved . pn 341410-00 Rev . B 3D Systems, Inc.
