CHAPTER 11: VLAN REGISTRATION OVER GARP
Note
MULTILINK ML2400 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL
11. Port 2 receives advertisement of VID 3. (Port 2 was already statically
configured for VIDs 1, 2, 3).
If a static VLAN is configured on at least one port of a switch, and that port has established
a link with another device, then all other ports of that switch will send advertisements for
that VLAN.
In the following figure, tagged VLAN ports on switch "A" and switch "C" advertise VLANs 22
and 33 to ports on other GVRP-enabled switches that can dynamically join the VLANs. A
port can learn of a dynamic VLAN through devices that are not aware of GVRP (Switch "B").
Switch A
GVRP On
Tagged
VLAN 22
Switch B
No GVRP
Tagged
VLAN 22

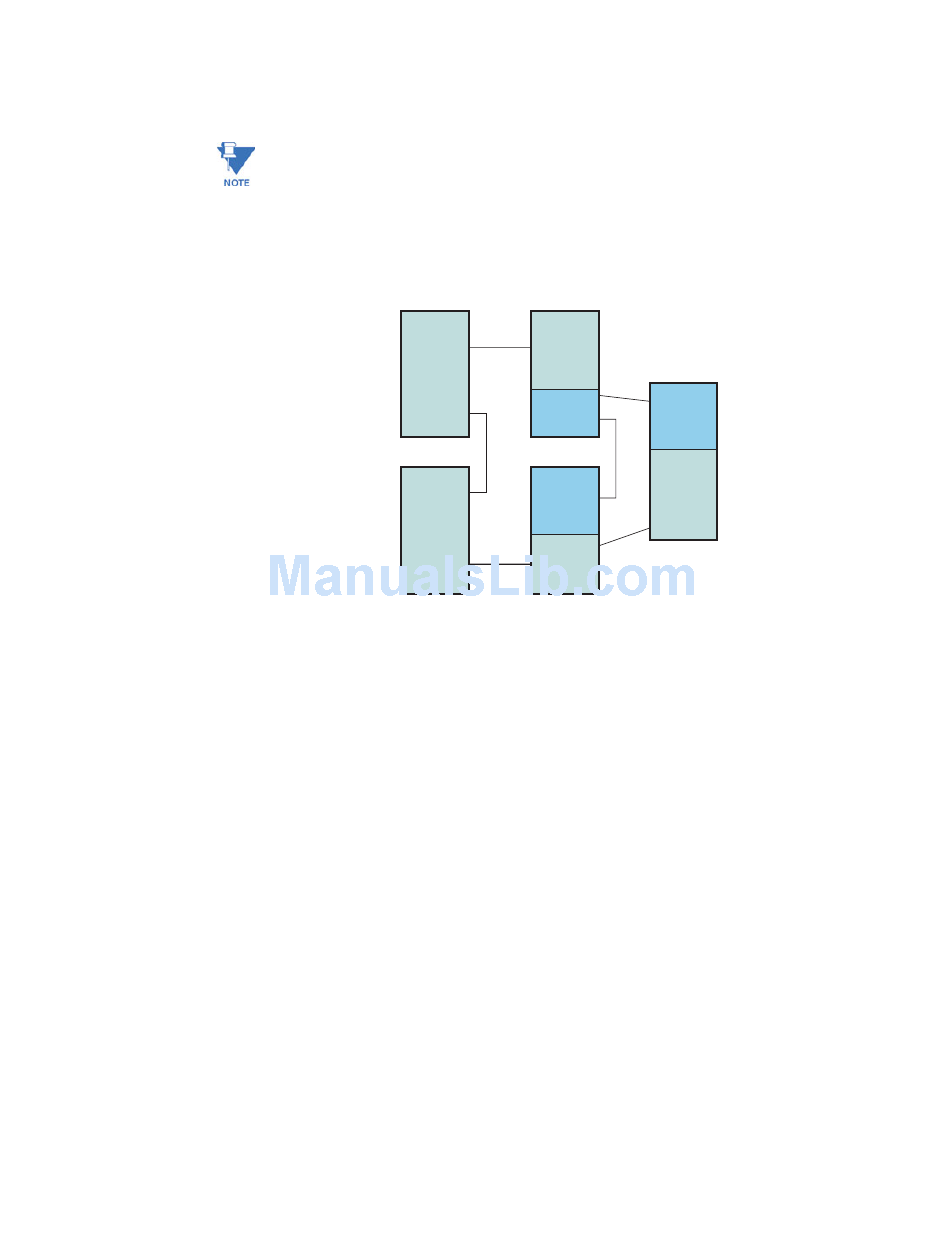

FIGURE 11–2: VLAN assignment in GVRP enabled switches
An "unknown VLAN" is a VLAN that the switch learns of by GVRP. For example, suppose that
port 1 on switch "A" is connected to port 5 on switch "C". Because switch "A" has VLAN 22
statically configured, while switch "C" does not have this VLAN statically configured, VLAN
22 is handled as an "Unknown VLAN" on port 5 in switch "C". Conversely, if VLAN 22 was
statically configured on switch C, but port 5 was not a member, port 5 would become a
member when advertisements for VLAN 22 were received from switch "A". GVRP provides a
per-port join-request option which can be configured.
VLANs must be disabled in GVRP-unaware devices to allow tagged packets to pass
through. A GVRP-aware port receiving advertisements has these options:
• If there is no static VLAN with the advertised VID on the receiving port, then
dynamically create a VLAN with the same VID as in the advertisement, and allow
that VLAN's traffic
• If the switch already has a static VLAN with the same VID as in the advertisement,
and the port is configured to learn for that VLAN, then the port will dynamically join
the VLAN and allow that VLAN's traffic.
• Ignore the advertisement for that VID and drop all GVRP traffic with that VID
• Don't participate in that VLAN
• A port belonging to a tagged or untagged static VLAN has these configurable
options:
Switch C
Switch C
Port 5 dynamically joined VLAN 22
GVRP On
1
5
Ports 11, 12 belong to Tagged VLAN 33
Tagged
VLAN 22
11
2
Switch E
Tagged
GVRP On
12
VLAN 33
Dynamic
VLAN 33
Switch D
Dynamic
GVRP On
VLAN 22
Dynamic
3
7
VLAN 33
Switch E
6
Dynamic
Port 2 dynamically joined VLAN 33
VLAN 22
Ports 7 dynamically joined VLAN 33
Switch D
Port 3 dynamically joined VLAN 33
Ports 6 dynamically joined VLAN 33
VLAN REGISTRATION OVER GARP
754722A1.CDR
11–3
