Installing the ribbon cartridge

We recommend that you use an approved ribbon cartridge. To install the ribbon
cartridge, follow these steps:
12
Quick Setup Guide

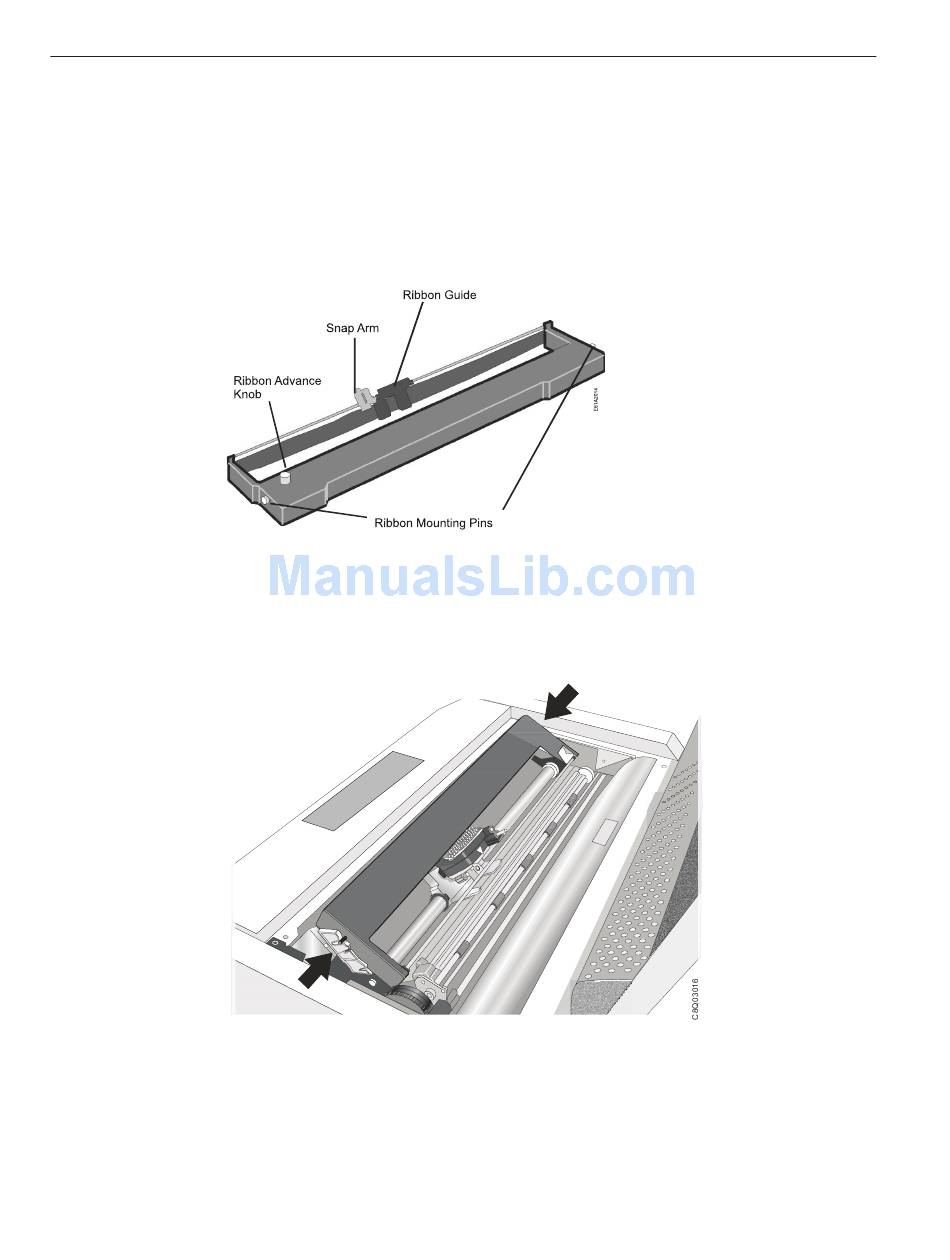

1. Remove the ribbon cartridge from the package. Locate the ribbon guide, snap
arm, ribbon advance knob, and the ribbon mounting pins.
2. Turn the ribbon advance knob in the direction of the arrow to take up any
slack in the ribbon. If the ribbon does not move, contact your place of ribbon
purchase to replace the ribbon cartridge.
3. Open the upper printer cover using the handles on the front side of the cover.
4. Slide the print head to the center of the printer.
5. Align the cartridge pins with the locking grooves on the left and right
cartridge supports.
