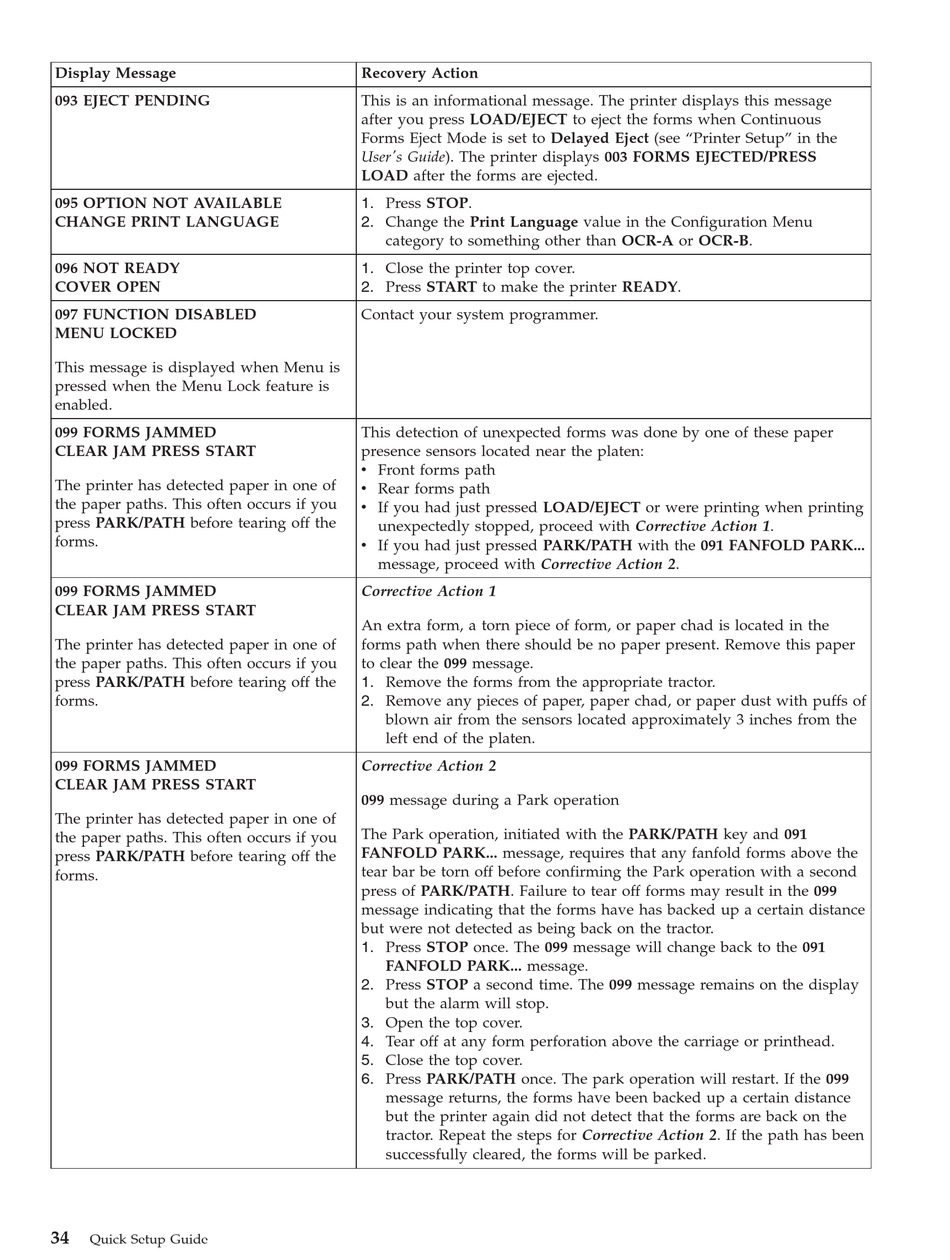

Compuprint Z03 User Manual page 46

Display Message
093 EJECT PENDING
095 OPTION NOT AVAILABLE
CHANGE PRINT LANGUAGE
096 NOT READY
COVER OPEN
097 FUNCTION DISABLED
MENU LOCKED
This message is displayed when Menu is
pressed when the Menu Lock feature is
enabled.
099 FORMS JAMMED
CLEAR JAM PRESS START
The printer has detected paper in one of
the paper paths. This often occurs if you
press PARK/PATH before tearing off the
forms.
099 FORMS JAMMED
CLEAR JAM PRESS START
The printer has detected paper in one of
the paper paths. This often occurs if you
press PARK/PATH before tearing off the
forms.
099 FORMS JAMMED
CLEAR JAM PRESS START
The printer has detected paper in one of
the paper paths. This often occurs if you
press PARK/PATH before tearing off the
forms.
34
Quick Setup Guide
Recovery Action
This is an informational message. The printer displays this message
after you press LOAD/EJECT to eject the forms when Continuous
Forms Eject Mode is set to Delayed Eject (see "Printer Setup" in the
User's Guide). The printer displays 003 FORMS EJECTED/PRESS
LOAD after the forms are ejected.
1. Press STOP.
2. Change the Print Language value in the Configuration Menu
category to something other than OCR-A or OCR-B.
1. Close the printer top cover.
2. Press START to make the printer READY.
Contact your system programmer.
This detection of unexpected forms was done by one of these paper
presence sensors located near the platen:
v Front forms path
v Rear forms path
v If you had just pressed LOAD/EJECT or were printing when printing
unexpectedly stopped, proceed with Corrective Action 1.
v If you had just pressed PARK/PATH with the 091 FANFOLD PARK...
message, proceed with Corrective Action 2.
Corrective Action 1
An extra form, a torn piece of form, or paper chad is located in the
forms path when there should be no paper present. Remove this paper
to clear the 099 message.
1. Remove the forms from the appropriate tractor.
2. Remove any pieces of paper, paper chad, or paper dust with puffs of
blown air from the sensors located approximately 3 inches from the
left end of the platen.
Corrective Action 2
099 message during a Park operation
The Park operation, initiated with the PARK/PATH key and 091
FANFOLD PARK... message, requires that any fanfold forms above the
tear bar be torn off before confirming the Park operation with a second
press of PARK/PATH. Failure to tear off forms may result in the 099
message indicating that the forms have has backed up a certain distance
but were not detected as being back on the tractor.
1. Press STOP once. The 099 message will change back to the 091
FANFOLD PARK... message.
2. Press STOP a second time. The 099 message remains on the display
but the alarm will stop.
3. Open the top cover.
4. Tear off at any form perforation above the carriage or printhead.
5. Close the top cover.
6. Press PARK/PATH once. The park operation will restart. If the 099
message returns, the forms have been backed up a certain distance
but the printer again did not detect that the forms are back on the
tractor. Repeat the steps for Corrective Action 2. If the path has been
successfully cleared, the forms will be parked.
