Step 2 - Installing the Ribbon Cartridge

We recommend that you use an approved ribbon cartridge. To install the ribbon

cartridge, follow these steps:

Quick Setup Guide

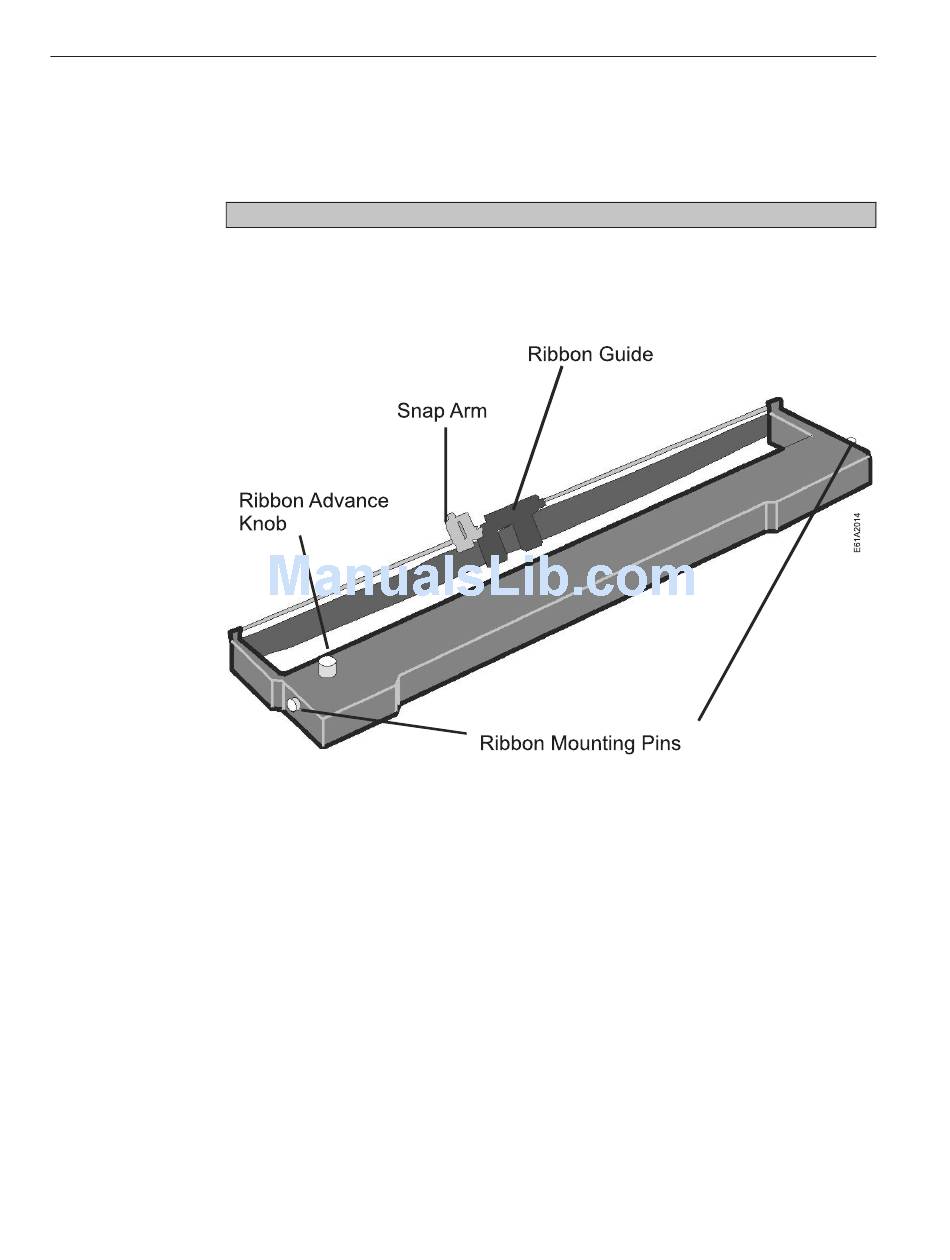

1. Remove the ribbon cartridge from the package. Locate the ribbon guide, snap

arm, ribbon advance knob, and the ribbon mounting pins.

To avoid damage to the ribbon, do not turn the winding knob in the wrong direction.

2. Turn the ribbon advance knob in the direction of the arrow to take up any

slack in the ribbon. If the ribbon does not move, contact your place of ribbon

purchase to replace the ribbon cartridge.

3. Open the top cover using the small handles on either side of the top cover.
