Inserting the Controller Board

Attention: Ensure that the printer is powered off before installing or removing
the Controller Board.
If the Controller Board is installed while the printer is powered on, the controller
will not synchronize with the printer mechanism board. Unpredictable printer
behavior will result.
Perform the following steps to install the Controller Board:
1. Ensure that the printer is powered off. Installing the Controller Board with the
printer power on will result in unpredictable printer behavior.

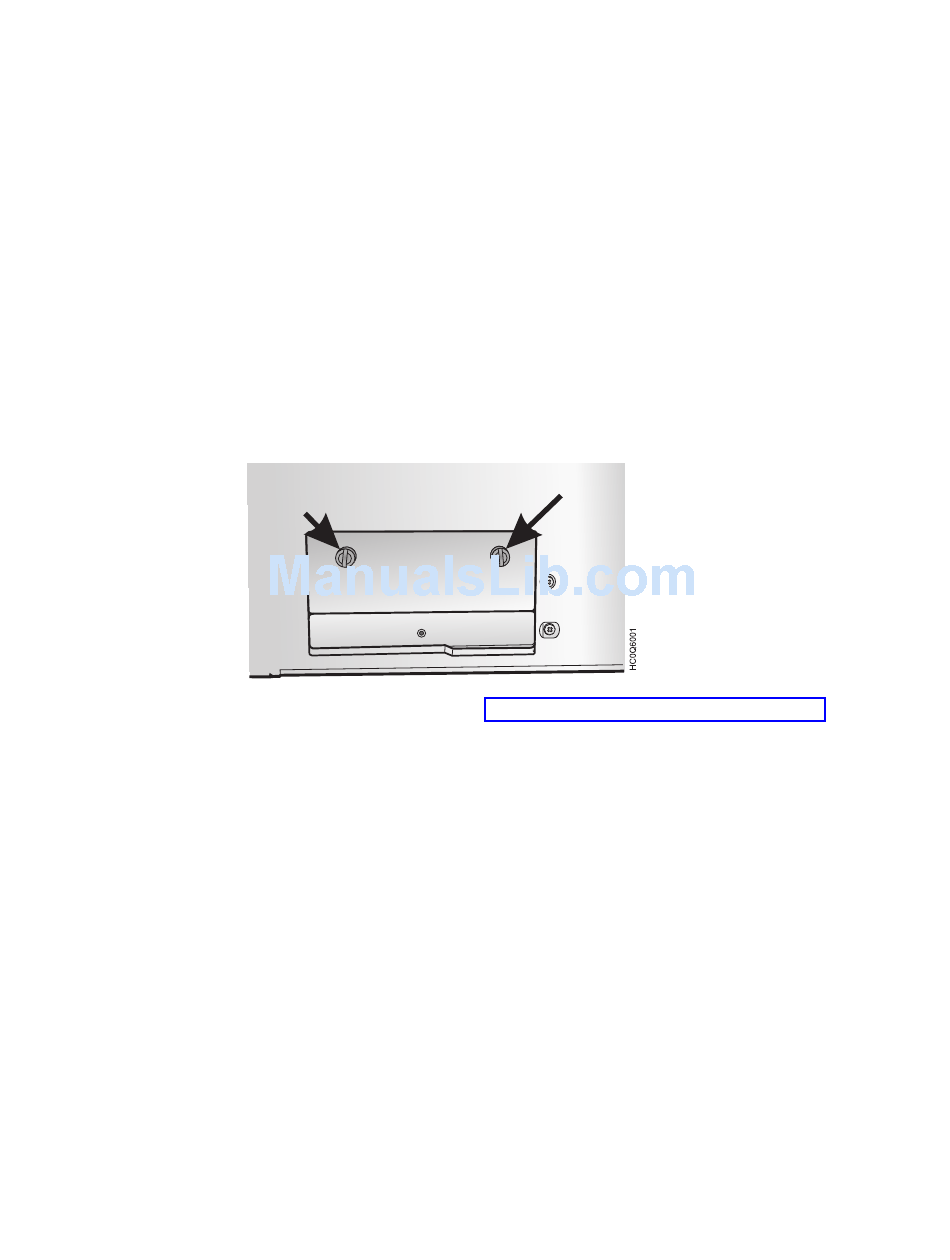

2. Use the screwdriver that came in the Controller Board box to remove the metal
plate on the back of the printer by unscrewing the two screws.
Note: Save the two screws as you need them to attach the Controller Board to
the back printer. Save the metal plate for reuse if the Controller Board is
removed.
3. Use the information under "Handling the Controller Board" on page 8 as you
remove the Controller Board from its shipping box and from the protective
package.
Setting up the 4247 Model Z03 Printer
9
