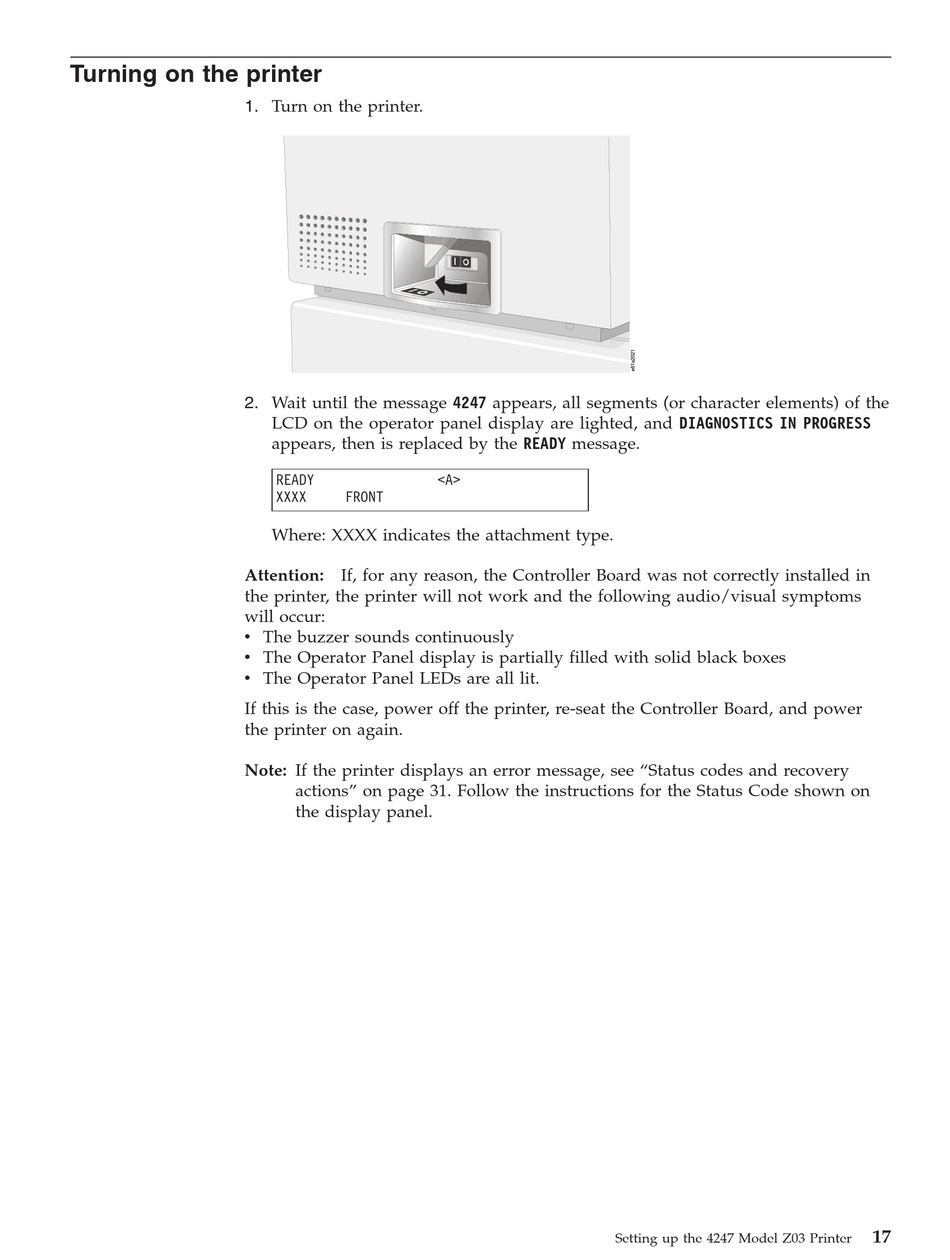

Turning on the printer

1. Turn on the printer.
2. Wait until the message 4247 appears, all segments (or character elements) of the
Attention: If, for any reason, the Controller Board was not correctly installed in
the printer, the printer will not work and the following audio/visual symptoms
will occur:
v The buzzer sounds continuously
v The Operator Panel display is partially filled with solid black boxes
v The Operator Panel LEDs are all lit.
If this is the case, power off the printer, re-seat the Controller Board, and power
the printer on again.
Note: If the printer displays an error message, see "Status codes and recovery
LCD on the operator panel display are lighted, and DIAGNOSTICS IN PROGRESS
appears, then is replaced by the READY message.
READY <A>
XXXX FRONT
Where: XXXX indicates the attachment type.
actions" on page 31. Follow the instructions for the Status Code shown on
the display panel.
Setting up the 4247 Model Z03 Printer
17
