9. Reload the forms.

Options

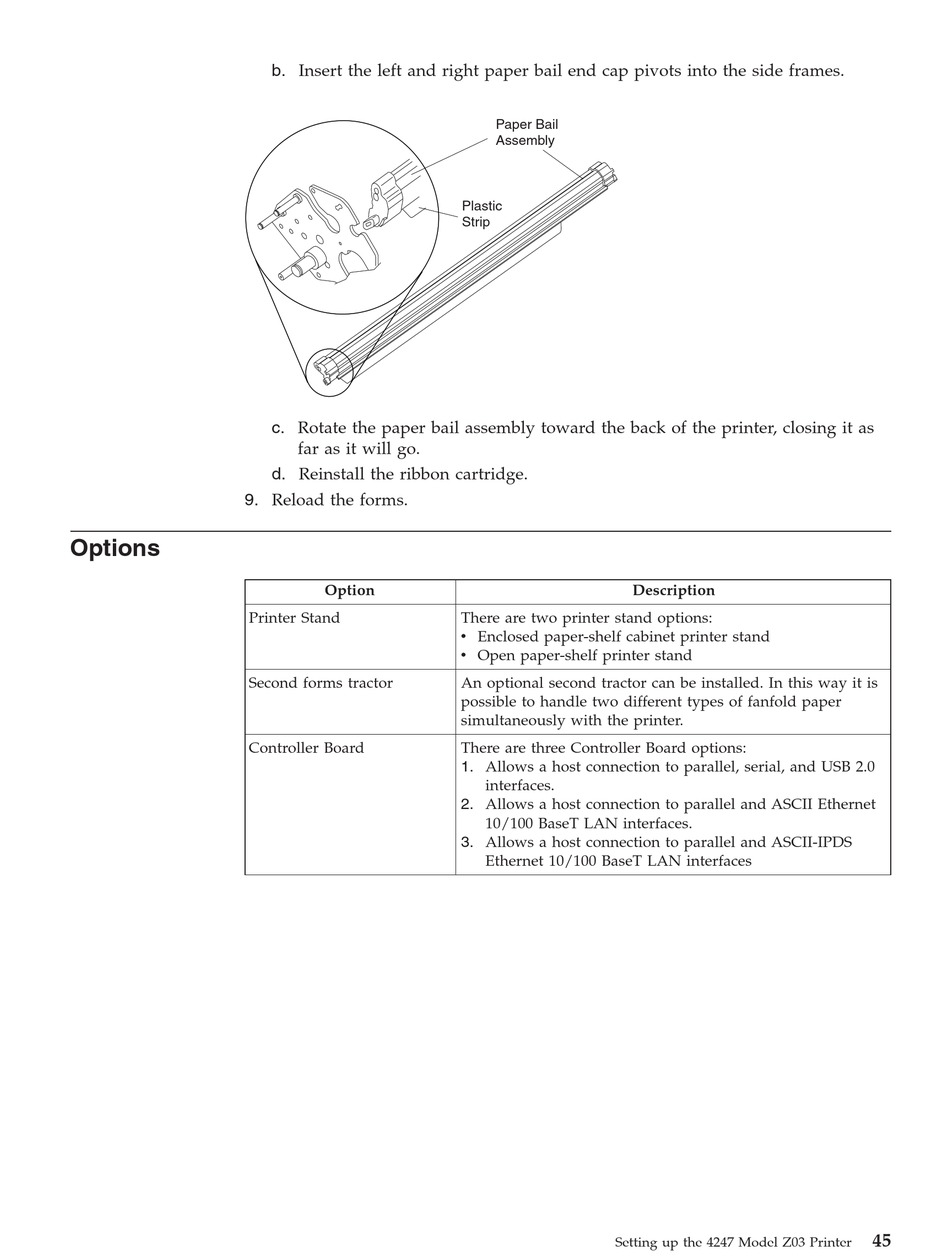

b. Insert the left and right paper bail end cap pivots into the side frames.
c. Rotate the paper bail assembly toward the back of the printer, closing it as
far as it will go.
d. Reinstall the ribbon cartridge.
Option
Printer Stand
Second forms tractor
Controller Board
Paper Bail
Assembly
Plastic
Strip
Description
There are two printer stand options:
v Enclosed paper-shelf cabinet printer stand
v Open paper-shelf printer stand
An optional second tractor can be installed. In this way it is
possible to handle two different types of fanfold paper
simultaneously with the printer.
There are three Controller Board options:
1. Allows a host connection to parallel, serial, and USB 2.0
interfaces.
2. Allows a host connection to parallel and ASCII Ethernet
10/100 BaseT LAN interfaces.
3. Allows a host connection to parallel and ASCII-IPDS
Ethernet 10/100 BaseT LAN interfaces
Setting up the 4247 Model Z03 Printer
45
