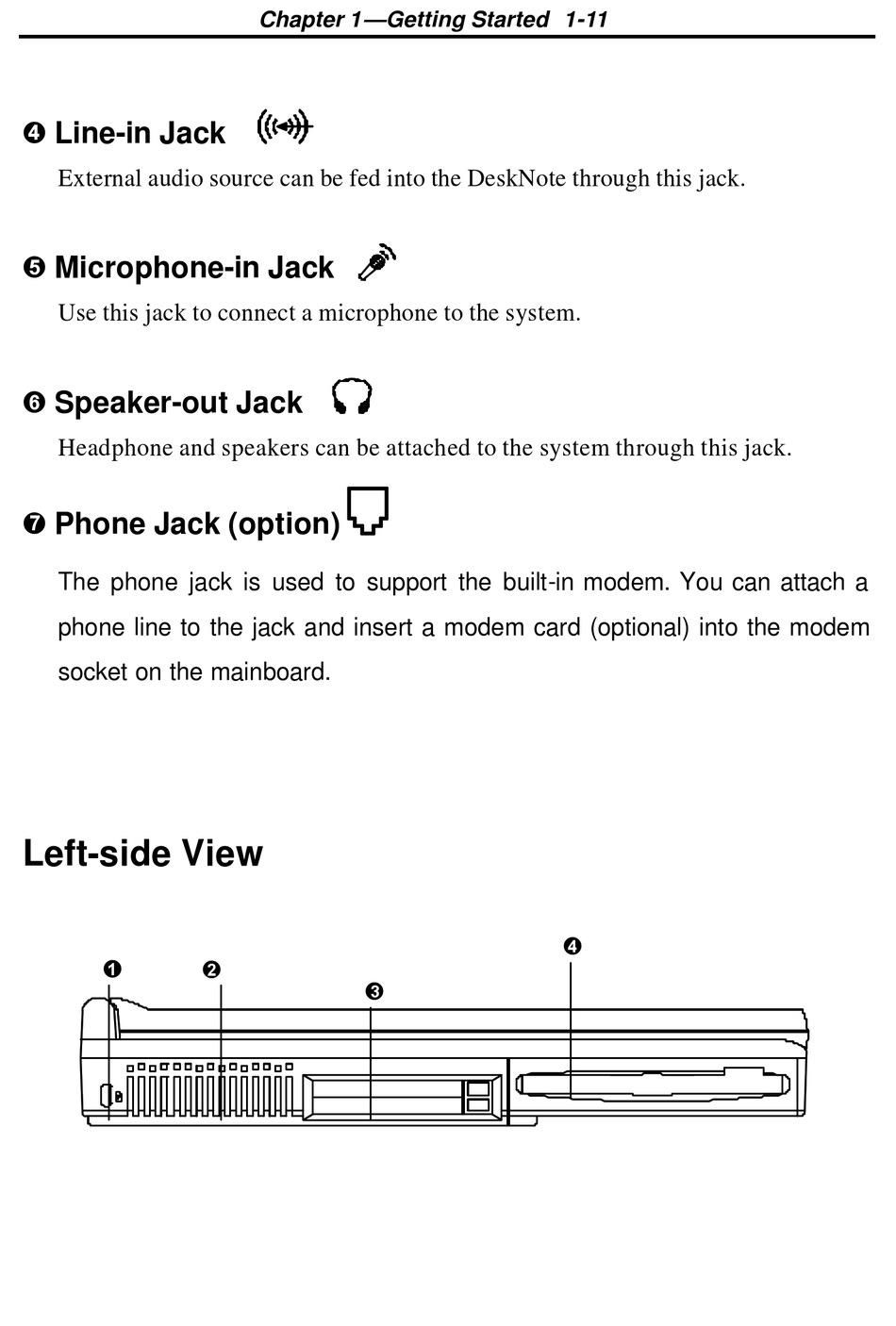

Í Line-in Jack
External audio source can be fed into the DeskNote through this jack.
Î Microphone-in Jack
Use this jack to connect a microphone to the system.
Ï Speaker-out Jack
Headphone and speakers can be attached to the system through this jack.
Ð Phone Jack (option)
The phone jack is used to support the built-in modem. You can attach a
phone line to the jack and insert a modem card (optional) into the modem
socket on the mainboard.
Left-side View
Ê
Chapter 1—Getting Started 1-11
Ë
Ì
Í
