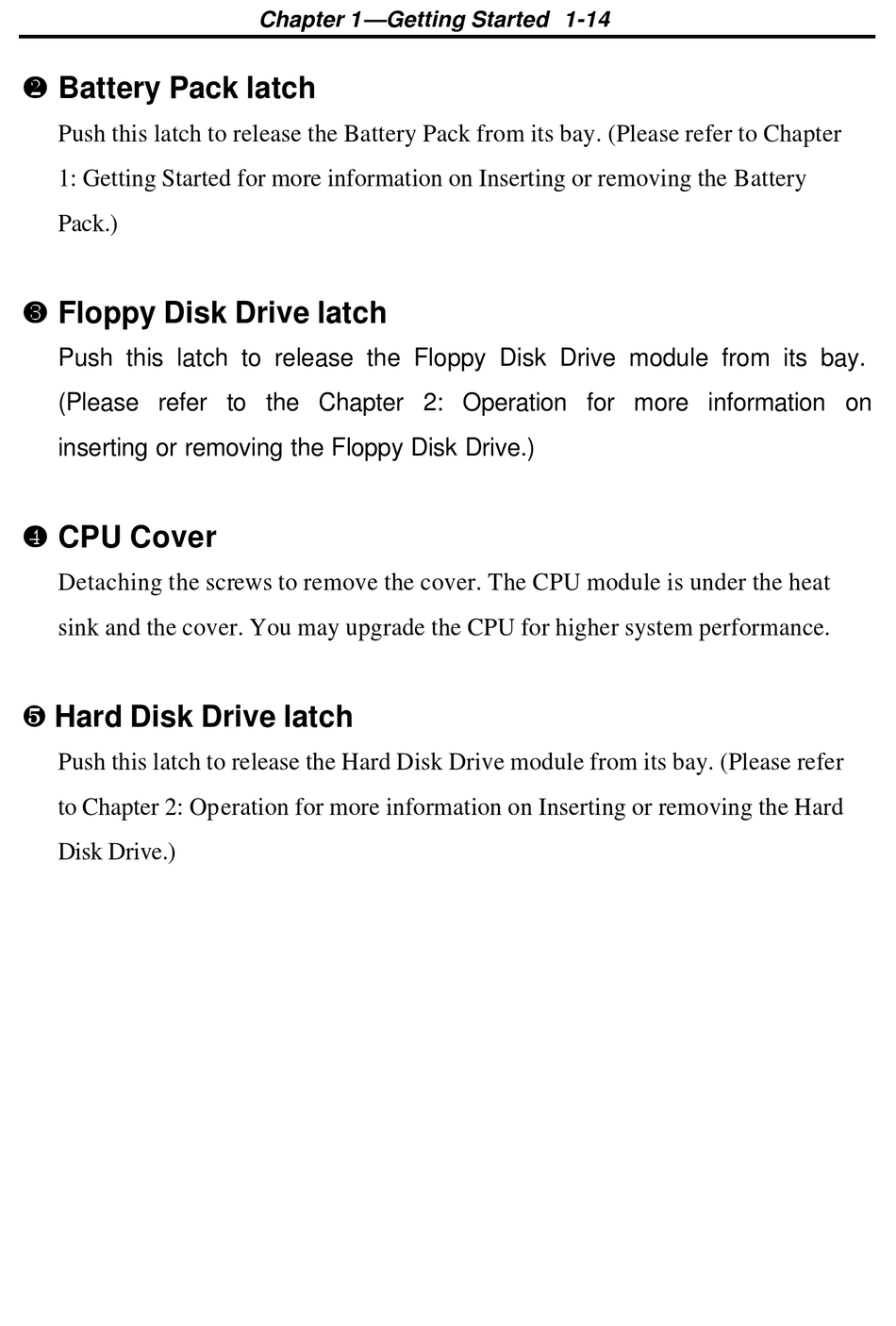

· · Battery Pack latch
Push this latch to release the Battery Pack from its bay. (Please refer to Chapter
1: Getting Started for more information on Inserting or removing the Battery
Pack.)
¸ ¸ Floppy Disk Drive latch
Push this latch to release the Floppy Disk Drive module from its bay.
(Please refer to the Chapter 2: Operation for more information on
inserting or removing the Floppy Disk Drive.)
¹ ¹ CPU Cover
Detaching the screws to remove the cover. The CPU module is under the heat
sink and the cover. You may upgrade the CPU for higher system performance.
º Hard Disk Drive latch
Push this latch to release the Hard Disk Drive module from its bay. (Please refer
to Chapter 2: Operation for more information on Inserting or removing the Hard
Disk Drive.)
Chapter 1—Getting Started 1-14
