Replacing Floppy Disk Drive

Turn off the power. Turn the DeskNote over.

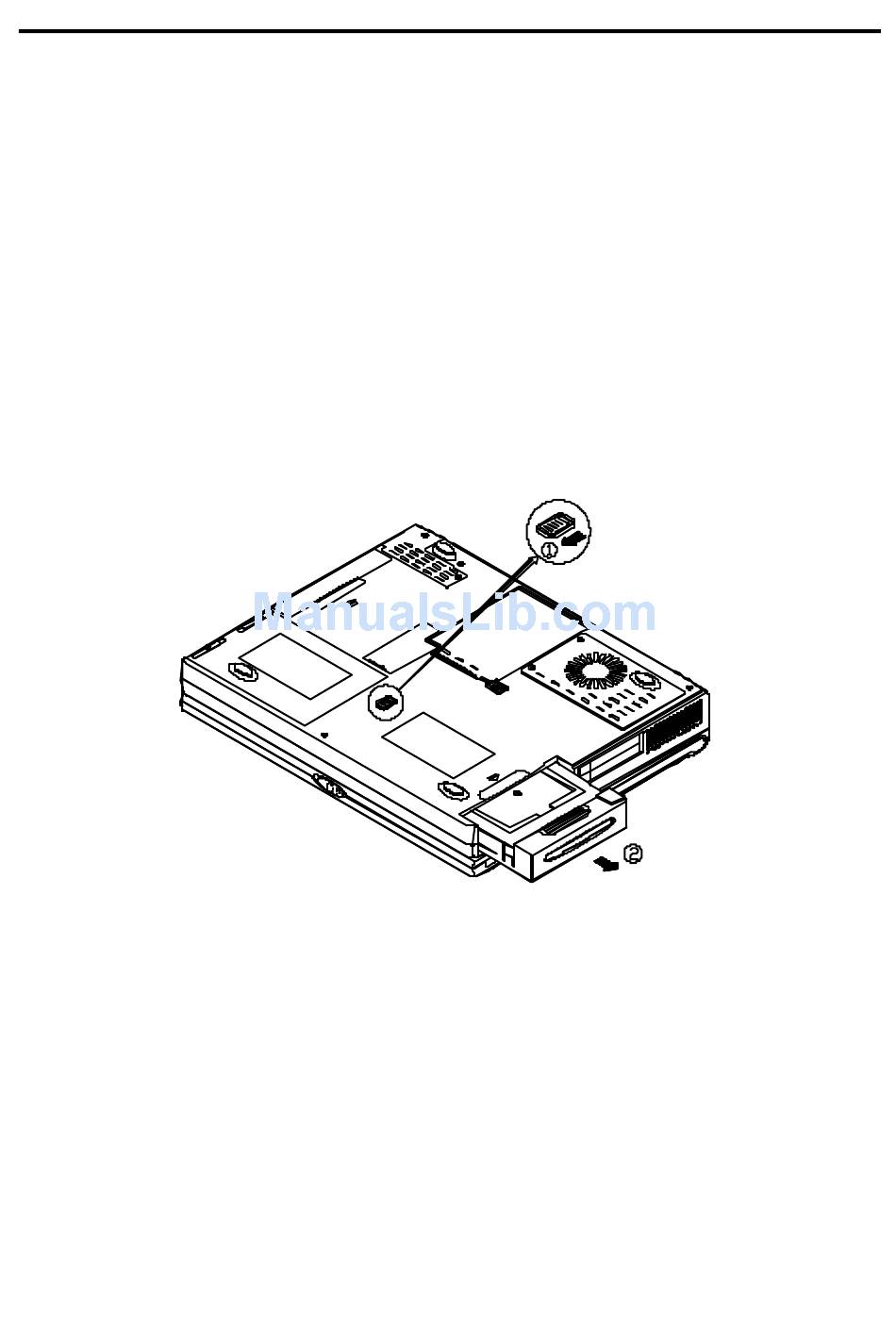

1. Push the latch in the direction as indicated. (Figure 2-13-1)
2. Draw the floppy disk drive module out of its bay.
To assemble the floppy disk drive module into the bay.
3. Insert the replacement module into the bay.
4. Make sure it clicks into the bay properly and mates firmly with the connector.
(You will hear the latch clicks shut).
Chapter 2—Operation 2-13
Figure 2-13
