PANEL DESCRIPTION
!1 PRIO/SET•P KEY*
N N (PRIO/PRIO Set)
N N
➥ Push to select the priority channel. (p. 13)
➥ Push and hold for 2 sec. to set the displayed channel as
the priority channel. (p. 13)
F F (S-Ring/PRIO Clear)
F F
➥ Push to transmit the Smart-Ring signal. (p. 30)
• When RX channel is selected, "N/A" appears.
➥ Push and hold for 2 sec. to cancel the priority channel
setting. (p. 13)
!2 LOW/"
" KEY*
N N (RF Power/Lock) N N
➥ Push to toggle the transmit output power level. (p. 11)
➥ Push and hold for 2 sec. to electronically lock all keys
except the following (p. 14):
[PTT], [Side1] (Monitor), [Top] (Function),
and (Lock)
Push and hold for 2 sec. again to turn the lock function
OFF.
F F (Dup/Zone)
F F
➥ Push to toggle the selected channel between duplex or
simplex operation. (Depending on pre-setting)
• Duplex operation can be selected in 'CB-R1' to 'CB-R8' only.
➥ Push and hold for 2 sec., then select the desired zone
with [CH Up] or [CH Down]. (p. 11)
• Available only when more than two zones are set.
6

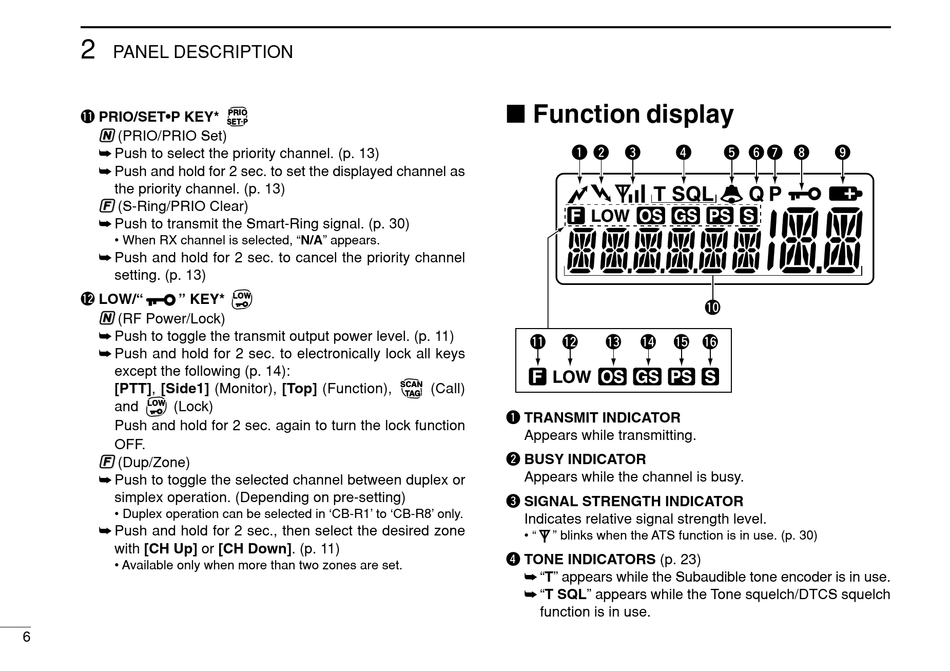

I Function display

q w
!1 !2 !3
(Call)
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level.
• " " blinks when the ATS function is in use. (p. 30)
r TONE INDICATORS (p. 23)
➥ "T" appears while the Subaudible tone encoder is in use.
➥ "T SQL" appears while the Tone squelch/DTCS squelch
function is in use.
e r t y u i
!0
!4 !5 !6
o
