Optional Swivel Belt Clip; I Mb-93 Contents; I Attaching - Icom IC-41S Instruction Manual

12

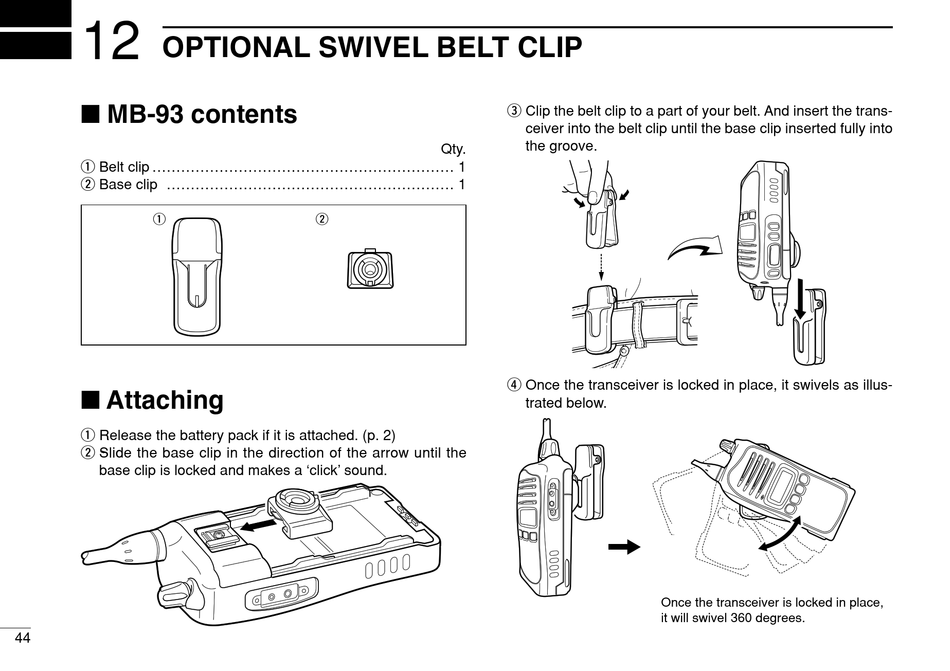

OPTIONAL SWIVEL BELT CLIP

I MB-93 contents

q Belt clip ............................................................... 1
w Base clip ............................................................ 1
q

I Attaching

q Release the battery pack if it is attached. (p. 2)
w Slide the base clip in the direction of the arrow until the
base clip is locked and makes a 'click' sound.
44
Qty.
w
e Clip the belt clip to a part of your belt. And insert the trans-
ceiver into the belt clip until the base clip inserted fully into
the groove.
r Once the transceiver is locked in place, it swivels as illus-
trated below.
Once the transceiver is locked in place,
it will swivel 360 degrees.
