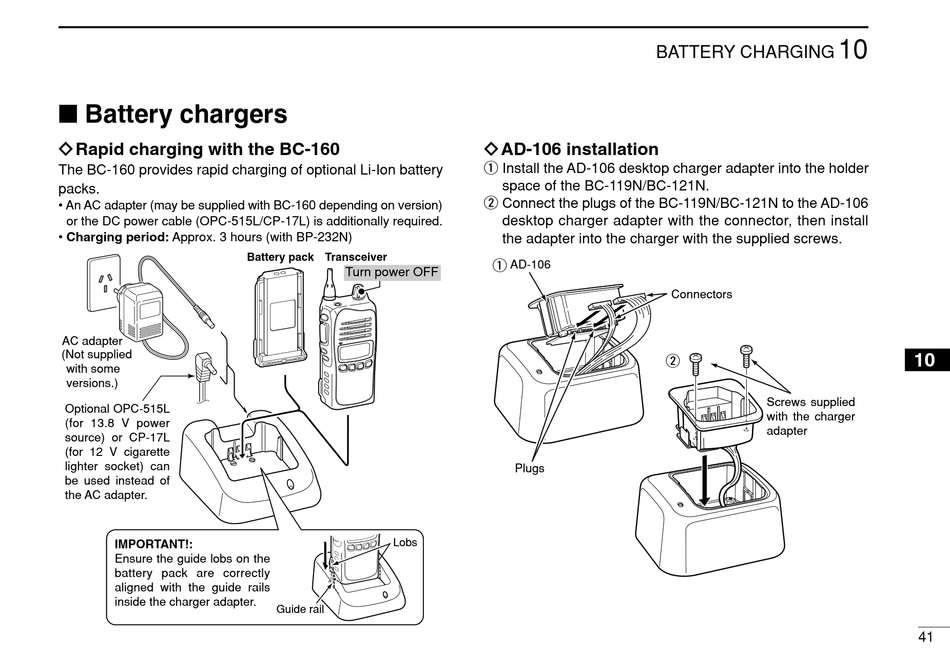

I Battery chargers

ï Rapid charging with the BC-160
The BC-160 provides rapid charging of optional Li-Ion battery
packs.
• An AC adapter (may be supplied with BC-160 depending on version)
or the DC power cable (OPC-515L/CP-17L) is additionally required.
• Charging period: Approx. 3 hours (with BP-232N)
AC adapter
(Not supplied
with some
versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
IMPORTANT!:
Ensure the guide lobs on the
battery pack are correctly
aligned with the guide rails
inside the charger adapter.
Battery pack Transceiver
Turn power OFF
Lobs
Guide rail
BATTERY CHARGING
ï AD-106 installation
q Install the AD-106 desktop charger adapter into the holder
space of the BC-119N/BC-121N.
w Connect the plugs of the BC-119N/BC-121N to the AD-106
desktop charger adapter with the connector, then install
the adapter into the charger with the supplied screws.
q
AD-106
Plugs
10
Connectors
w
Screws supplied
with the charger
adapter
