Panel Description; I Front Panel - Icom IC-41S Instruction Manual

2

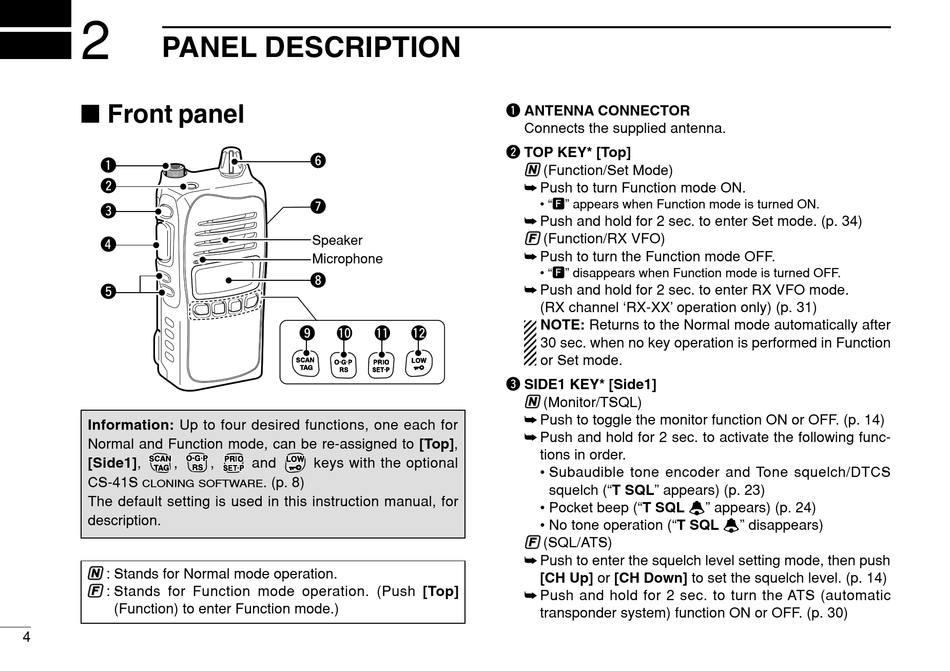

PANEL DESCRIPTION

I Front panel

q
w
e
r
t
Information: Up to four desired functions, one each for
Normal and Function mode, can be re-assigned to [Top],
[Side1], ,
CS-41S
CLONING SOFTWARE
The default setting is used in this instruction manual, for
description.
N N N N : Stands for Normal mode operation.
F F : Stands for Function mode operation. (Push [Top]
F F
(Function) to enter Function mode.)
4
y
u
Speaker
Microphone
i
o !0 !1
, and keys with the optional
. (p. 8)
q ANTENNA CONNECTOR
Connects the supplied antenna.
w TOP KEY* [Top]
N N (Function/Set Mode)
N N
➥ Push to turn Function mode ON.
• "F" appears when Function mode is turned ON.
➥ Push and hold for 2 sec. to enter Set mode. (p. 34)
F F (Function/RX VFO)
F F
➥ Push to turn the Function mode OFF.
• "F" disappears when Function mode is turned OFF.
➥ Push and hold for 2 sec. to enter RX VFO mode.
(RX channel 'RX-XX' operation only) (p. 31)
NOTE: Returns to the Normal mode automatically after
!2
30 sec. when no key operation is performed in Function
or Set mode.
e SIDE1 KEY* [Side1]
N N (Monitor/TSQL)
N N
➥ Push to toggle the monitor function ON or OFF. (p. 14)
➥ Push and hold for 2 sec. to activate the following func-
tions in order.
• Subaudible tone encoder and Tone squelch/DTCS
squelch ("T SQL" appears) (p. 23)
• Pocket beep ("T SQL ë" appears) (p. 24)
• No tone operation ("T SQL ë" disappears)
F F (SQL/ATS) F F
➥ Push to enter the squelch level setting mode, then push
[CH Up] or [CH Down] to set the squelch level. (p. 14)
➥ Push and hold for 2 sec. to turn the ATS (automatic
transponder system) function ON or OFF. (p. 30)
