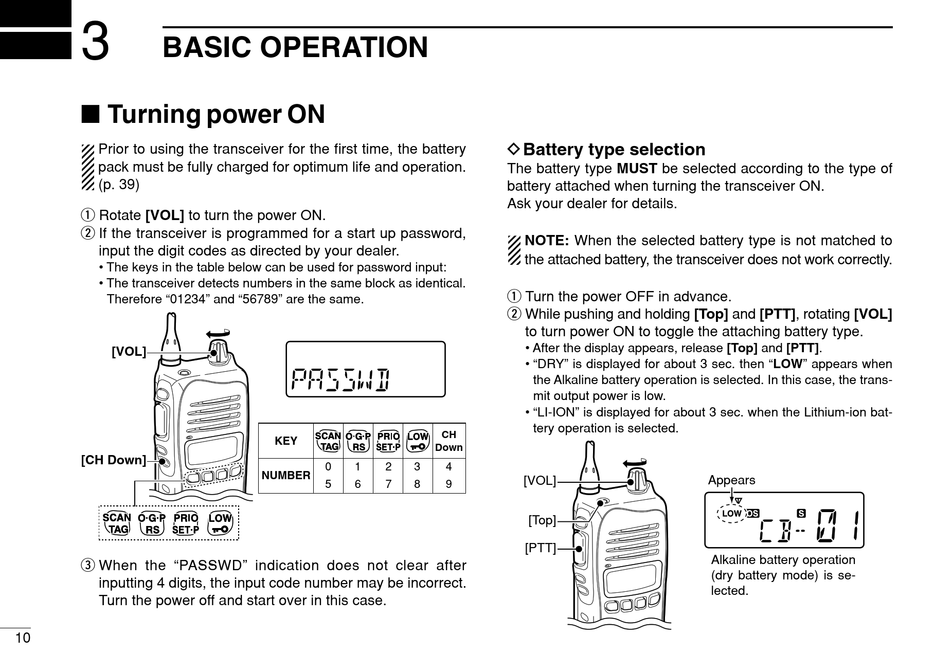

BASIC OPERATION

I Turning power ON

Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 39)
q Rotate [VOL] to turn the power ON.
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• The keys in the table below can be used for password input:
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
[VOL]
[CH Down]
e When the "PASSWD" indication does not clear after
inputting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
10
CH
KEY
Down
0 1 2 3
NUMBER
5 6 7 8
DBattery type selection
The battery type MUST be selected according to the type of
battery attached when turning the transceiver ON.
Ask your dealer for details.
NOTE: When the selected battery type is not matched to
the attached battery, the transceiver does not work correctly.
q Turn the power OFF in advance.
w While pushing and holding [Top] and [PTT], rotating [VOL]
to turn power ON to toggle the attaching battery type.
• After the display appears, release [Top] and [PTT].
• "DRY" is displayed for about 3 sec. then "LOW" appears when
the Alkaline battery operation is selected. In this case, the trans-
mit output power is low.
• "LI-ION" is displayed for about 3 sec. when the Lithium-ion bat-
tery operation is selected.
4
[VOL]
9
[Top]
[PTT]
Appears
Alkaline battery operation
(dry battery mode) is se-
lected.
