Set Mode; I Set Mode; D Set Mode Operation - Icom IC-41S Instruction Manual

9

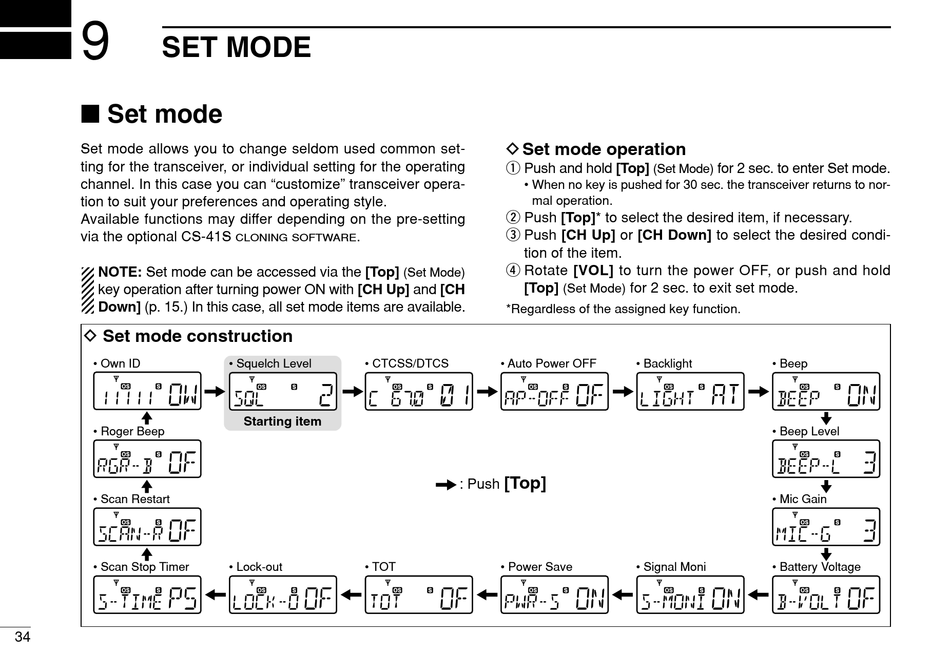

SET MODE

I Set mode

Set mode allows you to change seldom used common set-
ting for the transceiver, or individual setting for the operating
channel. In this case you can "customize" transceiver opera-
tion to suit your preferences and operating style.
Available functions may differ depending on the pre-setting
via the optional CS-41S
NOTE: Set mode can be accessed via the [Top]
key operation after turning power ON with [CH Up] and [CH
Down] (p. 15.) In this case, all set mode items are available.
D Set mode construction
• Own ID
• Roger Beep
• Scan Restart
• Scan Stop Timer
34
.
CLONING SOFTWARE
(Set Mode)
• Squelch Level • CTCSS/DTCS
Starting item
• Lock-out • TOT

D Set mode operation

q Push and hold [Top]
• When no key is pushed for 30 sec. the transceiver returns to nor-
mal operation.
w Push [Top]* to select the desired item, if necessary.
e Push [CH Up] or [CH Down] to select the desired condi-
tion of the item.
r Rotate [VOL] to turn the power OFF, or push and hold
[Top] for 2 sec. to exit set mode.
(Set Mode)
*Regardless of the assigned key function.
• Auto Power OFF • Backlight
[Top]
: Push
• Power Save • Signal Moni
for 2 sec. to enter Set mode.
(Set Mode)
• Beep
• Beep Level
• Mic Gain
• Battery Voltage
