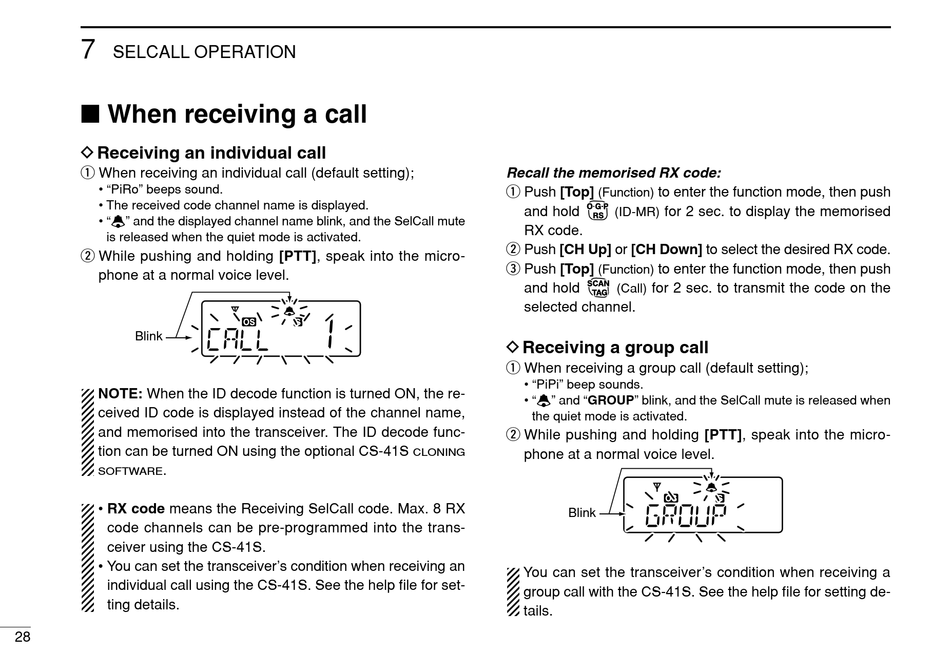

I When Receiving A Call - Icom IC-41S Instruction Manual

7
SELCALL OPERATION

I When receiving a call

D Receiving an individual call
q When receiving an individual call (default setting);
• "PiRo" beeps sound.
• The received code channel name is displayed.
• "ë" and the displayed channel name blink, and the SelCall mute
is released when the quiet mode is activated.
w While pushing and holding [PTT], speak into the micro-
phone at a normal voice level.
Blink
NOTE: When the ID decode function is turned ON, the re-
ceived ID code is displayed instead of the channel name,
and memorised into the transceiver. The ID decode func-
tion can be turned ON using the optional CS-41S
.
SOFTWARE
• RX code means the Receiving SelCall code. Max. 8 RX
code channels can be pre-programmed into the trans-
ceiver using the CS-41S.
• You can set the transceiver's condition when receiving an
individual call using the CS-41S. See the help file for set-
ting details.
28
Recall the memorised RX code:
q Push [Top]
and hold
RX code.
w Push [CH Up] or [CH Down] to select the desired RX code.
e Push [Top]
and hold
selected channel.
D Receiving a group call
q When receiving a group call (default setting);
• "PiPi" beep sounds.
• "ë" and "GROUP" blink, and the SelCall mute is released when
the quiet mode is activated.
w While pushing and holding [PTT], speak into the micro-
CLONING phone at a normal voice level.
Blink
You can set the transceiver's condition when receiving a
group call with the CS-41S. See the help file for setting de-
tails.
to enter the function mode, then push
(Function)
for 2 sec. to display the memorised
(ID-MR)
to enter the function mode, then push
(Function)
for 2 sec. to transmit the code on the
(Call)
