Euphonix Version 4 Supplement to the R-1 Operation Manual

To export a single Sheet as an AES 31 EDL:

1. Right-click on the Sheet name in the Navigation Bar and select Export to AES 31.

The Export dialog appears.

2. Select the desired Export options:

Export Title file only (when selected, the next two options are inactive)

Export R-1 Title (Puts a version of the R-1 title file with the ADL file and Au-

dio files for later use on an R-1)

Overwrite existing audio files

Export all audio files in Titles library

Export all tracks (toggles with next option)

Export selected tracks (toggles with previous option)

Set export path (sets default export folder)

Browse (specify a folder other than default export folder)

File name (change exported file name)

3. Click Export.

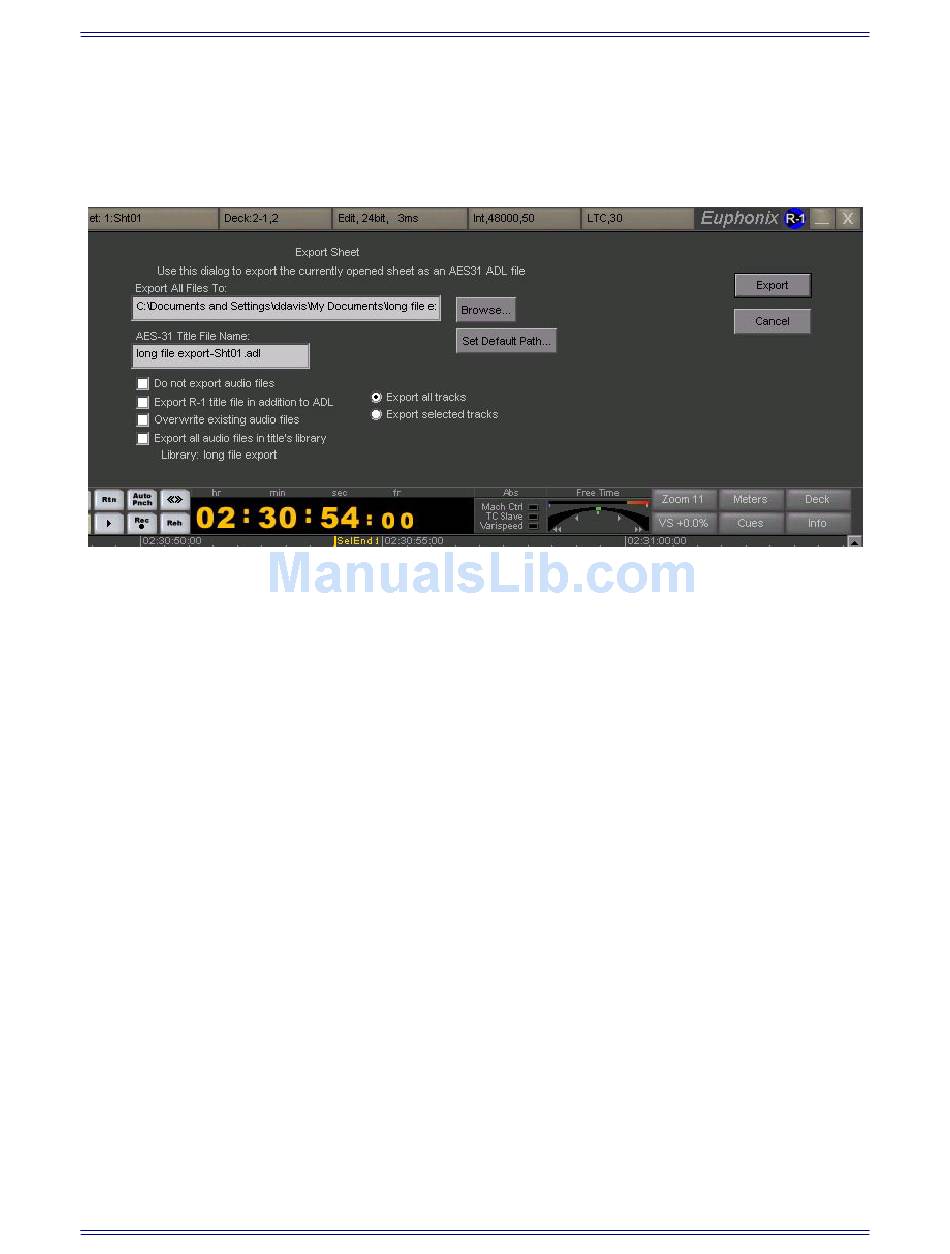

Figure 4-1 Export Sheet dialog
