Euphonix R-1 Remote Manual

D control unit for the r-1 multitrack recorder
Hide thumbs Also See for R-1 Remote:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual

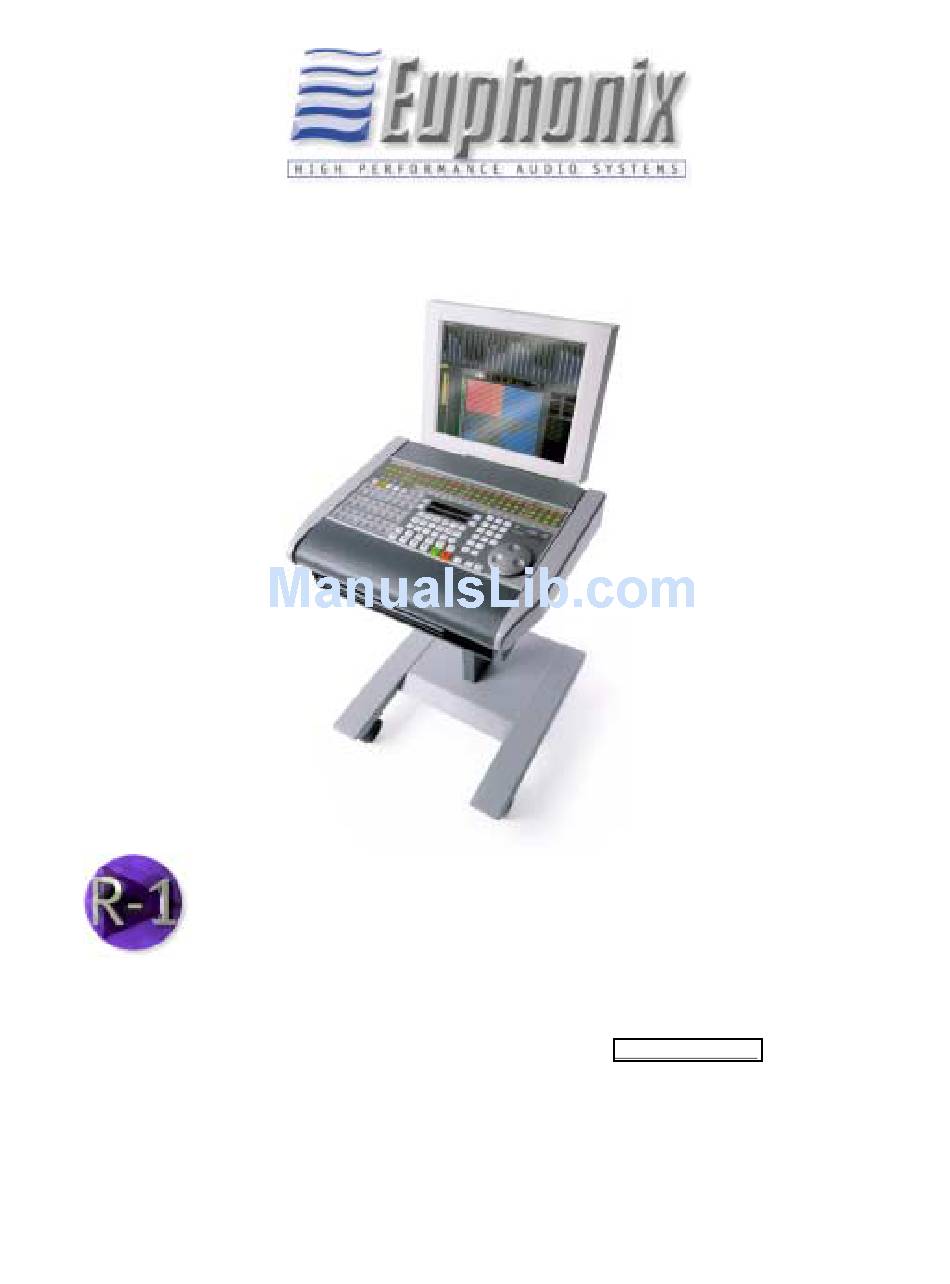

R-1 Remote Manual
Version 2.0
Part# 840-06268-02 rev B
Publish date: Jan 2001
Euphonix Inc. 220 Portage Avenue Palo Alto , CA 94306
Tel: (650)855-0400 Fax: (650) 855-0410 Web Page:
www.euphonix.com
In the interest of continued product development, Euphonix reserves the right to make improvements in this
manual and the product it describes at any time, without notice or obligation.
R-1, Audio Deck, Studio Hub are trademarks of Euphonix Inc.
©1999 Euphonix Inc. All rights reserved worldwide. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any
means without written permission of Euphonix Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-1 Remote and is the answer not in the manual?

Questions and answers

Related Manuals for Euphonix R-1 Remote

Summary of Contents for Euphonix R-1 Remote

  • Page 1 Tel: (650)855-0400 Fax: (650) 855-0410 Web Page: www.euphonix.com In the interest of continued product development, Euphonix reserves the right to make improvements in this manual and the product it describes at any time, without notice or obligation. R-1, Audio Deck, Studio Hub are trademarks of Euphonix Inc.

  • Page 2: Table Of Contents

    RS-422 to RS-232 Converter......................10 KVM Extender Hookup Instructions ....................11 KVM Extender Hookup Diagram ...................... 12 Stand Height and Angle Adjustments ..................... 13 Power On Sequence .......................... 14 Special Setup Precaution ......................... 14 ©1999 Euphonix, Inc. Remote Manual Page 2...

  • Page 3: R-1 Remote

    Remote is also avaiable with a dedicated stand that features a monitor shelf and a slide out tray for keyboard and Trackball. The Remote stand combines all of the R-1 control interfaces into one compact integrated unit that can be moved easily on its mounted wheels. ©1999 Euphonix, Inc. Remote Manual Page 3...
  • Page 4 100 meters (328 feet) the rack mount units. The extender consists of small Transmitter and Receiver modules that are connected via a thin RJ45 cable which carries the signals of the video monitor, RS-422, keyboard, and Trackball between the modules. ©1999 Euphonix, Inc. Remote Manual Page 4...

  • Page 5: Physical Specifications

    Physical Specifications Dimensions - Remote Height: 8.6 inches Width: 16.5 inches Depth: 2.5 inches including power supply, 1.6 inches case only Weight: 7 lbs Top View ©1999 Euphonix, Inc. Remote Manual Page 5...

  • Page 6: Dimensions - Stand

    Dimensions – Stand Height: 30.7"-36.7" adjustable Width: 21.5 inches Depth: 24” Weight: 60 lbs with cables 10" + 3" Adjustable height + 6" Adjustable height 22" 28.5" 26.62" 22.5" 22" 23.75" 22.5" 20" ©1999 Euphonix, Inc. Remote Manual Page 6...

  • Page 7: Rear Panel Connectors - Remote Head

    110volts to 240 volts, 50 or 60 cycle, can be input. On/Off Power Switch Rocker switch is accessible through hinged door if Remote is stand mounted. RS-422 Connector Pin Out Diagram RS-422 Out/Merge RS-422 Out ©1999 Euphonix, Inc. Remote Manual Page 7...

  • Page 8: Rear Panel Connectors - Stand Base

    KVM Extender transmitter. Power Connector (IEC) The IEC power connector accepts standard IEC power cords. A switching power supplied is used so voltages from 110volts to 240 volts, 50 or 60 cycle, can be input. ©1999 Euphonix, Inc. Remote Manual Page 8...

  • Page 9: Technical Specifications

    Technical Specifications Power Requirements 110, 220, or 240 VAC at 50 or 60 Hz Environmental Requirements 5 to 35 degree Centigrade ©1999 Euphonix, Inc. Remote Manual Page 9...

  • Page 10: User Reference

    "Remote". (If KVM Extender is installed, this converter must be moved to the RS-232 port marked "|O|O|" on the KVM Receiver) K422-99 Connect to the provided SYSTEMS RS-422 cable from the Remote. RS-422 ©1999 Euphonix, Inc. Remote Manual Page 10...

  • Page 11: Kvm Extender Hookup Instructions

    CAT5 connection is made. Start up the R1 system and verify that all signals are working properly, including the keyboard, mouse/trackball, video, and remote. ©1999 Euphonix, Inc. Remote Manual Page 11...

  • Page 12: Kvm Extender Hookup Diagram

    Receiver RS-422 to RS- (in Remote Wire Tray) 232 Converter Remote I/O |O|O| Connected internally in Wire Tray To Remote To Keyboard To Trackball To Video Monitor All cables routed through Stand pillar ©1999 Euphonix, Inc. Remote Manual Page 12...

  • Page 13: Stand Height And Angle Adjustments

    Six screw holes are provided, allowing for 4 mounting positions in a range of 3” vertical. Use the included Velcro strips to attach the monitor to the monitor shelf. 10" Monitor Shelf Angle Adjustment Lever 6” Adjustable Height ©1999 Euphonix, Inc. Remote Manual Page 13...

  • Page 14: Power On Sequence

    Particularly in a stand mounted Remote installation where the Remote will be moved frequently, it is important that connections at the wire tray are secured to prevent accidental dislodging. ©1999 Euphonix, Inc. Remote Manual Page 14...
