Euphonix Version 4 Supplement to the R-1 Operation Manual
On the Remote
Time
then
Display
1. Press the Time Display button on the Remote.
2. Press the Select button to enter the Format/Res (time format and resolution)
menu.
3. Use +/- to scroll to Bars, Beats, Ticks, then press Select again.
If selecting the Bars, Beats, Ticks display for the first time within this Title,
you will see a the default tempo region: tempo = 120 bmp in 4/4 time counted
from the zero position in Absolute Time. When entering a locate time in bars
and beats, you must enter the bar and the beat to locate to. Entering just the bar
will not work. For example, to locate to bar 54 beat 1, you must enter 5401. To
locate to a bar 54 beat 1 tick 36 you would enter 5401.036
Now you must edit the Tempo Map to match the music you are about to record,
which can be done only in the software.
4. Click at the top of the Current Time Display (on the time units) to toggle
through the different format and display resolution options available.
Alternately, right-click at the top of the display and select Bars, Beats, Ticks
(the last popup menu item).
5. Click on the Map button above the Current Time Display (when in Bars,
Beats, Ticks mode).
The Edit Tempo Map window opens.
Trim
then
Select

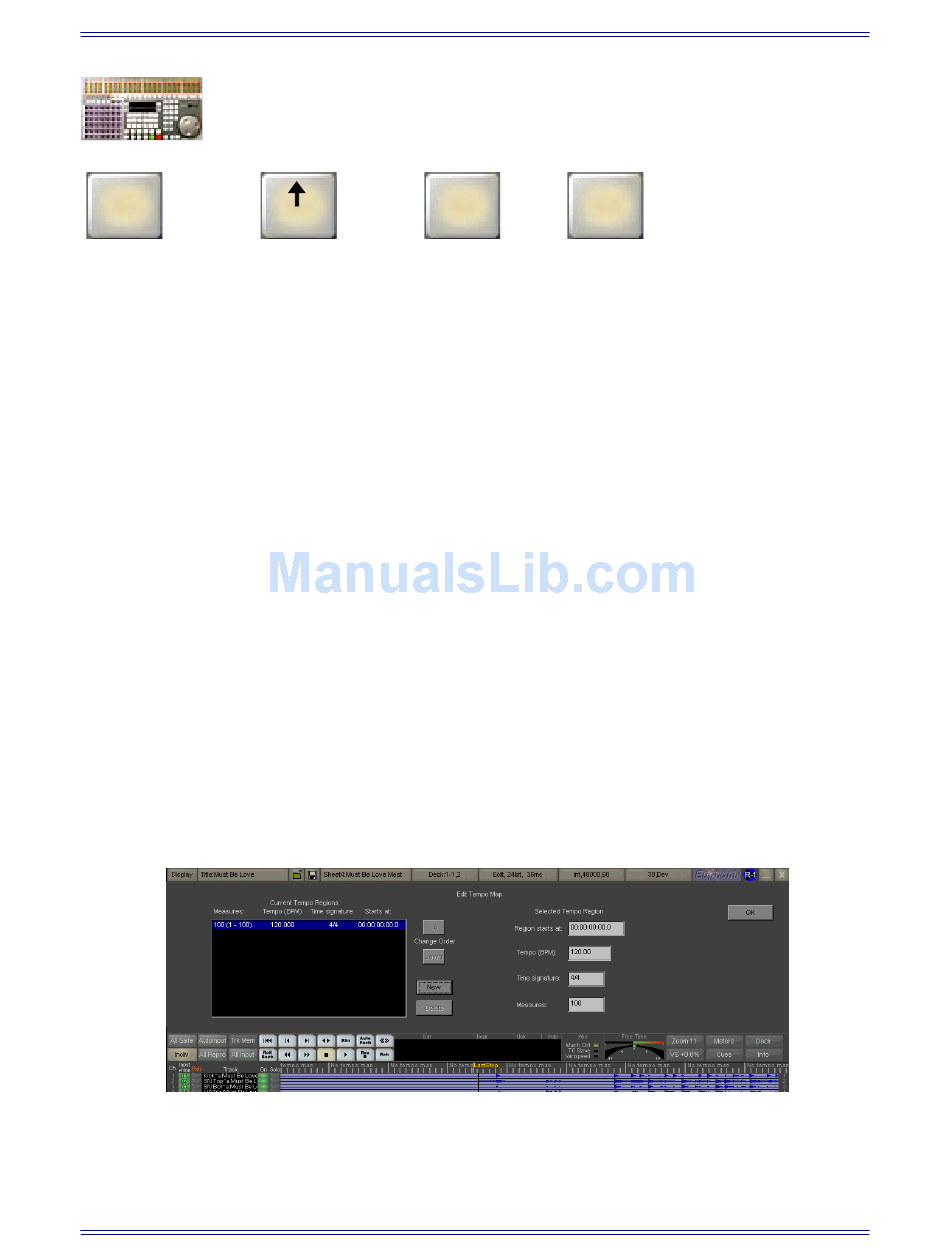

Figure 3-10 Edit Tempo Map Window
-
Trim
or
+
20
Display Features
