Example:
1. Under Studio Hub Output Connections, select MADI Out #3.
2. Under MADI Devices in System, navigate to and select the MADI In #1 of
the Audio Deck #1.
3. Click the Declare Connection button to solidify the connection.
To erase a connection, select Unconnected Port in the MADI Devices in System win-
dow and then click the Declare Connection button.
8.4

Creating Custom Routes

The Routing tab has Signal Sources and Signal Destinations areas.

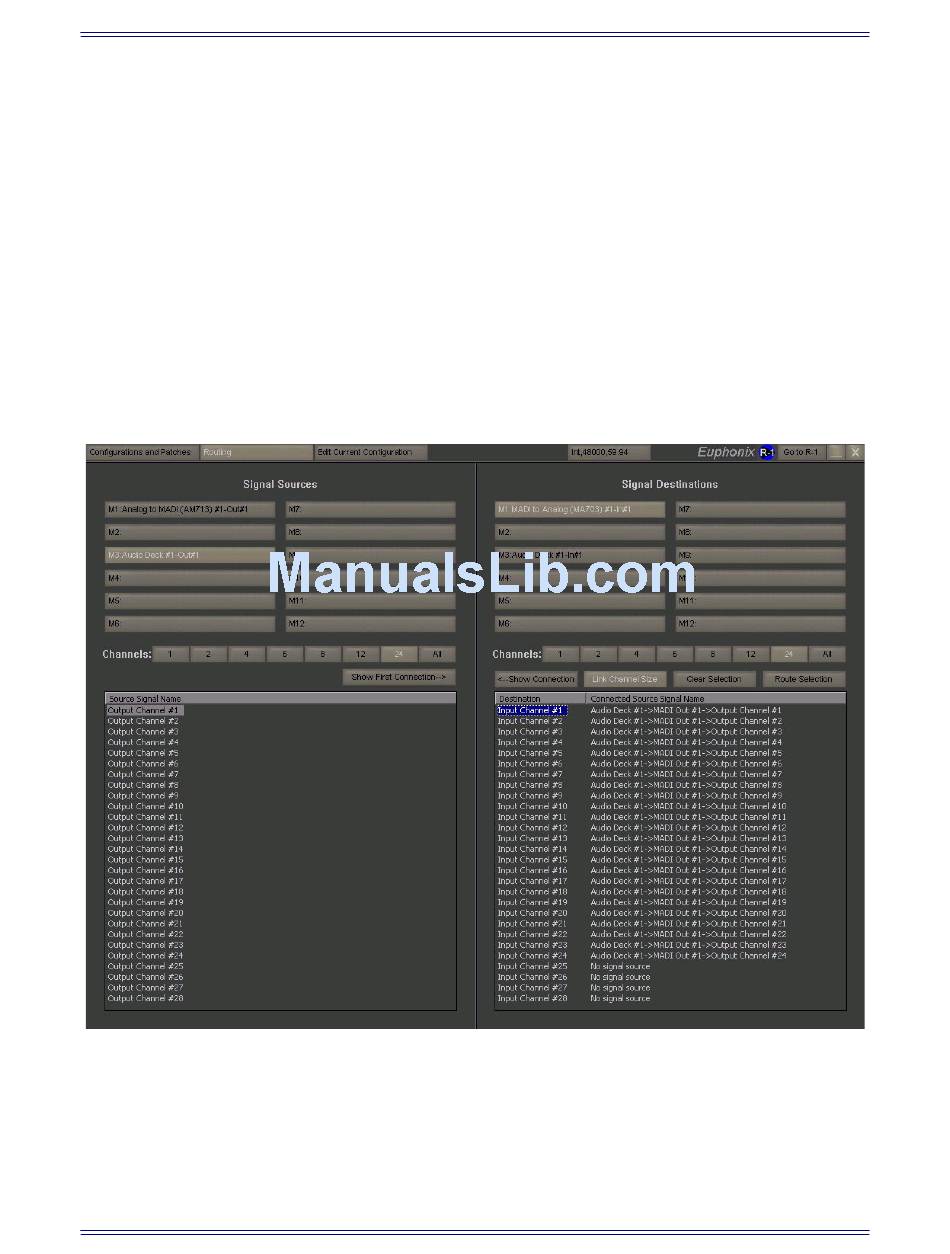

Figure 8-7 Routing tab
71
Miscellaneous Features
