Introduction, cont'd
The installed Cable Cubbies fi t nearly fl ush within a table or
podium top, storing the AAPs and cables out of the way and
out of sight. To access the AAPs and connectors, lift the lid
(fi gure 1-2). Half-moon cutouts in the lid allow you to run
cables in or out and then close the lid. For Cable Cubby 300s,
600s, and 800s, you can lower the lid into its recessed position.
Extron
Cable Cubby 800
Hideaway Cable
Access Enclosure
Mounted
through a table
or podium

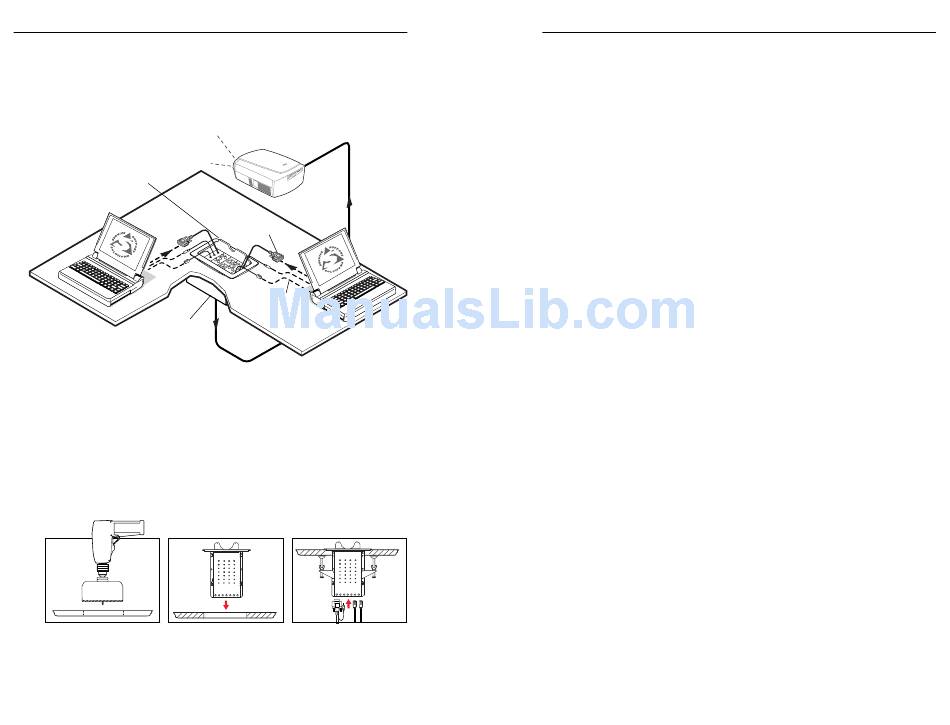

Figure 1-2 — Typical Cable Cubby 800 application
The Cable Cubby 300 is available with either a round or a
rectangular top. The other cubbies all have rectangular tops
only. Preparing the table to install a Cable Cubby 300C (round)
requires simply drilling a hole in the table with a 6-inch hole
saw (fi gure 1-3). Preparing the table to install a square cubby
requires routing a square hole in the table top. Sheet metal
routing templates are available on request for all models at no
cost.
1 2
Figure 1-3 — Cable Cubby 300C mounting
®
1-4 Cable Cubby Products • Introduction
15-pin HD Cable
Audio Cable,
Network Cable
3

Features

• Easy access to cables and AAPs
• Durable mechanical movement
• Cable Cubby 300, 600, and 800 available in a variety of
surface fi nishes
• Compact size
• Flexible installation of Extron passive AAPs
• Grounded AC receptacle(s)
• UL/CUL listing
• CSA certifi cation
Cable Cubby ® Products • Introduction 1-5
