Extron electronics Captive Screw Plug to 3.5 mm Mini Jack Adapter CSM 6 Specification Sheet

Captive screw plug to 3.5 mm mini jack adapter

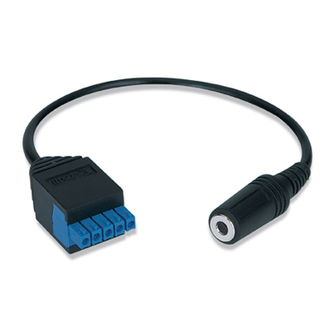

The Extron CSM 6 (PN 26-620-01) is a high quality, captive screw plug to a 3.5 mm mini jack
adapter, with 6" (15 cm) cable length.
It converts a 5 pole captive screw connection to a female mini jack, so that an Extron
3.5 mm mini plug to mini plug audio cable can be used for quick and convenient connection.
The captive screw end can plug into input or ouput connectors of an Extron product.
3.5 mm Mini
Stereo
L
R
Captive Screw
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
USA
714.491.1500
www.extron.com Fax 714.491.1517
Captive screw plug to RCA female audio adapter
The Extron CSR 6 (PN 26-575-01) is a high quality, captive screw plug to an RCA female
audio adapter, with 6" (15 cm) cable length.
It converts a 5 pole captive screw connection to RCA female audio connectors for quick and
convenient balanced (captive screw) to unbalanced (RCA) audio connections.
The captive screw plug works with input or ouput connectors of many Extron products.
RCA female
audio connectors
L
R
Captive Screw
CSM 6
Wiring diagram for CSM 6
+ 1
-
2
3
+
4
-
5
Unbalanced
Extron Electronics, Europe Extron Electronics, Asia
135 Joo Seng Road, #04-01
Beeldschermweg 6C
3821 AH Amersfoort PM Industrial Building
The Netherlands Singapore 368363
+31.33.453.4040 +65.6383.4400
Fax +31.33.453.4050 Fax +65.6383.4664
CSR 6
Wiring Diagram for CSR 6
+
1
−
2
3
+
4
−
5
Unbalanced
Captive Screw
Connector
R (ring)
L (tip)
Ground
(sleeve)
Mini Jack
Extron Electronics, Japan
Kyodo Building
16 Ichibancho
Chiyoda-ku, Tokyo 102-0082 Japan
+81.3.3511.7655
Fax +81.3.3511.7656
Captive Screw
Connector
Ground
Center
L
RCA Jack
(white)
Ground
Center
R
RCA Jack
(red)
68-1174-01
Rev. C
11 07
