- Page 1 User Guide Architectural Connectivity Cable Cubby 300C ® Cable Cubby 300S ® Cable Cubby ® Cable Cubby ® Cable Access Enclosures 68-1558-01 Rev. A 10 12 Get other manuals https://www.bkmanuals.com...
- Page 2 Safety Instructions Safety Instructions • English Chinese Simplified （简体中文） 警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险 WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage 电压， 有触电危险。 within the product’s enclosure that may present a risk of electric shock.
- Page 3 NOTE: A note draws attention to important information. Specifications Availability: Product specifications are available on the Extron website, www.extron.com. Copyright © 2012 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. Get other manuals https://www.bkmanuals.com...
- Page 4 Get other manuals https://www.bkmanuals.com...
-
Page 5: Table Of Contents
Preparing the Table ..........5 Preparing the Table with a Router ....6 Preparing the Table with a Hole Saw (Cable Cubby 300C only) ....... 7 Installing the Cables and AAPs ......7 AAP Shelf Brackets ........7 Installing the Power Module ......8 Installing the Cables ........ -
Page 6: Introduction
Cable Cubby 300 USA/domestic model — Three single space AAPs • Cable Cubby 300S — Square cover (see figure • Cable Cubby 300C — Circular (round) cover • • Cable Cubby 300 (AC module optional) — Five single-space AAPs Cable Cubby 300S — Square cover •... - Page 7 Figure 1. Cable Cubby 300S US/domestic Enclosure The AAP spaces inside the Cable Cubby allow you to customize the enclosure to meet your unique needs. The split AAPs (included) can store almost any type of cable you might encounter. The Extron line of passive AAPs allows you to customize the AAP with almost any kind of pass-through connectivity you may need.
-
Page 8: Features

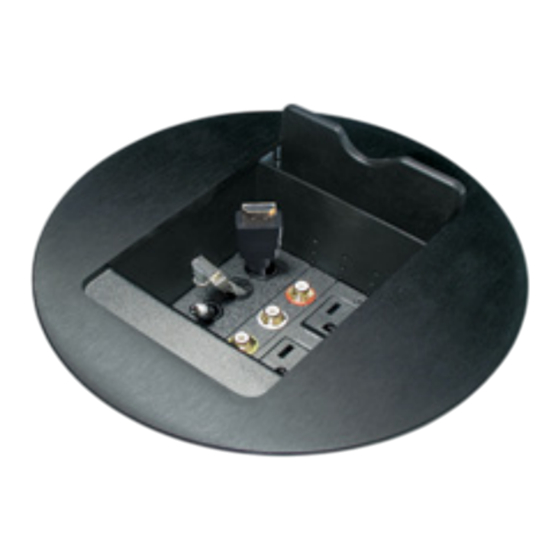

Figure 3. Cable Cubby 300C Mounting Features • Easy access to cables and AAPs • Compatible with several available AAP modules • Optional retractor available • Compact size • Flexible installation of Extron passive AAPs • Available universal AC outlet is compatible with a variety of AC plug types •... -
Page 9: Installation
Installation This section covers the following topics: Installation Overview • • Preparing the Routing Template • Preparing the Table • Installing the Cables and AAPs • Mounting the Cable Cubby Installation Overview Install and set up the Cable Cubby enclosures as follows: If you plan to use a mounting template that has not been prepared, prepare the template (see “Preparing the Routing... -
Page 10: Preparing The Table
The preferred and recommended method for preparing the table for square Cable Cubby models is to use the appropriate Extron routing template and a router. For the Cable Cubby 300C, you may use the routing template and a router or use a 6-inch hole saw. -
Page 11: Preparing The Table With A Router
Preparing the Table with a Router Prepare the table with a router as follows: Potential damage to property. The routing templates for the various ATTENTION: Cable Cubby models are not interchangeable. If you use the wrong template, you will cut an improperly sized hole. If you use a larger template than required, the cut will result in gaps in the table surface on either side of the enclosure. -
Page 12: Preparing The Table With A Hole Saw (Cable Cubby 300C Only)
Preparing the Table with a Hole Saw (Cable Cubby 300C Only) Prepare the table with a hole saw as follows: On the tabletop or other installation surface, mark the 6 inch circle, then find and mark the center of the circle. -
Page 13: Installing The Power Module
The simplest way to install the cables and AAPs in the Cable Cubby 300, 600, and 800 is to populate the shelf brackets with split or standard AAPs outside the cubby and then install the populated AAP shelf assembly into the cubby. NOTE: On US/domestic models, the power module takes up two AAP spaces. -
Page 14: Installing The Cables
Installing the Cables Three half-moon cutouts in each set of cable pass-through (split) AAPs loosely channel three cables in the Cable Cubby. Each channel is padded with a split grommet to prevent cable wear. Each channel and each associated split grommet is a different size (see figure 9). -
Page 15: Installing The Aaps
Figure 10 NOTE: shows the installation of a Cable Cubby 300C. Cable Cubby 300S, 600, and 800 installations are similar. Remove the plastic strips that protect the corners of the enclosure and the plastic film on the finished surfaces. If a sticky residue remains, remove it with an appropriate metal cleaning product. - Page 16 Mounting Surface Screw Clamp Figure 10. Cable Cubby 300C, Installation View From the underside of the table, reinstall the screw clamps on the enclosure at a height at which the clamp will reach the underside of the tabletop. ATTENTION: Potential damage to property. Do not overtighten the Phillips head screws on the screw clamps.
-
Page 17: Maintenance And Modifications
Maintenance and Modifications This section covers the following topics: • Removing and Replacing the Cable Cubby • Replacing Cables or an AAP Adding an Additional Power Module (CC 600, CC 800) • The Cable Cubby can be modified after installation to change cables, to replace an AAP, or to add a second power module. - Page 18 Extron Cable Cubby 800 Pins Screw Clamp Phillips Head Screw (Secures AAP Shelf Assembly and Power Module.) Figure 11. Removing the Cubby and its Shelves Lift the enclosure from the table. CAUTION: Risk of personal injury. The flanged edges of the top of the surface enclosure are sharp.
-
Page 19: Replacing Cables Or An Aap
ATTENTION: Potential damage to property. Do not overtighten the Phillips head screws on the screw clamps. Overtightening can bend the horizontal flange of the screw clamp. Snugly tighten the Phillips head screws on the screw clamps to secure the enclosure to the surface. - Page 20 Single Power Module Two Power Modules UNSWITCHED 230~50/60Hz UNSWITCHED 230~50/60Hz UNSWITCHED 230~50/60Hz Two AAP Two AAP Three AAP Space Shelf Space Shelf Space Shelf Figure 12. Cable Cubby 600 with Power Module(s) Figure 13 shows the typical configurations of one and two international power modules installed in a Cable Cubby 800 with no pre-installed power module.
- Page 21 After Before UNSWITCHED UNSWITCHED UNSWITCHED 100-240V/ 5AMAX 100-240V/ 5AMAX 100-240V/ 5AMAX UNSWITCHED UNSWITCHED UNSWITCHED 100-240V/ 5AMAX 100-240V/ 5AMAX 100-240V/ 5AMAX Four AAP Three AAP Three AAP Space Shelf Space Shelf Space Shelf UNSWITCHED UNSWITCHED 100-240V/ 5AMAX 100-240V/ 5AMAX UNSWITCHED UNSWITCHED 100-240V/ 5AMAX 100-240V/ 5AMAX Two AAP...
- Page 22 If the Phillips head screws on the front and rear of the cubby are blocked by the table, remove the cubby from the table (see “Removing and Replacing the Cable Cubby,” steps 1 through 4, on page 12). Before you add an additional power module, you must make room for the Cable Cubby by eliminating two or three AAP spaces and the AAP shelf brackets that support them.
-
Page 23: Reference Information
Cable Cubby 300C Part Number Cable Cubby 300C/domestic (black anodized finish) 60-527-01 Cable Cubby 300C (black, AC module optional) 60-713-00 Cable Cubby 300C (brushed aluminum, AC module optional) 60-713-10 Cable Cubby 600 Part Number Cable Cubby 600 US/domestic (black anodized finish) 60-525-01... -
Page 24: Included Parts
Included Parts The Cable Cubby includes the Cable Cubby Setup Guide and a selection of shelf brackets, cable pass-through AAPs, grommets, and hole plugs that vary depending on the Cable Cubby model. See the table below for included parts: Large Small Small Medium... -
Page 25: Top Plate Dimensions
There are two preferred and recommended methods for cutting the table: using the appropriate metal routing template (see figure 19 below and Installation on page 4), and using a router or a hole saw (Cable Cubby 300C only). CABLE CUBBY 300 USER ACCESS HSA 200... - Page 26 User Access TEMPLATE IS NOT FULL SIZE. TEMPLATE IS NOT FULL SIZE. Figure 18. Cable Cubby 300S Cut-Out Template Figure 19. Cable Cubby 300C Cut-Out Template Cut-Out Template for Cut-Out Template for Cable Cubby 600 Cable Cubby 800 6.96" (17.7 cm) 8.36"...
-
Page 27: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
