Packaging for Shipment, cont'd

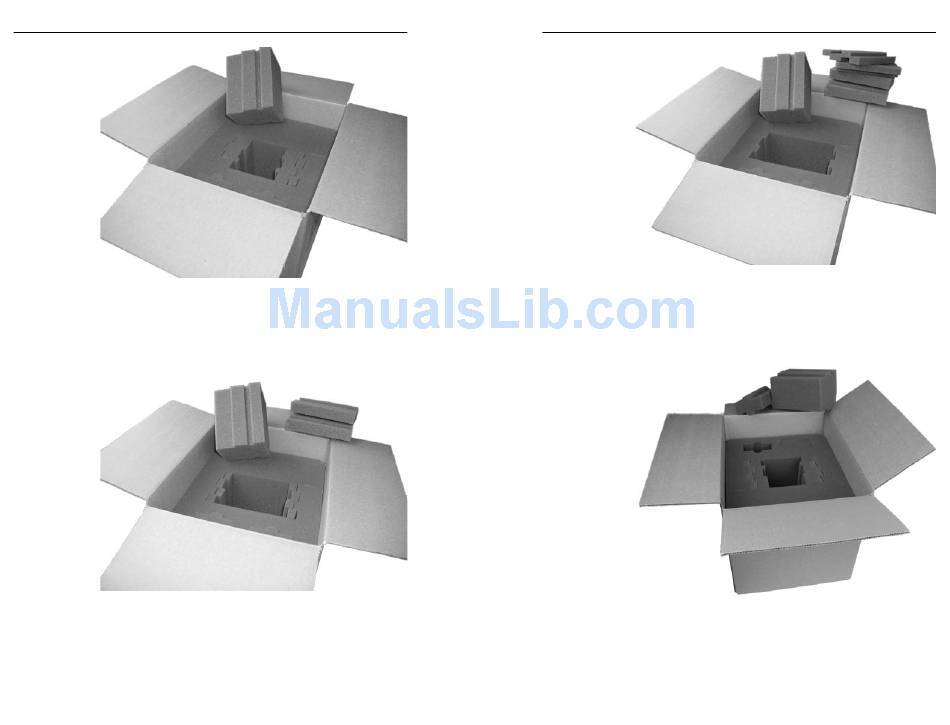

Figure B-3 — Removing center foam
6. CC 600, 800 only — Remove and discard the inner side
foam sections of the cushion in the carton (fi gure B-4). If
you are returning a Cable Cubby 600 model, this is the
correct fi t. Proceed to step 8.
Figure B-4 — Removing inner side foams
7. CC 800 only — Remove and discard the outer side foam
sections of the cushion in the carton (fi gure B-5). This is
the correct fi t for a Cable Cubby 800 model. Proceed to
step 8.
®
B-4 Cable Cubby Products • Packaging for Shipment
Figure B-5 — Removing outer side foams
8. If you will not install a replacement Cable Cubby in this
location, remove and retain one of the small foam sections
to the front or rear of the cubby opening in the cushion in
the carton (fi gure B-6).
Figure B-6 — Removing screw clamp area foam
9. CC 300, 600, 800 only — Place the two screw clamps from
step 2 into the screw clamp opening in the foam cushion in
the carton.
