Maintenance and Modifi cations
The Cable Cubby can be modifi ed in the future to change cables,
to replace an AAP, or to add a second power module. These
modifi cation may require removing the cubby from the table.

Removing and Replacing the Cable Cubby

You may need to remove the cubby from the table in which
it is mounted to replace cables or AAPs, to adjust the height
of the AAP assemblies, or to install a second power module.
Figure 3-1 shows removal of the Cable Cubby 300, 600, or 800
from the table and removal of the AAP shelf assembly and
power module.
N
The Cable Cubby 200 is screwed to the top surface of the
table. Its shelves are fi xed in position and not removable.
Remove and replace the Cable Cubby for maintenance as
follows:
W
Ensure that AC power is disconnected before
servicing the Cable Cubby.
1. Cable Cubby 300, 600, and 800 — Loosen
the locking thumbscrews on the screw
clamps to unlock the clamp (fi gure 3-1).
2. Cable Cubby 300, 600, and 800 — Loosen
the screw clamps.
3. Cable Cubby 300, 600, and 800 —
Remove the screw clamps on both sides of the enclosure.
®
3-2 Cable Cubby Products • Maintenance and Modifi cations
Extron
Cable Cubby 800
Phillips Head Screw
(Secures AAP Shelf Assembly
and Power Module.)

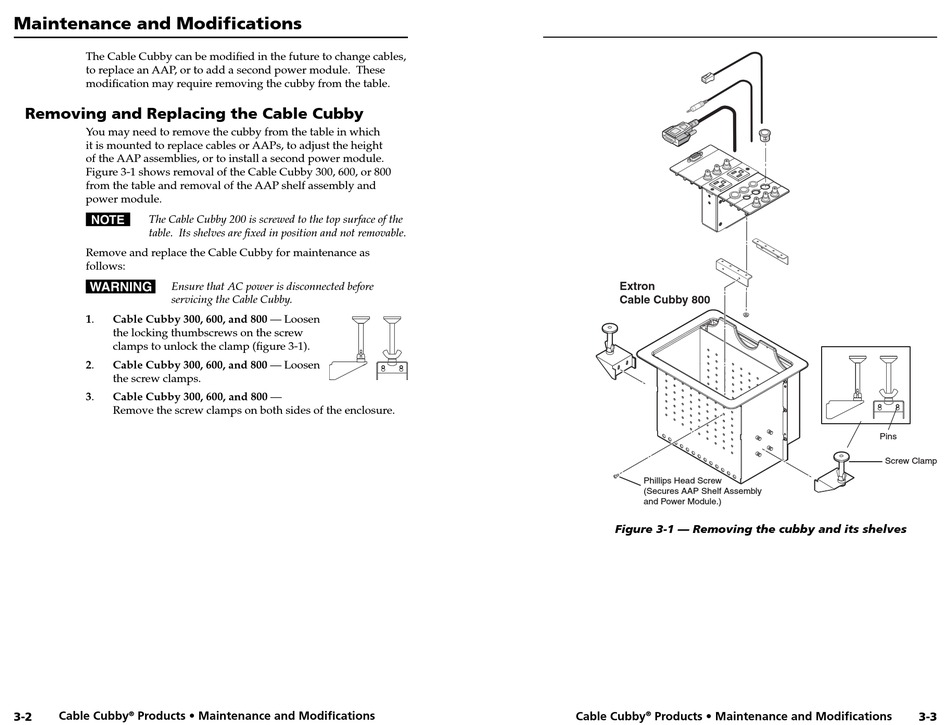

Figure 3-1 — Removing the cubby and its shelves
Cable Cubby ® Products • Maintenance and Modifi cations
Pins
Screw Clamp
3-3
