Pro WFA 100
®

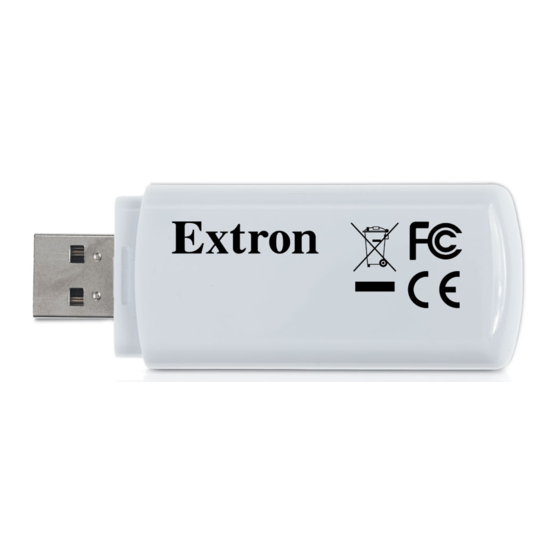

The ShareLink
Pro WFA 100 is a Wi-Fi
®
Miracast™ adapter that enables anyone
to share content from a Windows 10
device to a ShareLink Pro device without installing any software.

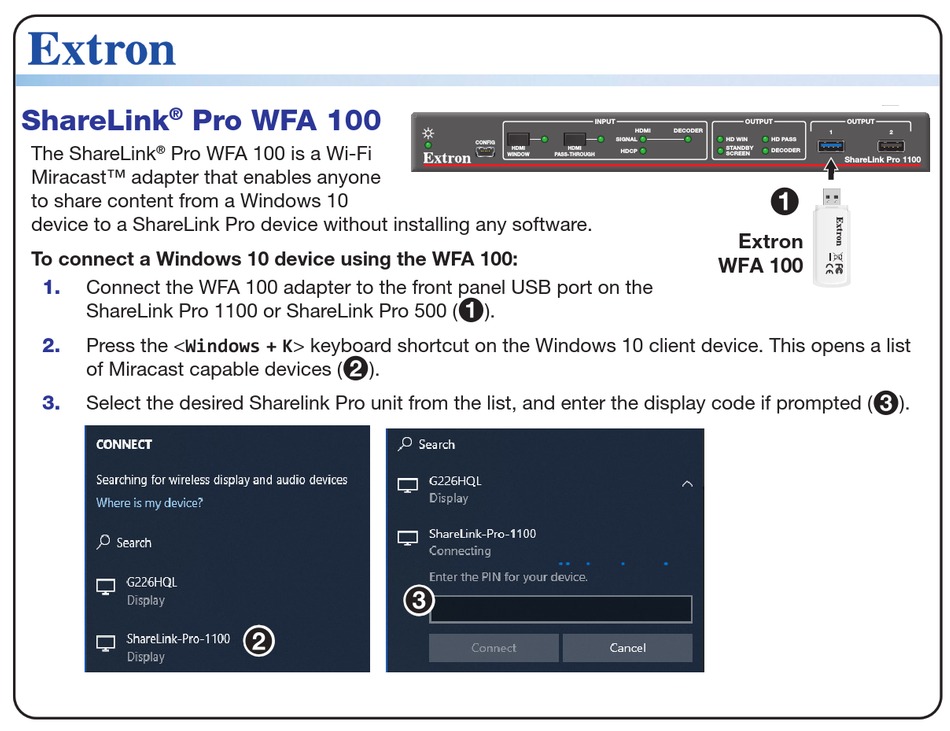

To connect a Windows 10 device using the WFA 100:
1.
Connect the WFA 100 adapter to the front panel USB port on the
ShareLink Pro 1100 or ShareLink Pro 500 (
2.
Press the <Windows + K> keyboard shortcut on the Windows 10 client device. This opens a list
of Miracast capable devices (
3.
Select the desired Sharelink Pro unit from the list, and enter the display code if prompted (
2
).
3 3
2 2
INPUT
HDMI
SIGNAL
CONFIG
HDMI
HDMI
HDCP
WINDOW
PASS-THROUGH
1
).
OUTPUT
OUTPUT
DECODER
1
HD WIN
HD PASS
STANDBY
DECODER
SCREEN
ShareLink Pro 1100
1 1
Extron
WFA 100
2
3
).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics ShareLink Pro WFA 100
Summary of Contents for Extron electronics ShareLink Pro WFA 100
- Page 1 ShareLink Pro WFA 100 ® INPUT OUTPUT OUTPUT HDMI DECODER SIGNAL HD WIN HD PASS CONFIG The ShareLink Pro WFA 100 is a Wi-Fi ® STANDBY HDMI HDMI HDCP DECODER SCREEN WINDOW PASS-THROUGH ShareLink Pro 1100 Miracast™ adapter that enables anyone to share content from a Windows 10 device to a ShareLink Pro device without installing any software.
- Page 2 NOTES: • The ShareLink Pro 1100 requires a local power supply. The 12 VDC 4.2 A Extron power supply (part number 28-394-07LF) is recommended. • See the ShareLink Pro 1100 User Guide for more information on Miracast, configuration options, and troubleshooting. 68-3648-50 Rev.
