Maintenance and Modifi cations, cont'd
4
From the underside of the Cable Cubby, gently push the
additional power module into the desired position at the
desired elevation. Secure the power module into position
with the included four Phillips head screws (fi gure 3-7).
Extron
Cable Cubby 600
2 Screws ea. side

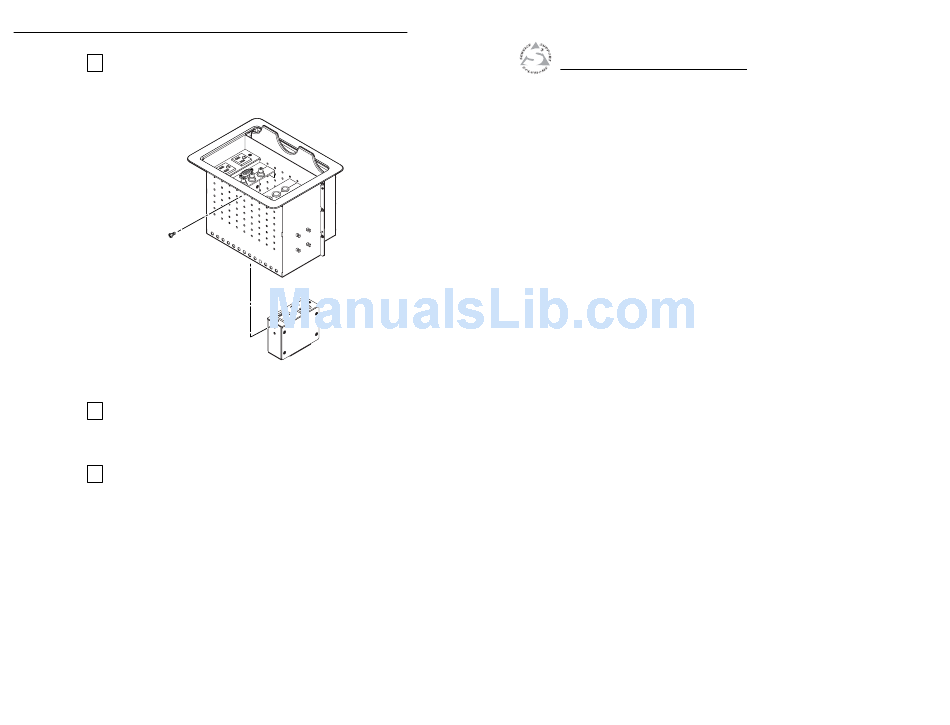

Figure 3-7 — Installing the power module
5
If desired, assemble and install replacement AAP shelf
assemblies. Remember that the cable pull function of the
Cable Cubby requires at least two AAPs. See Installing the
Cables and AAPs in chapter 2, Installation.
6
If you removed the cubby from the table, reinstall the
surface mount enclosure. See Removing and Replacing the
Cable Cubby, steps 8 through 11, earlier in this chapter.
®
3-10 Cable Cubby Products • Maintenance and Modifi cations
®
Cable Cubby Products
A
A ppendix A
Reference Information
Replacement/Modifi cation Part Numbers
Specifi cations

Cable Cubby Part Numbers

Included Parts

Routing Template Part Numbers
Top Plate Dimensions
