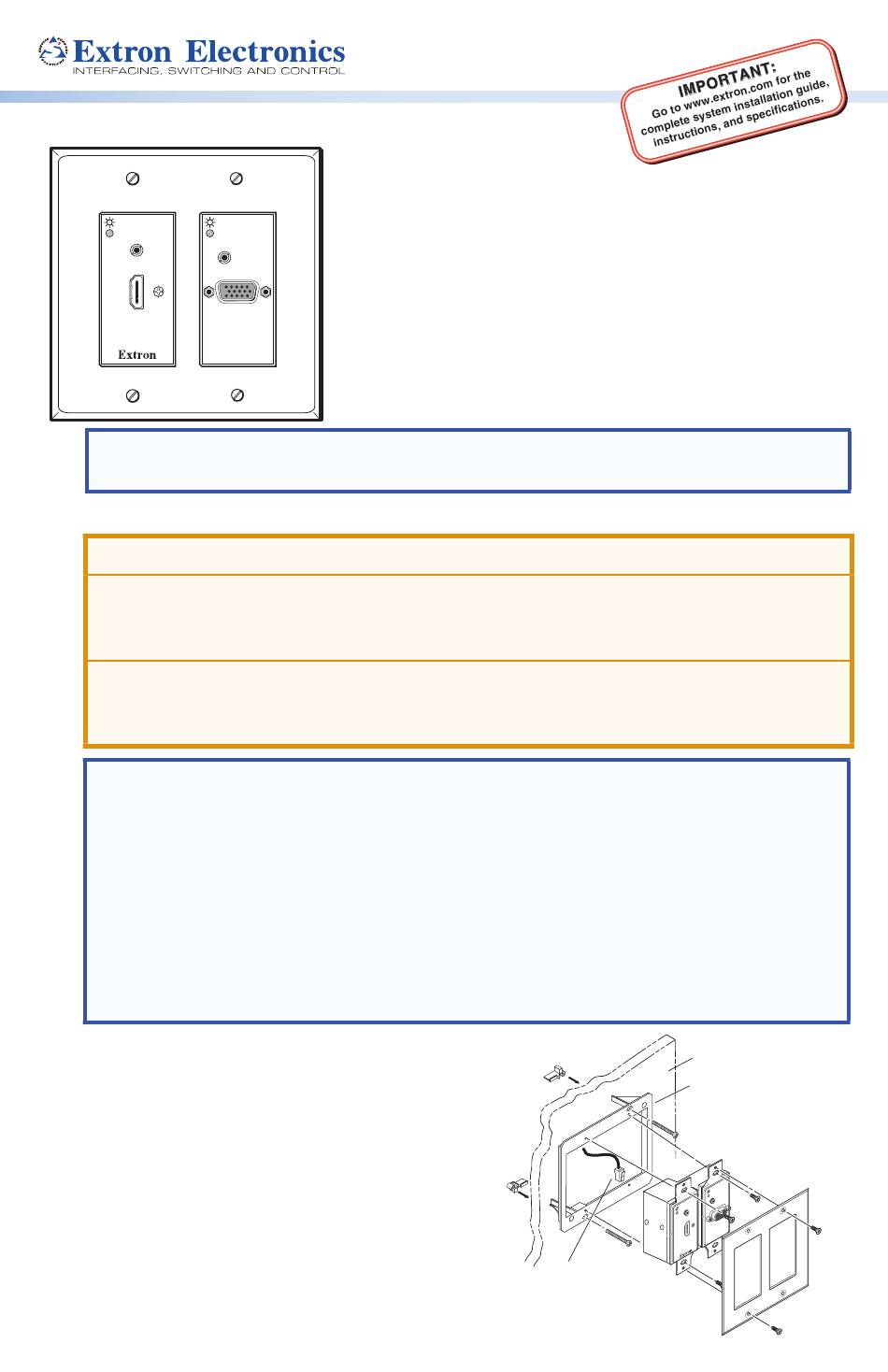

Extron electronics PVT HD RGB Installation Manuals

PVT HD RGB
AUDIO IN
HDMI IN
NOTE: This device is compatible only with the PVS 407D, running firmware version
4.00 or above. It is not compatible with the PVS 405D or other XTP/DTP devices.

Installation

ATTENTION:
Installation and service must be performed by authorized personnel.
•
L'installation et l'entretien doivent être effectuéspar le personnel autorisé
•
uniquement.
The unit must be installed in accordance with the National Electrical Code and with
•
local electrical and safety codes.
L'unité doit être installée conformément au National Electric Code.
•
Notes:
• Install the wallplate directly into the wall using the supplied mud ring or a UL
Listed 2-gang junction box (not supplied) such as a RACO 232, following the
steps below.
• If installing a junction box, allow enough depth for the wallplate and cables. Take
into consideration the bend radius of the cable, providing suitable strain relief
and maintaining the cable bend. Do not bend the cables 90 degrees.
• Conduits and conduit adapters should be used.
Use a wall box with a depth of at least 3.0 inches (7.6 cm). Alternatively, the
•
included mud ring (MR 200) can be used.

Using the mud ring or a junction box

1.
as a guide, mark the edges and cut out
the material within the marked area of
the mounting location.
Either:
2.
Insert the mud ring into the opening,
•
rotate the locking arms, and secure it
with the supplied screws,
or
Insert the wall box and secure it with
•
nails or screws.
• Installation Guide
The Extron
2-gang AV wallplate for PoleVault
WallVault
It passes HDMI/DVI, high-resolution computer video, and
AUDIO IN
analog stereo audio signals to a PoleVault digital switcher
up to 150 feet away over shielded twisted pair (XTP DTP 24)
VGA IN
cable.

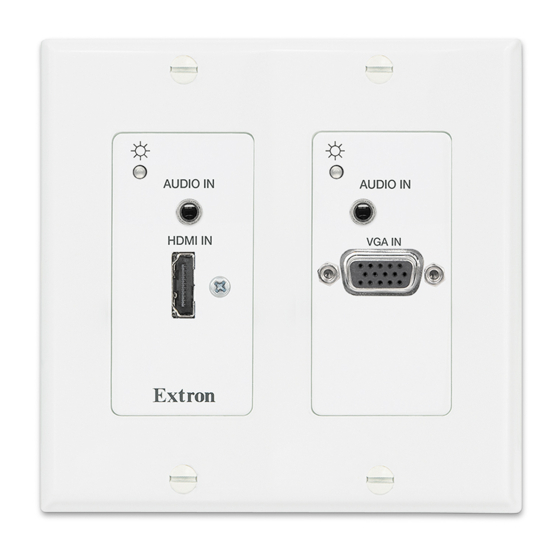

The PVT has one HDMI connector and an audio input jack
on the left front panel, and on the right front panel it has one
audio input jack and one 15-pin HD VGA connector for RGB
input signals.
PVT HD RGB is a
®
Systems that support the PVS 407D switcher.
®
STP cable
from PoleVault
, PlenumVault , and
® ®
Wall
Mud Ring
Extron
®
PVT HD RGB
Faceplate
IN
D IO
A U
A IN
IN
V G
D IO
A U
M I IN
H D
® Switcher
