Extron electronics DPH 101 4K PLUS User Manual

DPH 101 4K PLUS • User Guide

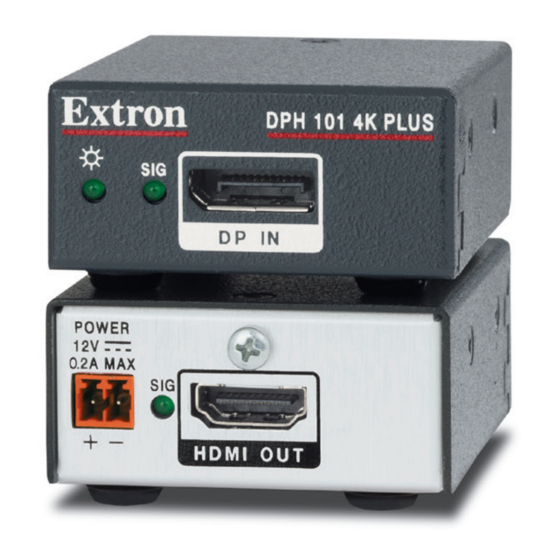

The Extron DPH 101 4K PLUS is a DisplayPort to HDMI active adapter that equalizes
DisplayPort input signals up to 12 feet (3 meters) at 4K/60 to compensate for signal loss. It
then reconditions the outgoing signal, ensuring signal integrity up to an additional 12 feet
from the output to the connected HDMI device.
The DPH 101 4K PLUS supports digital video resolutions of up to 4K/60 at 4:4:4 (or 18 Gbps)
and is DisplayPort 1.2 and HDCP 2.2 compliant.

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.
NOTES:
• This unit was tested with shielded
compliance with FCC emissions limits.
• For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related
topics, see the

Specifications

Product specifications are available on the Extron website, www.extron.com.

Features

Provides connectivity between DisplayPort sources and HDMI displays and peripherals
•
Provides active conversion of DisplayPort signals to HDMI
•
• Equalizes incoming DisplayPort signals up to 12 feet (3 meters) to compensate for signal loss due to low quality
cables or marginal sources
Reconditions outgoing HDMI signals to ensure signal integrity up to 12 feet (3 meters) to the connected device
•
Supports computer and video resolutions up to 4K/60 @ 4:4:4 with data rates up to 18 Gbps
•
• Complies with VESA Interoperability Guidelines
• HDCP compliant
Passes EDID information from HDMI display to the source
•
Supports 8-channel LPCM and HBR audio
•
• Supports Dual Mode DisplayPort, Mini-DisplayPort, and Thunderbolt sources with appropriate cables or adaptors
• LED indicator for signal presence and power — Provides visual indication of system status for real-time feedback and
monitoring of key performance parameters
Compact 1 inch (2.5 cm) high, 2.2 inch (5.6 cm) wide enclosure for discreet placement and mounting in space-
•
constrained environments — Includes fabric hook and loop tape for easy installation in any application
• Shares a 12 VDC power supply with another Extron product; energy-efficient external universal power supply also
available — Provides worldwide compatibility, low power consumption, and reduced operating costs
I/O c
ables on the peripheral devices. Shielded cables must be used to ensure
"Extron Safety and Regulatory Compliance Guide" on the Extron website.
1
